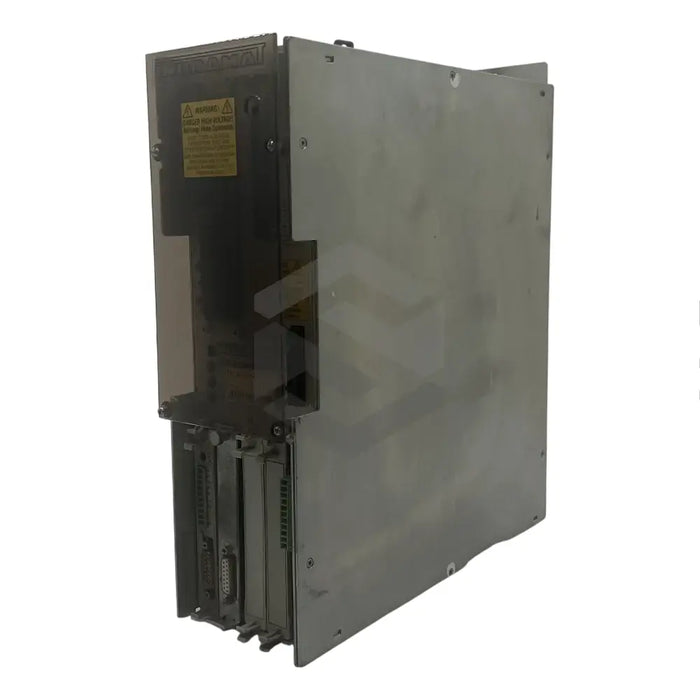

C image of DDS02.1-W025-DA10-00 | Main (Front Left)

DDS02.1-W025-DA10-00

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-W025-DA10-00, developed by Bosch Rexroth Indramat, is a drive controller that requires careful, dust-free, shock-free storage and transportation without any load. The device is equipped with a Bb contact which signals a steady Ready status, indicating its readiness to output power. It uses an IKS0391 service cable for its commissioning and comes with AS+ and AS- control inputs rated at 1.5W power and a voltage of 20VDC to 30VDC. These control inputs can be used to activate a starting lockout that does not function to bring moving axes to a halt. The X2 connector allows connectivity to a RS 232 serial interface. Its analog diagnostic outputs can generate drive internal variables for testing, with a 10VDC voltage output and a current rating of 4mA. The DDS02.1-W025-DA10-00 is constructed to support vertical installation and is suitable for storage and transportation at temperatures between -30°C and 85°C. Caution must be exercised to avoid operating the unit with an unregulated power supply.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS02.1-W025-DA10-00

Environment Condition for Storage

Shock-Free Dry Environment Free of Dust

Special Feature

Bb Contact

Charging Medium

Charging Resistor

Service Cable Require for Commissioning

IKS0391

Maximum Cable Length for Feedback

75m

Control Inputs

AS+ and AS- with 1.5W Power Rating and 20-30VDC Voltage Rating

Starting Lockout Activation

20-30VDC Voltage Between Control Inputs

Connector for RS 232 Serial Interface

X2 Connector

Analog Diagnostic Outputs

10VDC Output Voltage and 4mA Current Rating

Max. Allowable Relative Humidity

95%

Max. Absolute Air Humidity

25g/m3

Incremental Position Interface Slot

Second Slot, Capable of Transmitting Square Wave Signals

Storage and Transportation Temperature

-30°C to 85°C

Installation Orientation

Vertical

Terminals Tightening Torque

3Nm at L-, L+ and PE terminals

Power Supply Requirement

Regulated Power Supply Only
