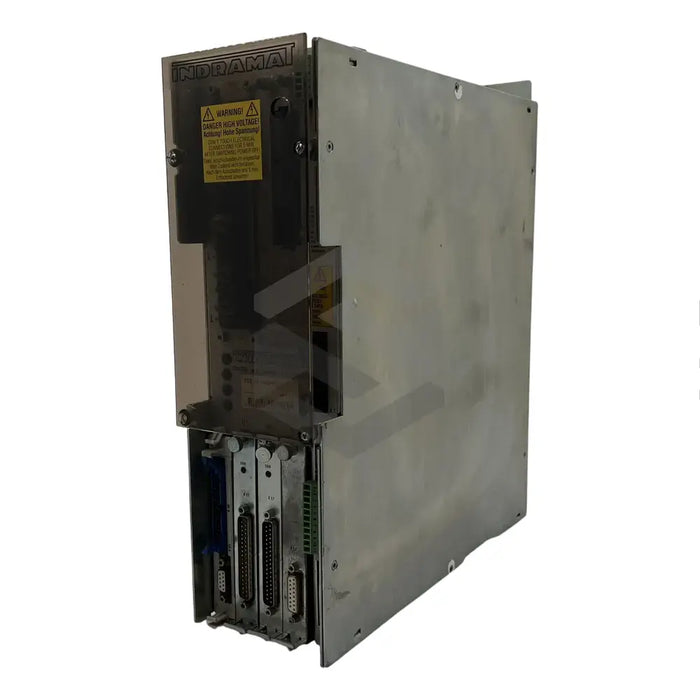

C image of DDS02.1-W025-DL05-00 | Main (Front Left)

DDS02.1-W025-DL05-00

by Bosch Rexroth Indramat
$1,855.89 - $1,855.89
$1,855.89
$1,855.89 - $1,855.89
$1,855.89

In Stock, Ships 1 - 3 Days

The DDS02.1-W025-DL05-00 is a drive controller produced by Bosch Rexroth Indramat, belonging to the DDS series. The 25 Amps output device employs air-cooling technology, paired with the possibility of forced air cooling for improved efficiency. It operates on digital servo feedback to manage motor functions, such as torque, speed, and position. This device, possessing a modular design, can be adjusted to meet various requirements. The controller has an integrated single-axis positioning communications module for stand-alone single-axis positioning. It can host up to 3000 program blocks for specific functions or sequences. The software module includes drive firmware and parameters, allowing easy configuration and commissioning, and can be transferred in case of drive failure. It also offers three slots for optional additions like input/output interfaces and ARCnet interface. The DC bus carries a nominal voltage of 300 Volts DC and the acceptable temperature range is 0 to 45 degrees Celsius. The enclosure is IP20 rated.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

DDS

Model Number

DDS02.1-W025-DL05-00

Cooling Method

Air cooled, natural convection, forced cooling with fans and blowers

Rated Output

25 Amps

Function ID and Version

05-00

Motor Feedback Technology

Digital servo feedback

Architecture

Modular, adaptable

Pre-Installed Module

Single-axis positioning communications module

Programmable Control

Up to 3000 program blocks

Software Module

Contains drive firmware and operating parameters, removable and transferable

Optional Plug-In Slots

Three available

Available Plug-Ins

Input/output interfaces, incremental position interface, summing input interface, ARCnet interface

DC Bus Voltage

Nominal 300 Volts DC with 15% tolerance

Operating Temperature Range

0 to 45 degrees Celsius

Enclosure Rating

IP20.
