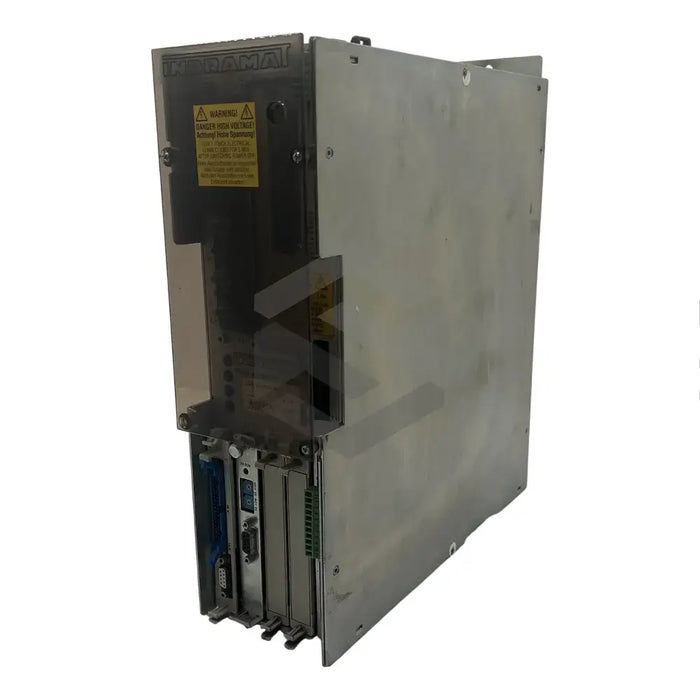

C image of DDS02.1-W025-DL40-01-FW | Main (Front Left)

DDS02.1-W025-DL40-01-FW

by Bosch Rexroth Indramat
$3,744.83 - $3,744.83
$3,744.83
$3,744.83 - $3,744.83
$3,744.83

In Stock, Ships 1 - 3 Days

The DDS02.1-W025-DL40-01-FW is a fast-reacting drive controller produced by Bosch Rexroth Indramat. Perfect for commercial applications such as conveyor belts and spindle drive systems, this controller regulates power input to a motor, adjusting positions and velocities of machine parts based on servo motor feedback. The controller pairs with supply units with regulated DC 24V voltage, and should only be activated after compliance with EC directive 89/392/EWG is confirmed. Tactile contact with electrical points during operation is unsafe and malfunctions are unlikely due to the incorporated monitoring devices. The optimum installation elevation is up to 1000m, operating within an ambient temperature of 0-45 degrees Celsius. The controller, weighing 7.5 kg, is equipped with an air cooling system, facilitates a maximum energy loss of 260W, and maintains a 25 Ampere rated current. It communicates through a single-axis position control module and operational firmware requiring separate orders, and is IP20 protection category compliant.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Function

Adjust Input Power to a Motor

Intended Use

Commercial

Connectivity

DC 24V Voltage Supply Unit

Maximum Installation Elevation

1000m

Ambient Operating Temperature

0 to 45 Degrees Celsius

Energy Loss in Control Cabinet

260W

Cooling System

Air-Cooling Model

Rated Current

25 Amperes

Motor Feedback

Digital Servo Feedback

Mass

7.5 Kilograms

Communication Module

Single-Axis Position Control

Protection Category

IP20

Compliance

EC directive 89/392/EWG (machine directives)
