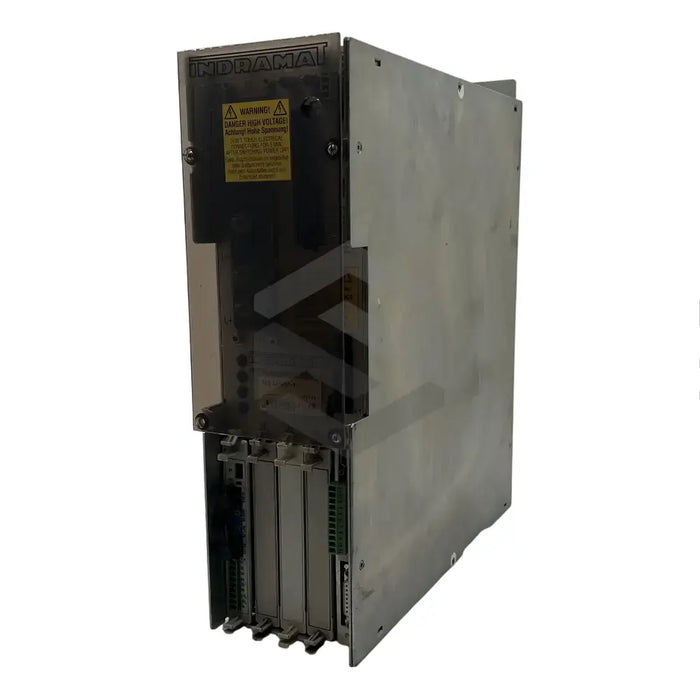

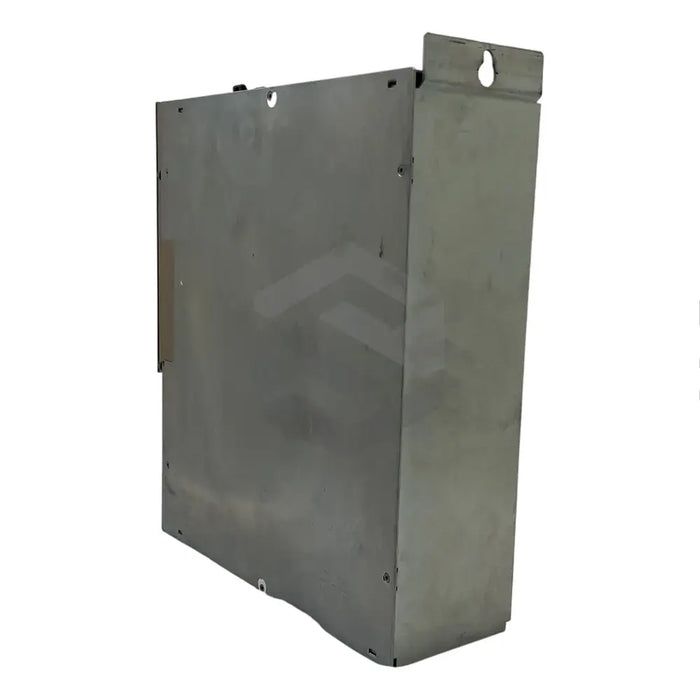

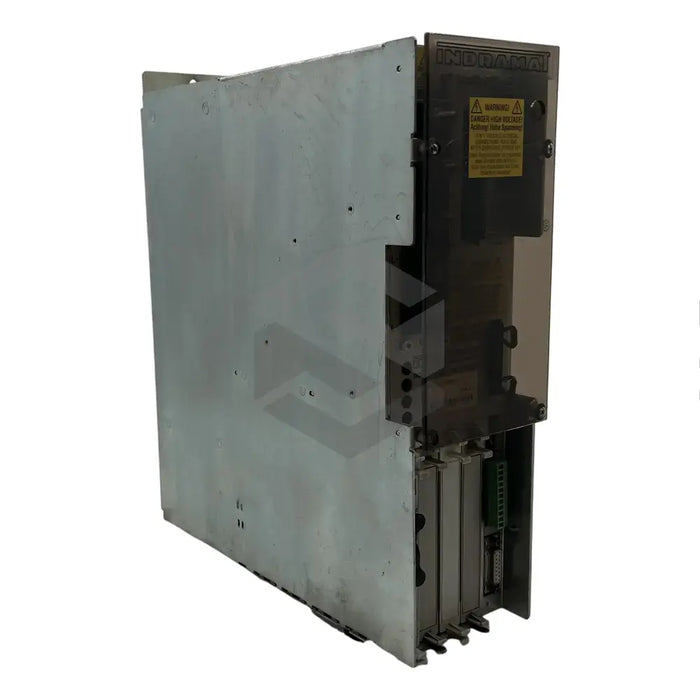

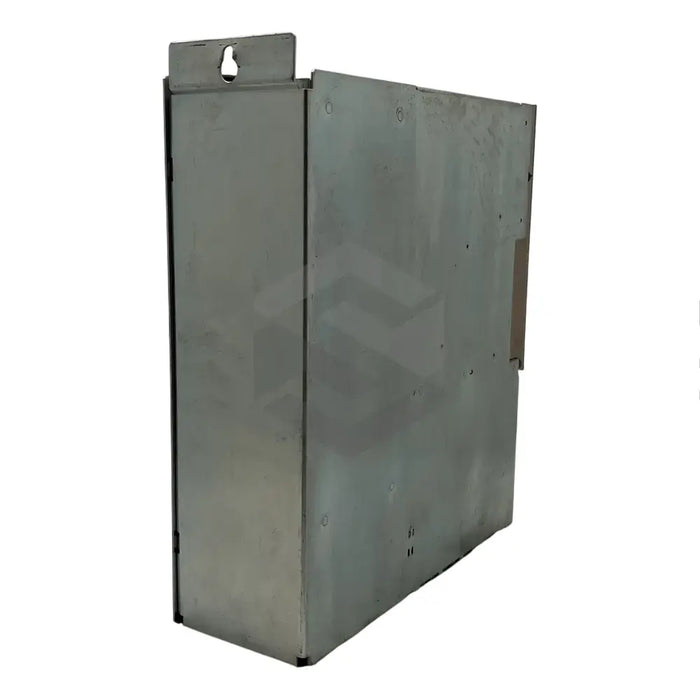

series image of DDS02.1-W025-DS01-01-FW

DDS02.1-W025-DS01-01-FW

by Bosch Rexroth Indramat
$9,248.99 - $9,248.99
$9,248.99
$9,248.99 - $9,248.99
$9,248.99
In Stock, Ships 1 - 2 Days
Bosch Rexroth Indramat introduces DDS02.1-W025-DS01-01-FW, a sophisticated drive controller that's integral to their modern, automated motion control offerings. Used in various applications such as printing and packaging machines, transfer facilities, and robotics, it features an RS-232 communication interface and is designed for a 25A current consumption at rated load. It operates optimally between 0-45°C and can withstand a maximum temperature of +55°C, though data loss may occur. The necessary firmware for accurate operation is not included in the package but is available separately. Notably, a ground connection port is provided (required before motor start), and a fault reset key allows for device resetting. With multiple inspection stages, product quality is high. Limit of operation is up to an altitude of 1000m above sea level and incorporates features like drive lockout control and RS-232 interface connection for VT-100 terminal or PCs among others.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model: DDS02.1-W025-DS01-01-FW
  • Communication Interface: RS-232
  • Current Consumption: 25A
  • Rated Load Operation Temperature Range: 0 to +45 degree Celsius
  • Maximum Permissible Temperature: +55 degree Celsius
  • Ground Connection: Seperate port at back side
  • Fault Reset Key: Provided
  • Maximum Operational Altitude: 1000 meters
  • Drive Lockout Control: Available at connection point X3
  • RS-232 Interface Connection: At terminal X2 for VT-100 terminal or PC
  • Motor Power Cables Connection Ports: A1, A2, and A3
  • Firmware: Can be ordered separately from supplier
  • Quality Assurance: Passes through various inspection stages
  • Function ID: Fixed by Indramat
