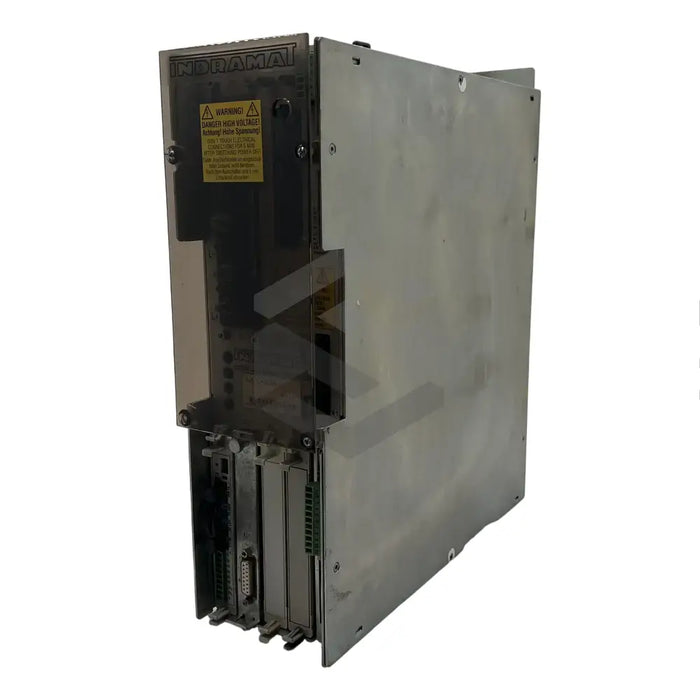

C image of DDS02.1-W025-DS03-00 | Main (Front Left)

DDS02.1-W025-DS03-00

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth Indramat's DDS02.1-W025-DS03-00 drive controller is a high-voltage, precision device for controlling industrial processes. It features four bottom slots for plug-in modules and a top slot for the software module, all ensuring versatile implementation. The unit uses a DC bus voltage of 300V +/-15% and tolerates installation elevations up to 1,000m above sea level. However, it does not protect against unintentional manual access. Cooling during operation is enforced through bottom air intake and top air discharge. For safety, all connections must be removed for high-voltage testing or if interference is detected. The controller can be connected to a PC or a VT-100 terminal via an RS-232 interface and its temperature can be monitored via an X6 connector. Bundled with the E-DDS2 electrical connection accessories kit, this drive controller simplifies connection with one line for the protective conductor and three lines for the motor power.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

DDS02.1-W025-DS03-00 Drive Controller

Electrical Voltage

High

Function Mode

Standstill

Plug-in Module Slots

4

Software Module Slot Position

Top Slot

DC Bus Voltage

300V +/-15%

Installation Elevation

Max 1000m above sea level

Protection Against Intentional Access

Not supported

Airflow During Operation

In at Bottom and Out at the top

Analog Signal Routing

Shielded leads

X6 Connector Use

Motor Temperature Monitoring

Interface

RS-232 for PC or VT-100 terminal

Power Cable Components

One line for protective connection and three lines for motor power

X1 Connector Use

Supplies required control electronics

Auxiliary Equipment

E-DDS2 electronic connection accessories kit.
