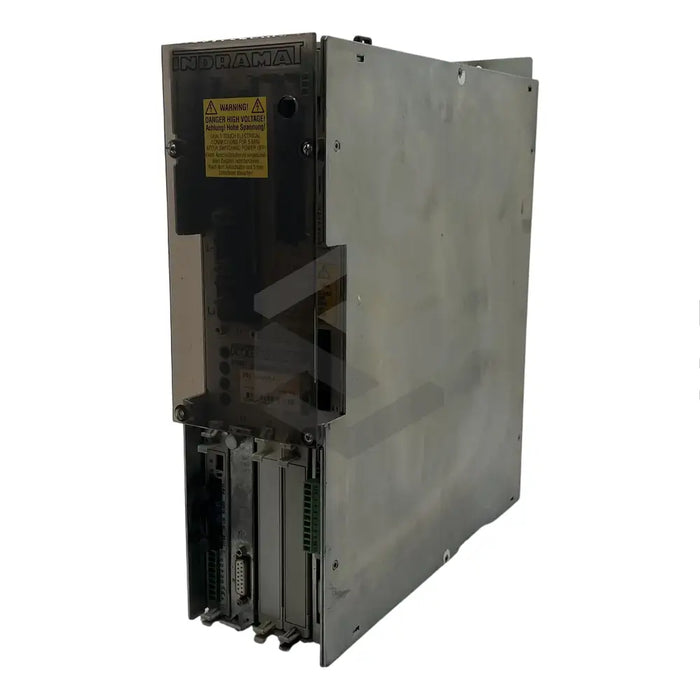

C image of DDS02.1-W025-DS03-01 | Main (Front Left)

DDS02.1-W025-DS03-01

by Bosch Rexroth Indramat
$4,879.34 - $4,879.34
$4,879.34
$4,879.34 - $4,879.34
$4,879.34

In Stock, Ships 1 - 3 Days

The Bosch Rexroth DDS02.1-W025-DS03-01 drive controller is equipped with a ground motor connection, integrated DC bus connections, a fault reset key, a H1 status LED display for error messages, and two diagnostic outputs for internal drive variables testing. This device requires specific packaging for safe transportation or storage and comes ready to receive power, signaled by a closed ready-operate contact. Additionally, it offers a starting lockout feature valuable in preventing accidental motor startup. Its exclusive use is recommended with motors featuring digital servo feedback, and it uses the manufacturer's feedback cables restricted to a 75m limit. This controller performs within 0-45°C ambient temperature, features the function ID version code 01, is cooled by internal control cabinet airflow and may necessitate a large control cabinet for installations. The drive parameters are stored in its software module.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DDS02.1-W025-DS03-01

Connections

Ground connection for the motor, Two DC Bus rails

Features

Fault reset key, H1 Status Display, Two Analog Diagnostic Outputs

Output Voltage

10VDC

Current Load Capacity

4mA

Ready-to-operate Signal


Bb ready to operate contact closure

Starting-Lockout Activation

20VDC to 30VDC voltage between AS+ and AS- input terminals

Compatible Motor Feedback

Digital Servo Feedback

Feedback Connector

X4 Connector

Maximum Feedback Cable Length

75m

Operating Temperature

0°C to 45°C (with rated data)

Function ID Version Code

01

Cooling Method

Airflow inside the control cabinet

Parameter Storage

Software Module
