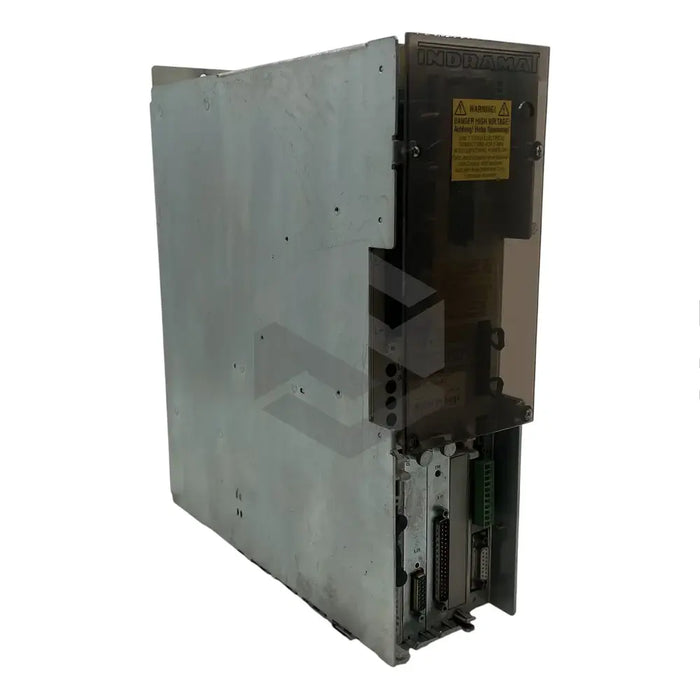

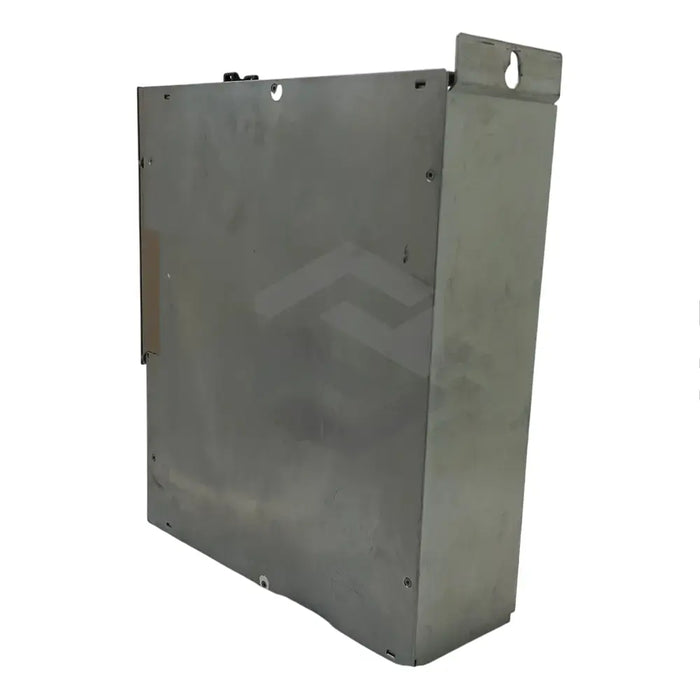

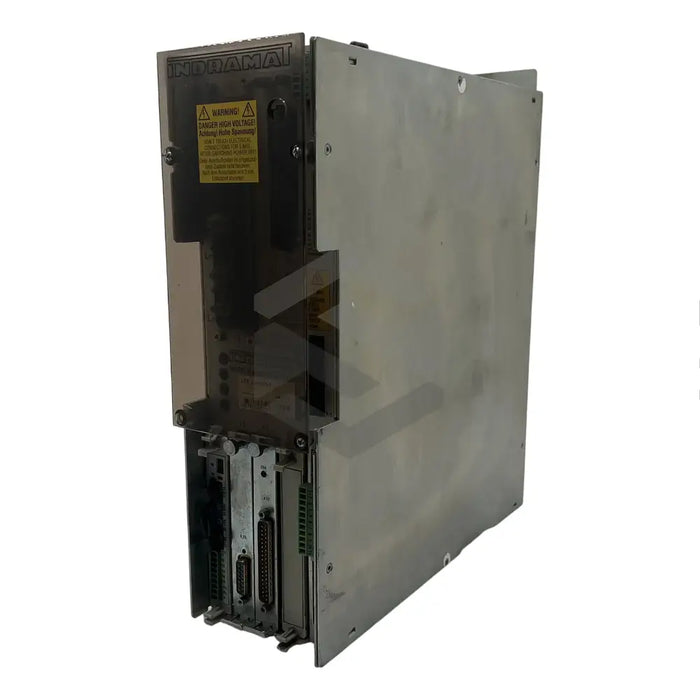

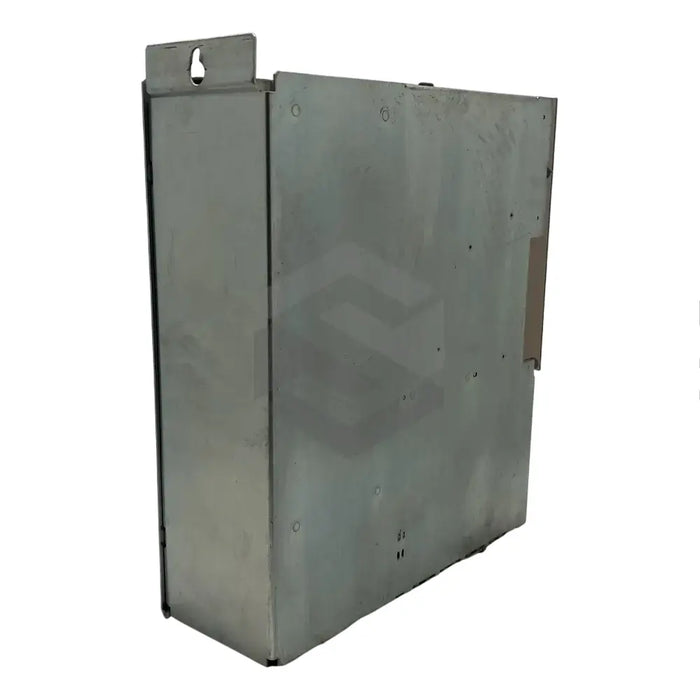

C image of DDS02.1-W025-DS22-02-FW | Main (Front Left)

DDS02.1-W025-DS22-02-FW

by Bosch Rexroth Indramat
$7,656.01 - $7,656.01
$7,656.01
$7,656.01 - $7,656.01
$7,656.01

In Stock, Ships 1 - 3 Days

The DDS02.1-W025-DS22-02-FW, crafted by Bosch Rexroth Indramat, is a DDS drive controller typically employed in machine tools, textile machines, printers, packaging machinery, and various handling equipment. Designed for commercial use, it requires installation in a control cabinet on site. An imperative precautionary measure is that only skilled personnel handle its installation and maintenance. It is also necessary to ensure that the drive controller corresponds with the motor feedback data type codes. Carrying a DC bus voltage of 300 volts and a steady current of 25 Amps, its current consumption at DC +/- 15V is 150 mA (200 mA for DC +24V). Energy loss amounts to 170 W. Its motor operates a digital servo feedback system consuming virtually no current at DC+/-15 V (40 mA at DC+24V). Supporting a SERCOS communication interface and firmware version 02, it also includes various accessory kits. Weighing approximately 7.5 kg, it has an IP20 protective rating and functions best at ambient temperatures between 0 to 45 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

DDS Drive Controller

Installation Location

Control Cabinet of Machines

Application

Machine Tools, Textile, Printing and Packaging Machinery, Robotics and Handling Machines

Safety Recommendation

Installation and Maintenance by Trained and Qualified Personnel

Motor-Controller Compatibility

Motor Feedback Data Type Codes Should be in Agreement with Drive Controller

DC Bus Voltage

300 Volts

Rated Peak Current

25 Amps

Continuous Current

25 Amps

Current Consumption-Basic Unit at DC +/-15 V

150 mA

Current Consumption-Basic Unit at DC +24 V

200 mA

Energy Loss

170 W

Servo Feedback System

Digital

Current Consumption-Servo Feedback System at DC +/-15 V

Negligible

Current Consumption-Servo Feedback System at DC +24 V

40 mA

Communication Module

SERCOS Interface

Firmware Version

02

Accessory Kits

E..-DDS 2, Connector Kit S..-DDS 2, Electrical and Mechanical Kits

Weight

7.5 Kilograms

Protection Category

IP20 (EN60529 / IEC529)

Permissible Ambient Temperature Range

0 to 45 Degrees Celsius
