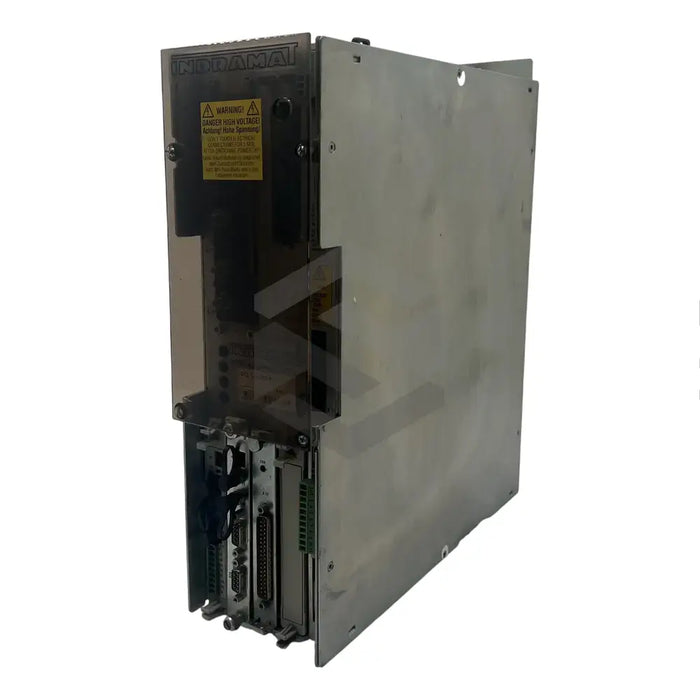

C image of DDS02.1-W025-DS24-04-FW | Main (Front Left)

DDS02.1-W025-DS24-04-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat DDS02.1-W025-DS24-04-FW is a DDS drive controller made for inclusion in commercial machinery like machine tools, handling machines, and packaging and textile machinery. It should be operated exclusively by trained personnel due to its high voltage components. The motor feedback and controller data type codes should coincide for optimum functionality. This controller operates at a DC bus voltage of 300 Volts with a constant 25 Amps for peak and continuous current. The unit's current consumption is 150 mA at DC +/-15 V and 200 mA at DC +24 V, while its energy loss is 170 W. It features a digital servo feedback system, a SERCOS communication module, and updated firmware along with optional accessory kits. The product weighs approximately 7.5 kilograms and has an IP20 protection rating. It operates best at temperatures from 0 to 45 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

DDS Drive Controller

Model

DDS02.1-W025-DS24-04-FW

Install Location

Control Cabinet of Machines

Applications

Machine Tools, Textile, Printing and Packaging Machinery, Robotics, Handling Machines

DC bus Voltage

300 Volts

Rated Peak Current

25 Amps

Continuous Current

25 Amps

Current Consumption (basic unit at DC +/-15 V)

150 mA

Current Consumption (basic unit at DC +24 V)

200 mA

Energy Loss

170 W

Feedback System

Digital Servo

Current Consumption (motor at DC +/-15 V)

Negligible

Current Consumption (motor at DC +24 V)

40 mA

Interface

SERCOS

Firmware Version

04

Accessory Kits

E..-DDS 2, Connector kit S..-DDS 2, Electrical and Mechanical kits

Weight

7.5 Kilograms

Protection Category

IP20

Permissible Ambient Temperature Range

0 to 45 degrees Celsius
