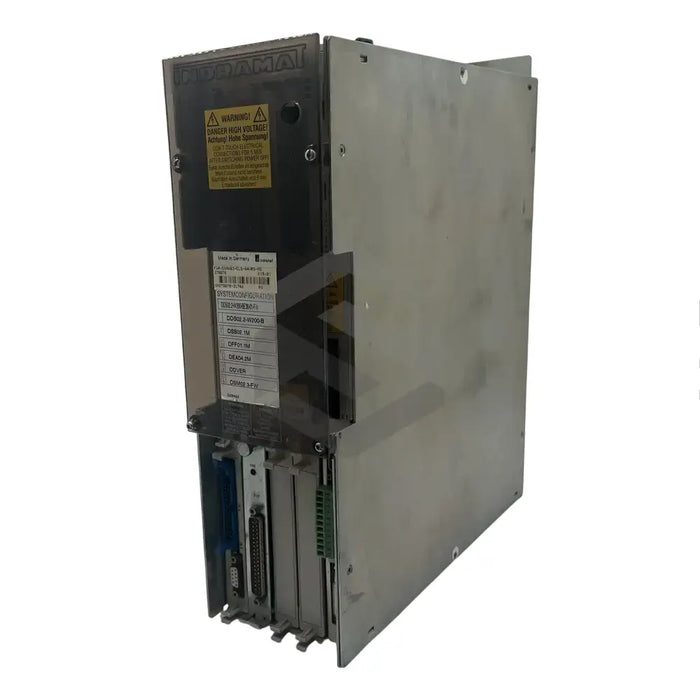

C image of DDS02.1-W025-RL01-00 | Main (Front Left)

DDS02.1-W025-RL01-00

by Bosch Rexroth Indramat
$1,855.89 - $1,855.89
$1,855.89
$1,855.89 - $1,855.89
$1,855.89

In Stock, Ships 1 - 3 Days

The DDS02.1-W025-RL01-00 is a single-axis positioning module produced by Bosch Rexroth Indramat. This model is used alongside synchronous (MKD, MDD) and linear (LAR, LAF) motors, capitalizing on a modular design for easy installation with specified devices. The firmware, which houses the operating software and parameters, is tailored to the type code and comes with the controller, requiring a copy module before installation. The DLC01.1 module containing up to 3000 program blocks is positioned in the U1 slot of the controller. The controller utilizes external air for cooling and requires a TVM or KDV power supply unit. Operating at either +24 VDC or ±15VDC, it consumes a rated power of 500 mA or 150 mA respectively. The controller includes a basic unit, a command communication card, additional plug-in modules, firmware modules, and rating plates, composed of 5 slots for drive controller configuration. This product is available at Servo Supplier.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product type

DDS02.1-W025-RL01-00 Single-Axis Positioning Module

Installation

Installable with devices specified in DDS user manual

Main use

Operating synchronous (MKD, MDD) and linear (LAF, LAR) motors

Firmware

Must be ordered according to type code, supplied with controller

Single-axis positioning module

DLC01.1, installed in U1 slot of drive controller, can be programmed with up to 3000 program blocks

Feedback

Resolver feedback for controlling motor speed

Cooling system

Uses external air for maintaining housing temperature

Power supply unit

Operated with TVM or KDV, supplies +24 VDC or ±15VDC operating voltages

Operating voltages

+24 VDC (500 mA rated power) and ±15 VDC (150 mA rated power)

Components

Basic unit, command communication card, auxiliary plug-in modules, firmware modules, rating plates

Basic Unit

Features 5 plug-in slots for drive controller configuration
