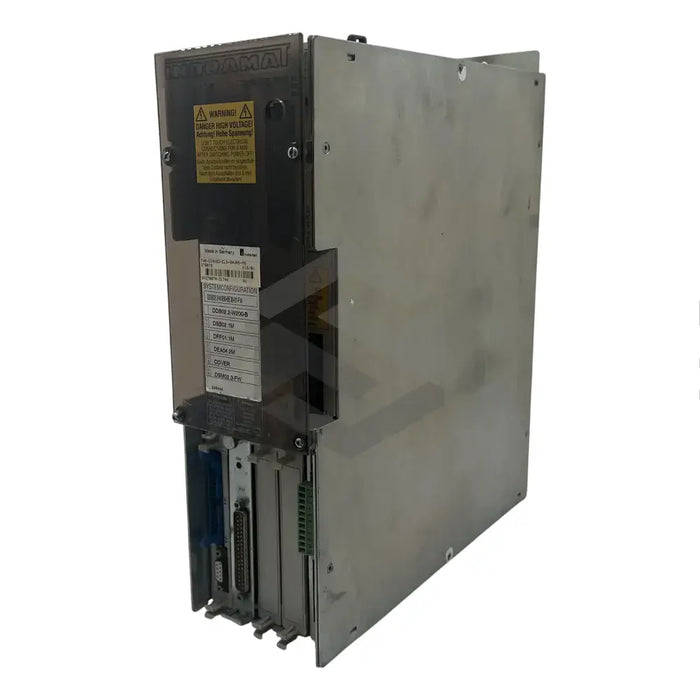

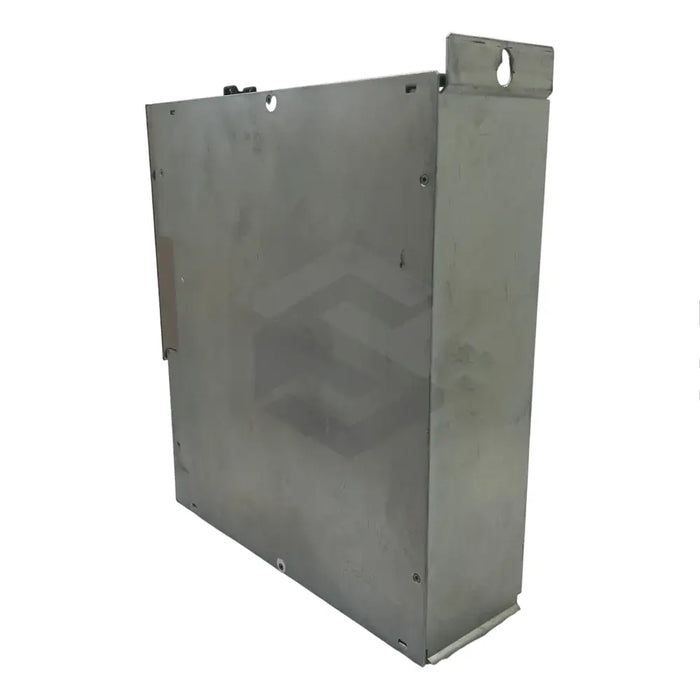

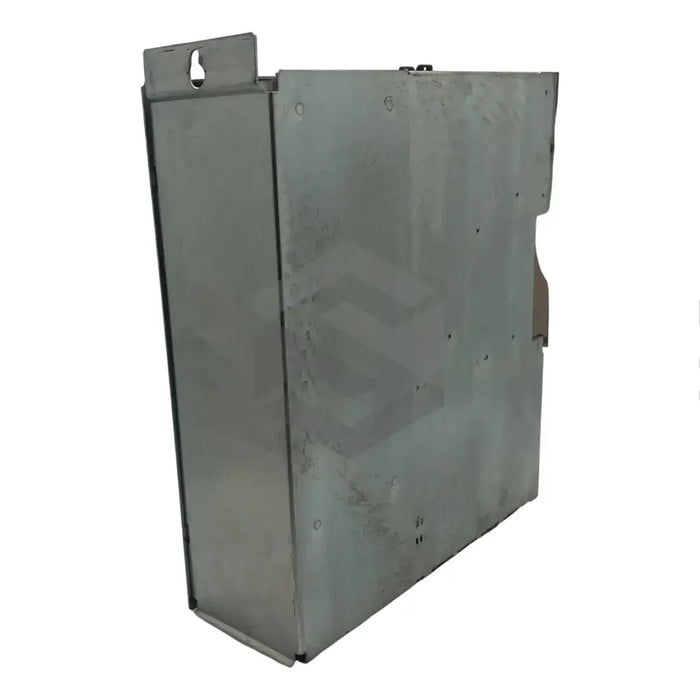

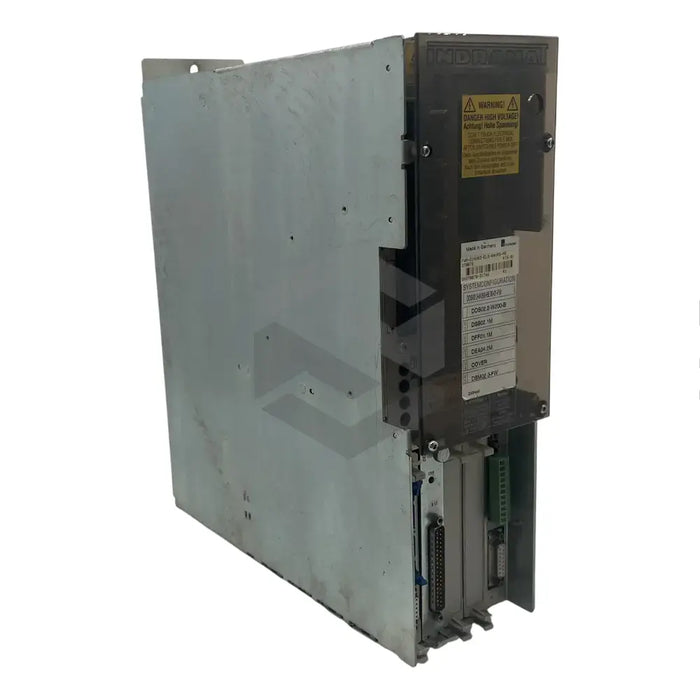

series image of DDS02.1-W025-RL01-01-FW

DDS02.1-W025-RL01-01-FW

by Bosch Rexroth Indramat
Request a quote
The DDS02.1-W025-RL01-01-FW is a top-tier drive controller crafted by Bosch Rexroth Indramat, a global retailer of automation components. This device has been skilfully engineered to control AC synchronous and linear motors delivering exceptional accuracy. Working in conjunction with specified motors and modules, it establishes a fast-acting drive control system. The controller uses a constant current of 25 A with a DC-link voltage of +24 V and ±15 V. The device is a single-axis positioning module, housing a DLC01.1 single-axis module in its U1 slot and a DEA04.1 input/output module in its U2 slot to exchange binary signals with PLC systems. This model and its firmware are customizable to your specifications. It operates in temperatures ranging from 0 to +45 C and uses external air to manage heat. The controller is encased in an IP20-rated enclosure and should be stored between -30 and +85 C. The device (DDS02.1-W025-RL01-01-FW) can be purchased through Servo Supplier.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: DDS02.1-W025-RL01-01-FW
  • Use: Operating AC synchronous and linear motors
  • System Type: Rapid-response drive control system
  • Current Operation: Continuous current of 25 A
  • DC-Link Voltage: +24 V and ±15 V
  • Positioning Module: DLC01.1 single-axis
  • Input/Output Module: DEA04.1
  • Empty Slots: U3 and U4
  • Temperature Range for Operation: 0 to +45 degree Celsius
  • Temperature Range for Storage: -30 to +85 degree Celsius
  • Protection Category: IP20
  • Feedback System: Resolve motor for relative indirect position detection
  • Air Cooling: External air used to control ambient temperature.
