DDS02.1-W050-DL08-01-FW

Request a quote

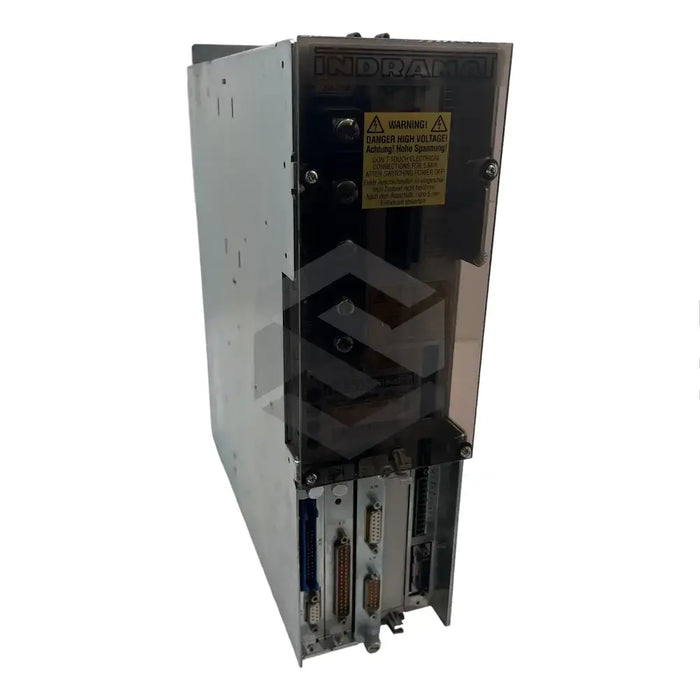

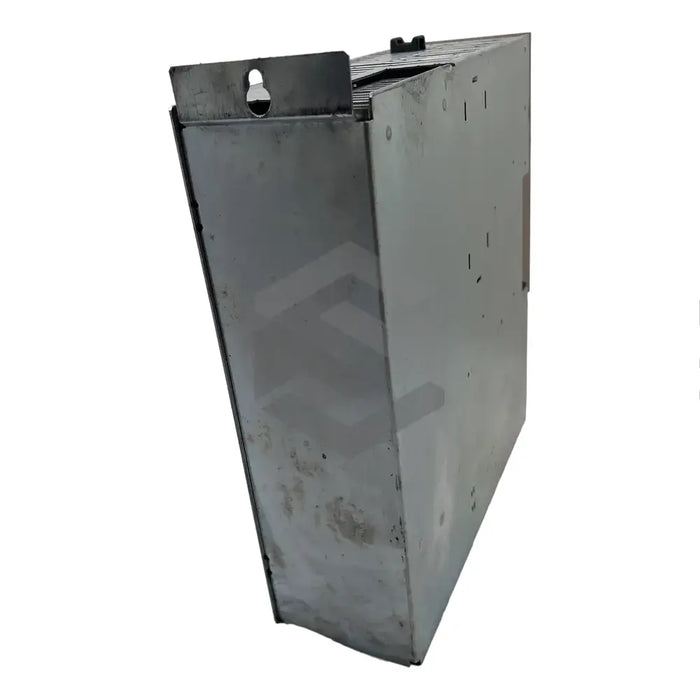

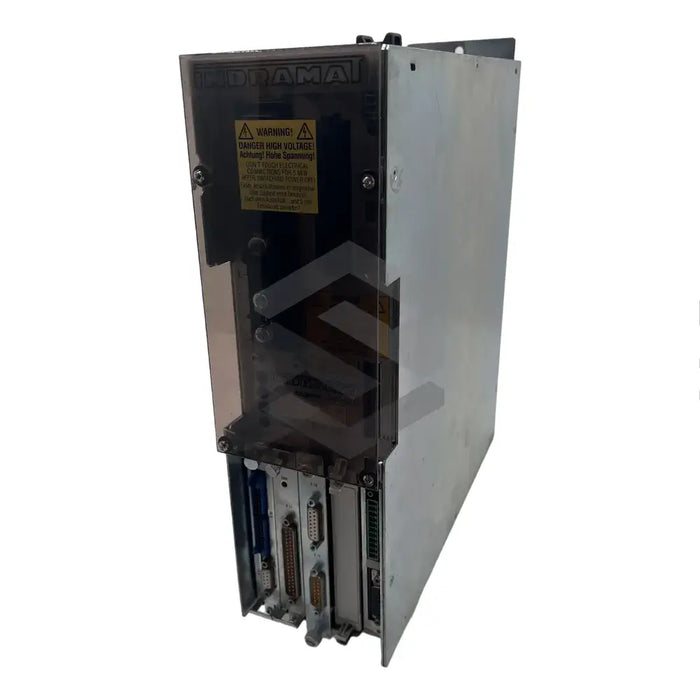

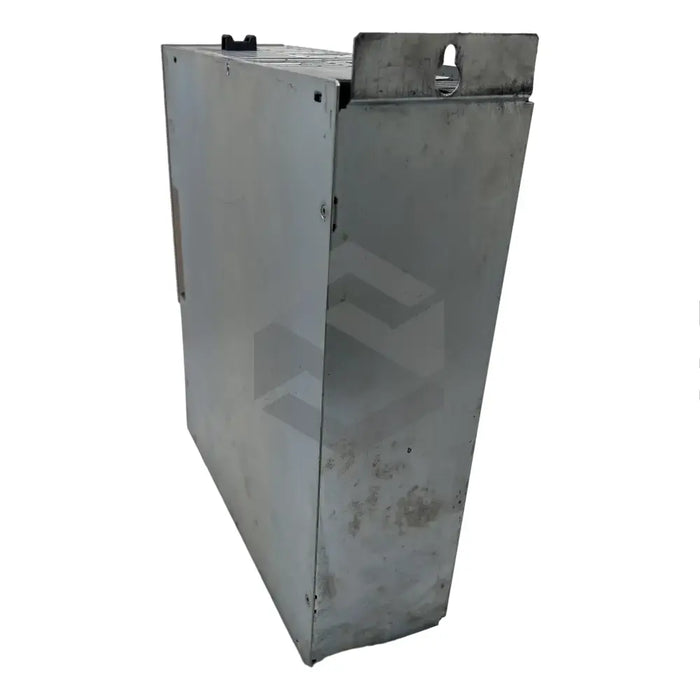

The Bosch Rexroth Indramat DDS02.1-W050-DL08-01-FW is a single-axis positioning drive controller featuring up to 3,000 programmable program blocks for motion sequences. Traditionally delivered with empty slots in the basic unit, the DDS02.1-W050-DL08-01-FW possesses a DC bus voltage capability of +/-15% at 300V, set via an overload factor during commissioning. Weighing roughly 7.5kg, the controller's operating parameters take into account combined current consumption of plug-in modules, the basic unit, and motor feedback. It can operate optimally even in temperatures as high as 55°C. Avoid operating near remote control, radio or high-frequency equipment. Always ensure safe handling using appropriate tools to prevent damage. The unit consists of a status display and a software module in slot five, a DC bus rails connection to adjacent units, and a motor feedback connection through its X4 connector. The power cable should not exceed 75m in length.
30 Day Warranty
Technical Specifications
  • Product Name: DDS02.1-W050-DL08-01-FW
  • Manufacturer: Bosch Rexroth Indramat
  • Line Code: 1
  • Weight: 7.5kg
  • Max Operational Temperature: 55°C
  • Assembly Process: Mounted After Removing Faceplate
  • Power Section: DC bus voltage of 300V +/-15%
  • Slots: Empty slots by default in basic unit
  • Designation: Single Axis Positioning Module
  • Positioning Module Program Blocks: Up to 3000
  • Basic Unit Current Consumption: Determined by sum of plug-in modules and motor feedback
  • Installation: Requires appropriate lifting equipment and tools
  • Functionality: Determined by the device
  • Status Display: Present
  • Connection: Connected to adjacent unit using DC bus rails
  • Software Module Slot: Fifth
  • Motor Feedback Connection: Established through X4 connector
  • Power Cable Length: Max 75m for AC motor connection
