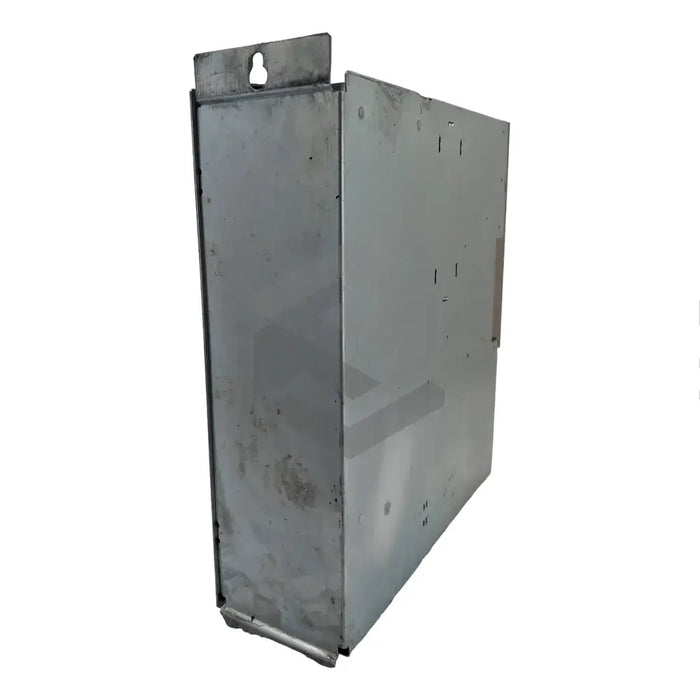

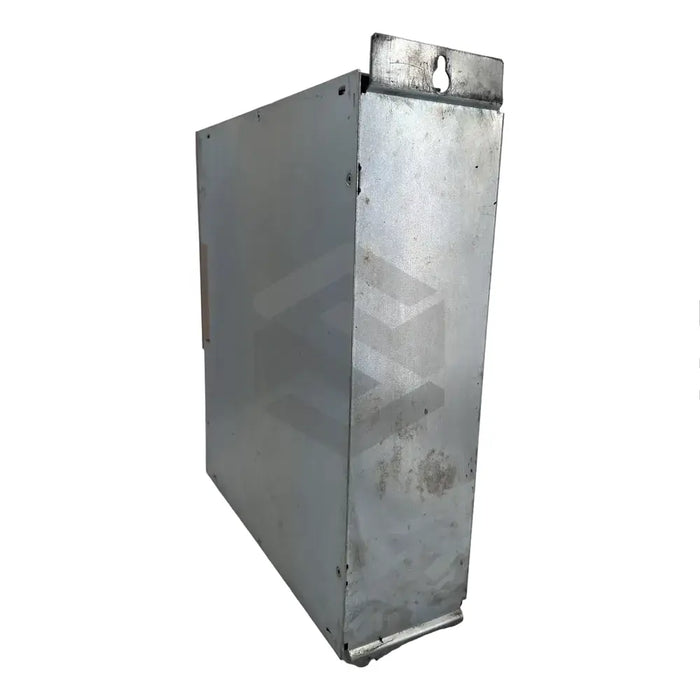

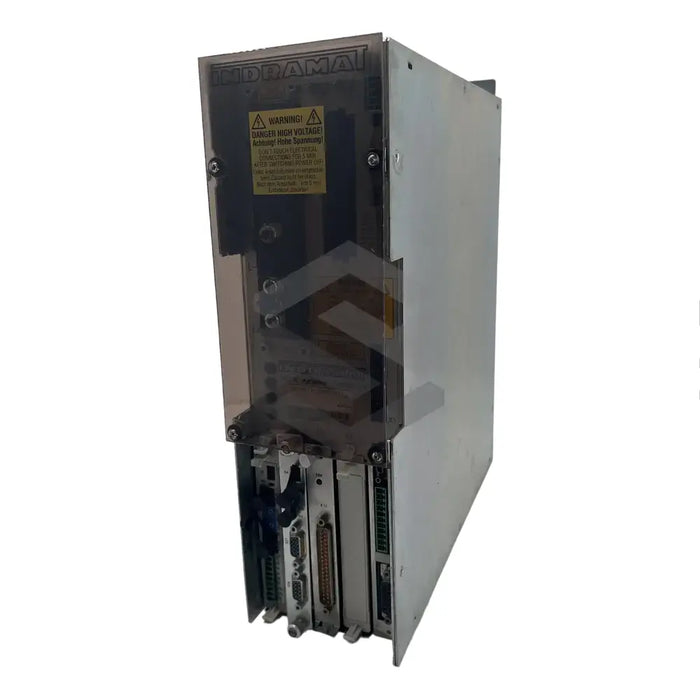

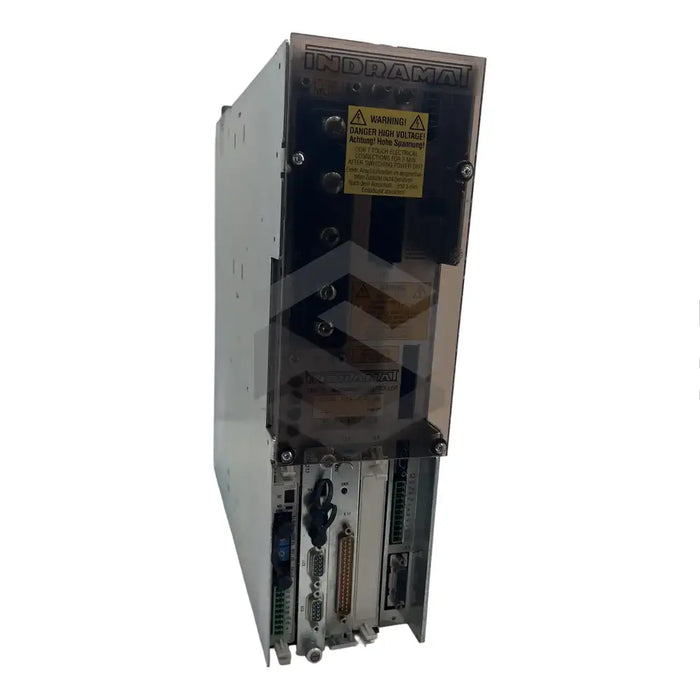

series image of DDS02.1-W050-DS24-04-FW

DDS02.1-W050-DS24-04-FW

by Bosch Rexroth Indramat
Request a quote
The DDS02.1-W050-DS24-04-FW, a component of the DDS series, is a modular drive controller engineered by Bosch Rexroth Indramat for industrial motor control. Its design includes slots for a designated SERCOS command communication module, which operates over a fiber-optic network, and a software module containing the drive firmware and operating parameters. Note, the firmware must be purchased separately from the hardware. The software can also be transferred to other modules or shifted to a replacement drive if necessary. The drive has a rated output of 50 Amps, under specific ambient conditions, and employs digital servo feedback for performance monitoring while utilizing convective cooling. It has an IP20 protection category, thus requiring placement within a control cabinet due to its unprotected housing. It measures 355 x 60 x 325 millimeters and weighs 7.5 kilograms. It should be stored in dust and corrosion-free conditions at temperature between -30 and 85 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: DDS series drive controller
  • Unit Design: Modular with slots for designated and optional modules
  • Designated Modules: Software module, command communication module
  • Command Module Type: SERCOS (fiber-optic network for drive-to-drive and drive-to-motor communication)
  • Software Module Contents: Drive firmware, programmed operating parameters
  • Firmware Details: Must be ordered separately, transferable between drives
  • Function ID: 24
  • Function ID Version: 04
  • Rated Output Current: 50 Amps
  • Operating Ambient Conditions: 0 to 45 degrees Celsius temperature, 0 to 1000 meters altitude, Below 95% relative humidity
  • Storage Conditions: -30 to 85 degrees Celsius, free of dust and corrosive elements
  • Protection Category: IP20 (No protection from liquids, needs control cabinet installation)
  • Feedback Support: Digital servo
  • Cooling Method: Convection cooling with air from inside the cabinet
  • Dimensions: 355 x 60 x 325 millimeters
  • Weight: 7.5 kilograms
