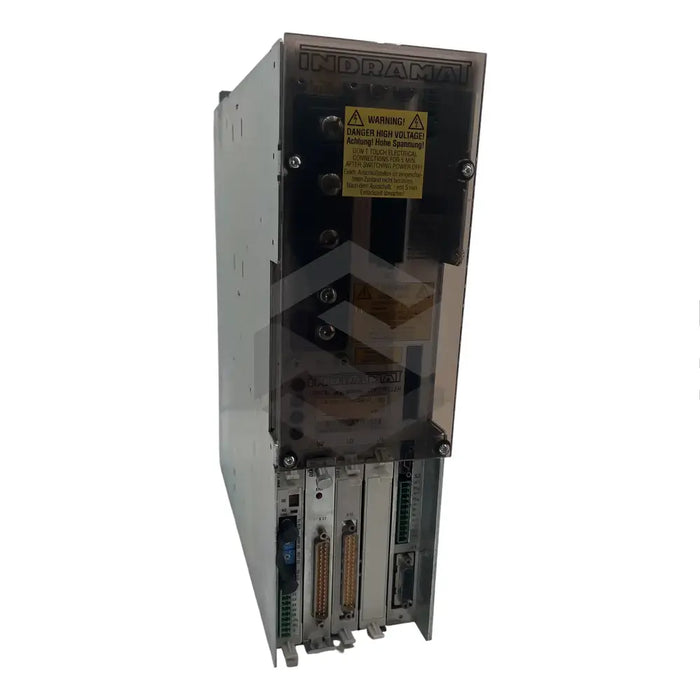

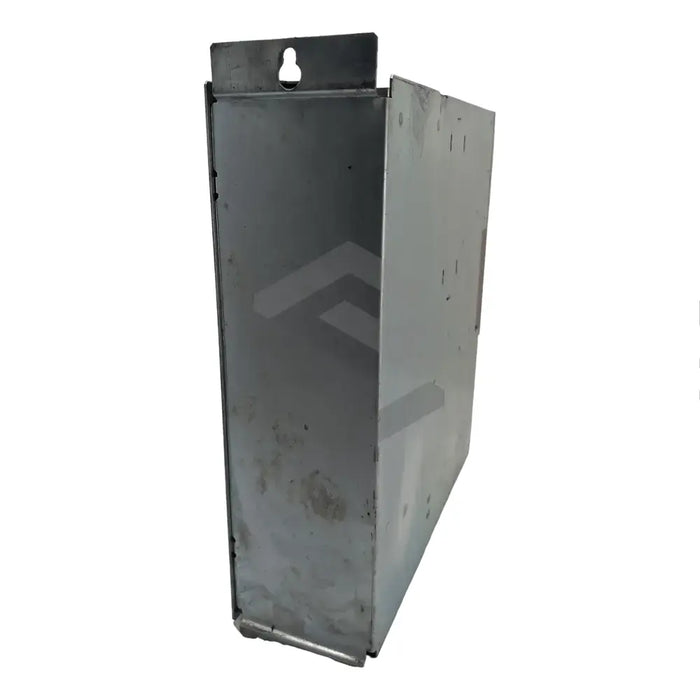

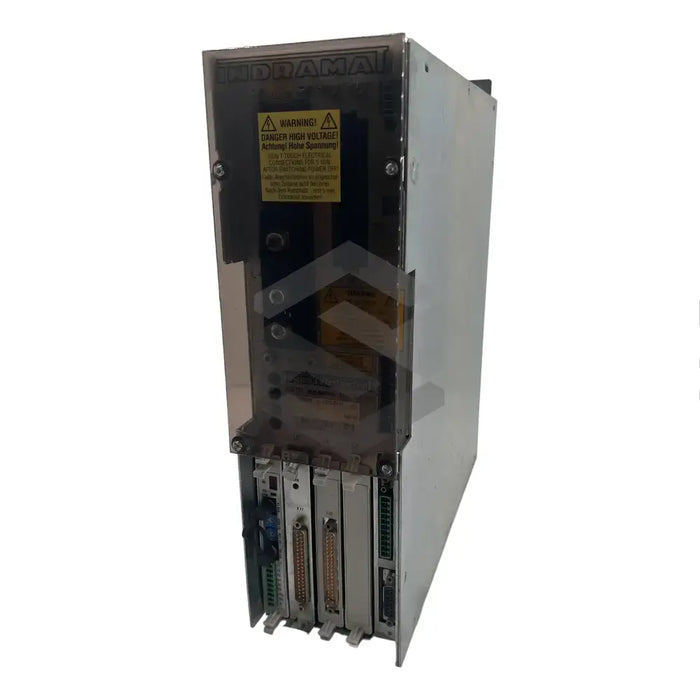

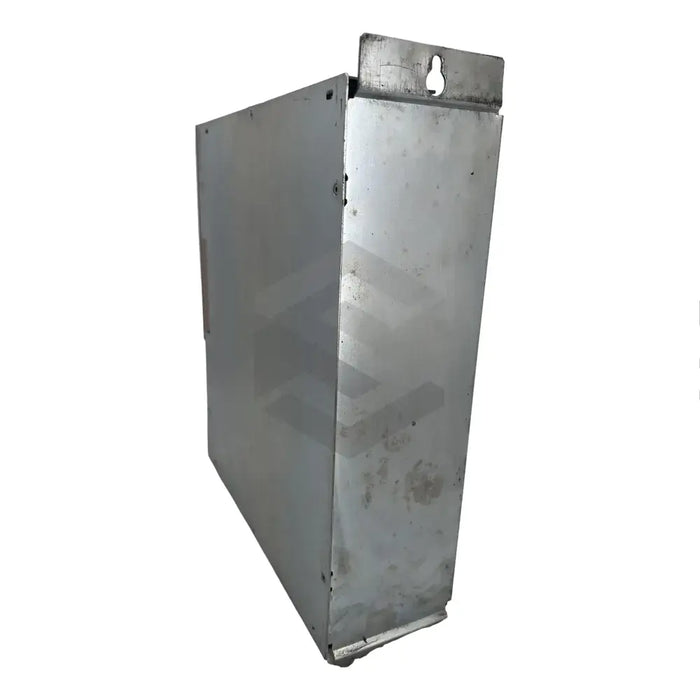

C image of DDS02.1-W050-DS54-00-FW | Main (Front Left)

DDS02.1-W050-DS54-00-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-W050-DS54-00-FW is a high-functioning drive controller manufactured by Bosch Rexroth Indramat, renowned for its industrial electrical and mechanical products. Designed for optimal performance under extreme conditions, it connects to the main power supply through an input line, with a 24 VDC power supply developing the connection. As it requires a dry environment (IP20 protection category), ideal operating temperatures should range from 0 to +45 degrees Celsius and can go up to +55 degrees Celsius at 20% reduced efficiency. Equipped with a DSS01.3 SERCOS interface module in the U1 slot for quick data transmission, it also possesses input/output interfaces in the U2 and U3 slots. Machine installation should meet minimum protection requisites, with a continuous 50A current used for steady operations. Digital servo feedback controls shaft position, while a firmware module (DSM02.1-FW) is found in the U5 slot. The U4 slot remains unoccupied.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS02.1-W050-DS54-00-FW

Product Type

Drive Controller

Input Power

Main voltage line and regulated 24 VDC power supply

Operating Environment

Dry

Protection Category

IP20

Operating Temperature Range

0 to +45 degree Celsius

Maximum Allowable Temperature

+55 degree Celsius with 20% reduction in efficiency

Interface Module

DSS01.3 SERCOS

Communication Interface

Optical fiber cable

Module Installation

U1 slot of the basic unit

Input/Output Interfaces

U2 and U3 slots

Number of Inputs per Module

15

Number of Outputs per Module

16

Installation Requirement

Control cabinet with minimum protection requirements

Cooling Techology

Cold Technology

Continuous Current

50 A

Position Control

Relative indirect position through digital servo feedback

Empty Slot

U4

Firmware Module

DSM02.1-FW installed in U5 slot.
