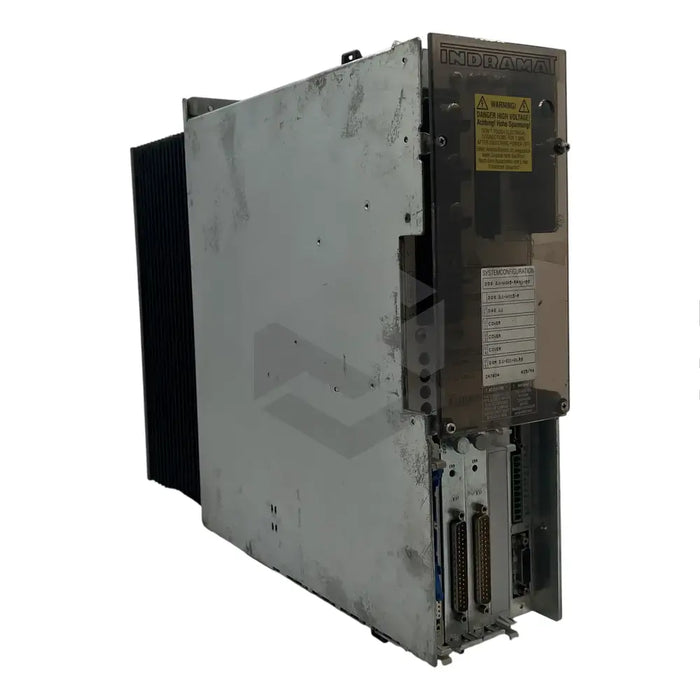

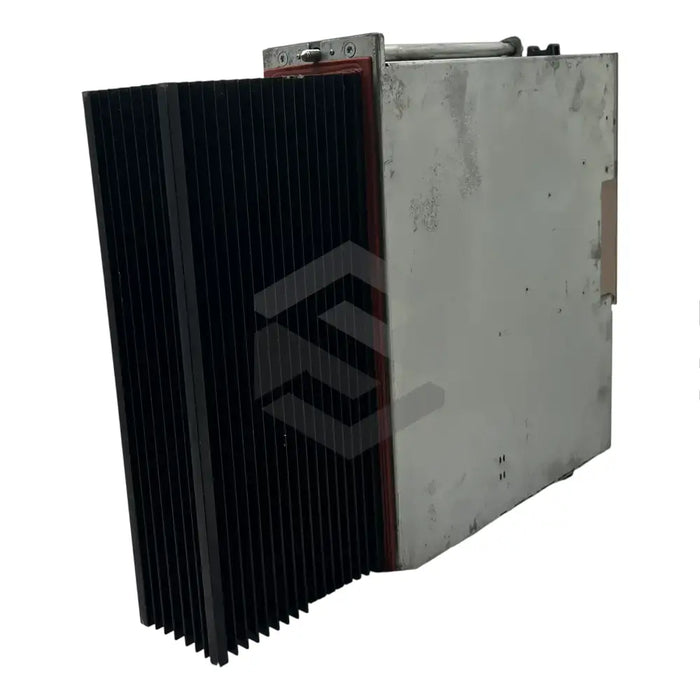

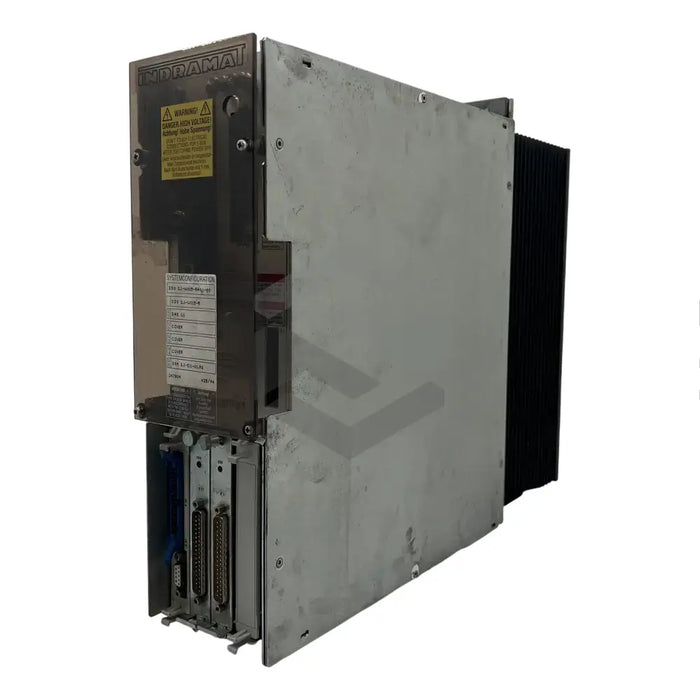

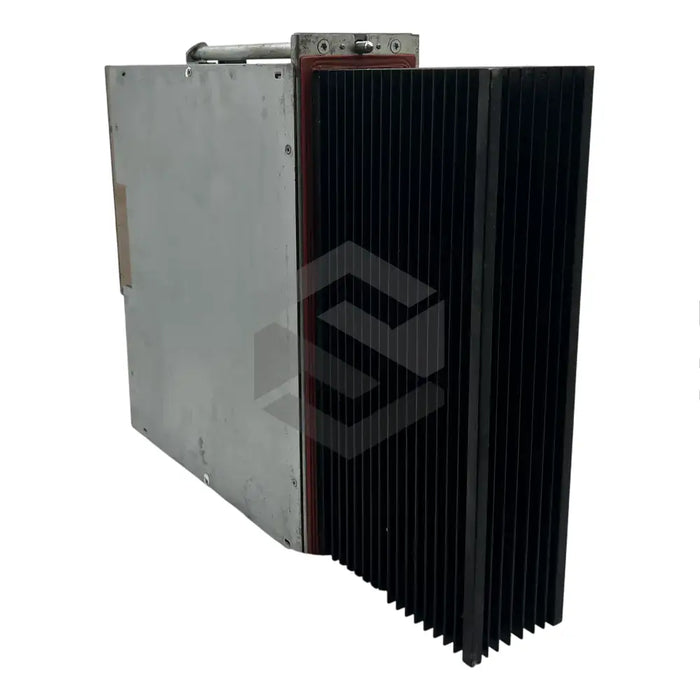

The DDS02.1-W050-RL02-01-FW, manufactured by Bosch Rexroth Indramat, is a modular drive controller of the DDS series, part of the DIAX02 product line. Working with AC motors in the LAR, MKD, and MDD series, it functions as a rapid-response drive. It is imperative to comply with national EMC guidelines during usage and should not be physically handled when powered on due to high voltages. Primarily reliant on heat technology for cooling, it may sometimes necessitate air conditioning. Weighing approximately 7.5kg, it adheres to IP 10 under DIN 40 050 specifications and requires D-subminiature plugin connectors for its signal lines. All components are VDE 0160 tested with the device's capability for multi-controller connectivity via a DC bus rail. Additionally, this controller features a single-axis positioning control communication module, enabling programming up to 3,000 program blocks.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Group: DIAX02
  • Product Code: DDS02.1-W050-RL02-01-FW
  • Design: Modular
  • Compatible Motors: LAR, MKD, MDD series
  • Safety Requirement: Must comply with national EMC directives
  • Cooling System: Heat technology
  • Weight: Approximately 7.5kg
  • Protection Category: IP 10 according to DIN 40 050 specifications
  • Connector Requirement: D subminiature plugin connectors or plugin clamps
  • Voltage Test Standard: VDE 0160
  • DC Bus Rail Connection: Yes, if multiple drive controllers are used
  • Ready to Operate Bb contact Capacity: 1A and 24VDC
  • Communication Module: Single-axis positioning control
  • Program Blocks Capable: Maximum of 3,000
