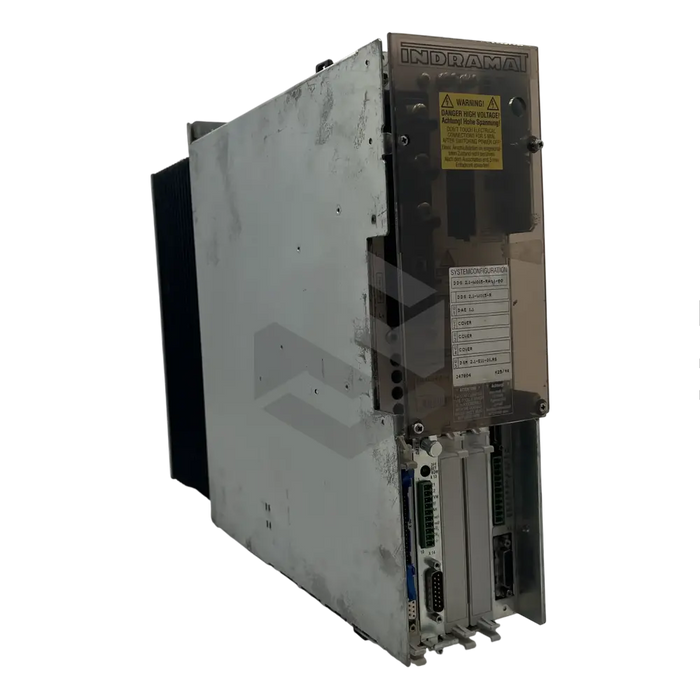

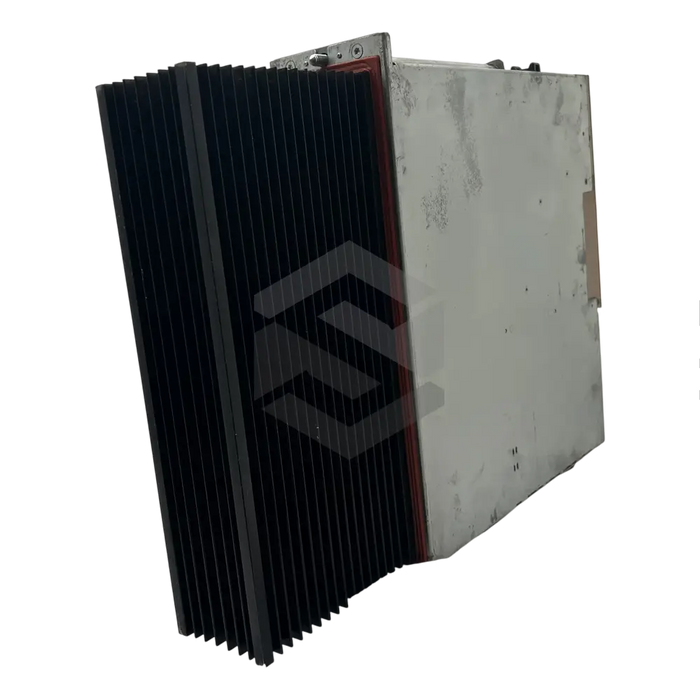

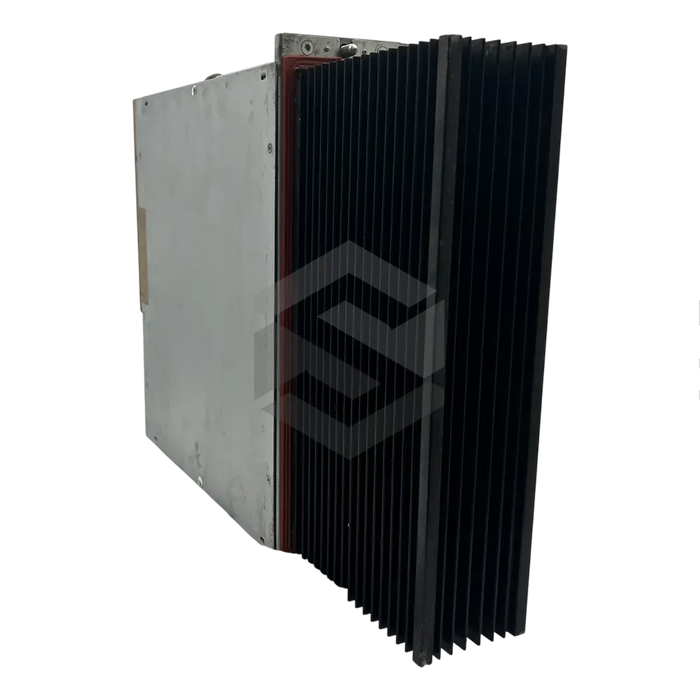

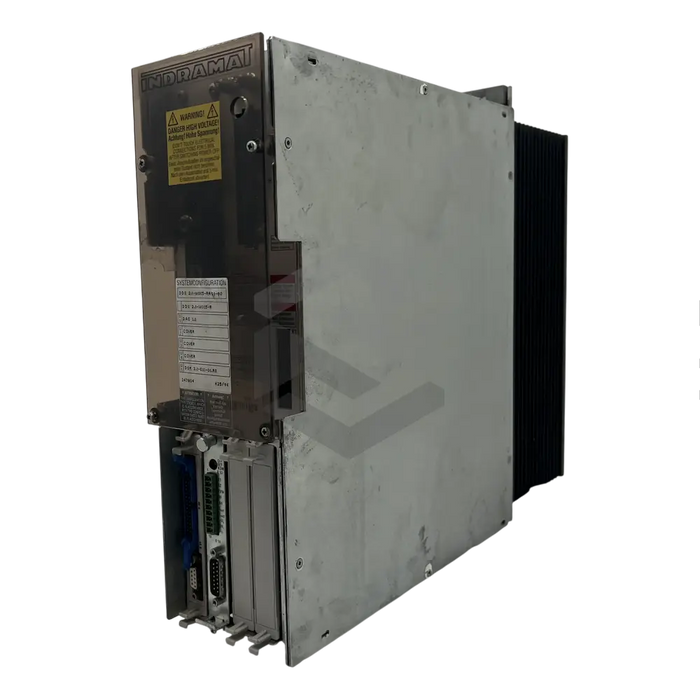

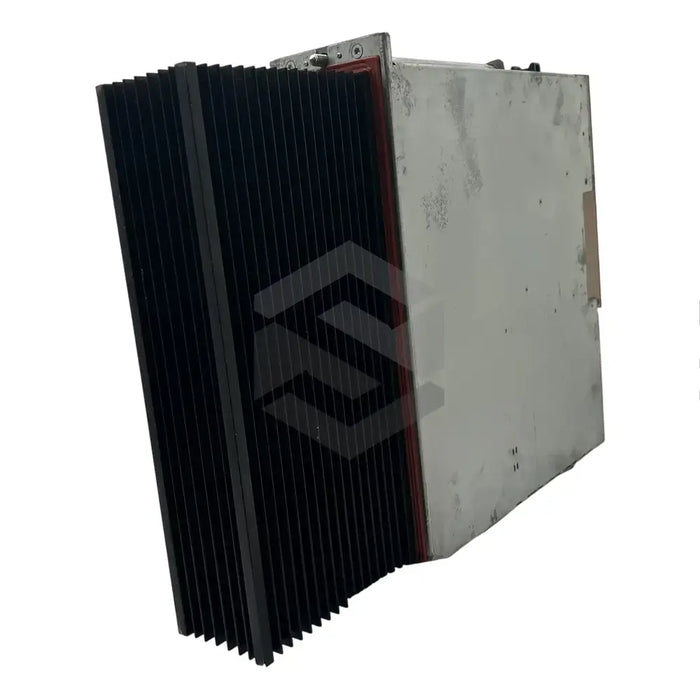

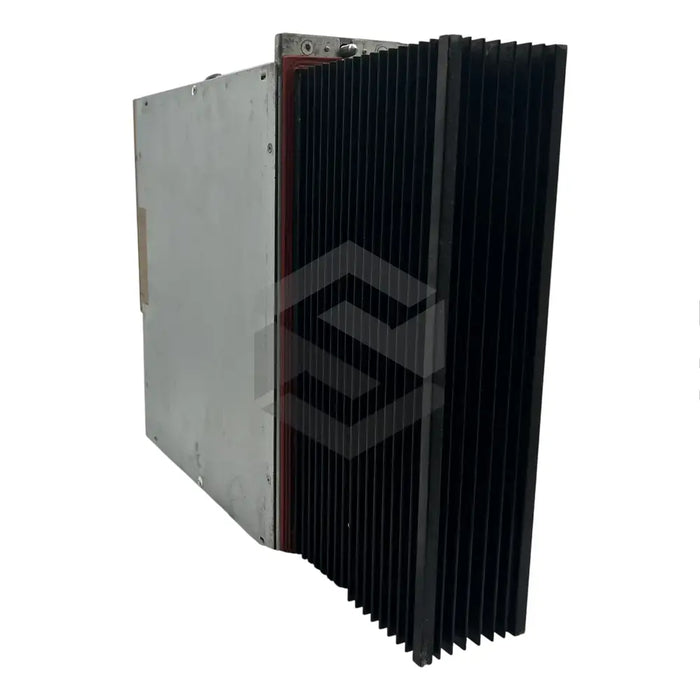

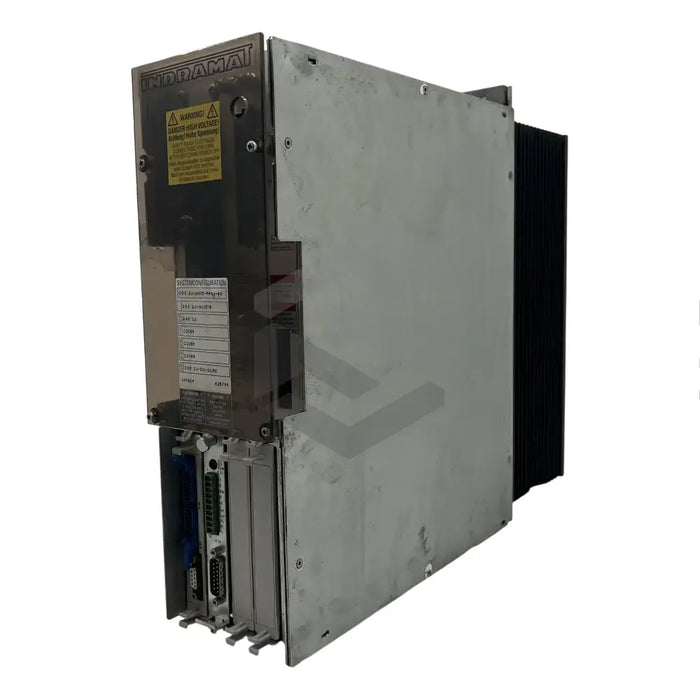

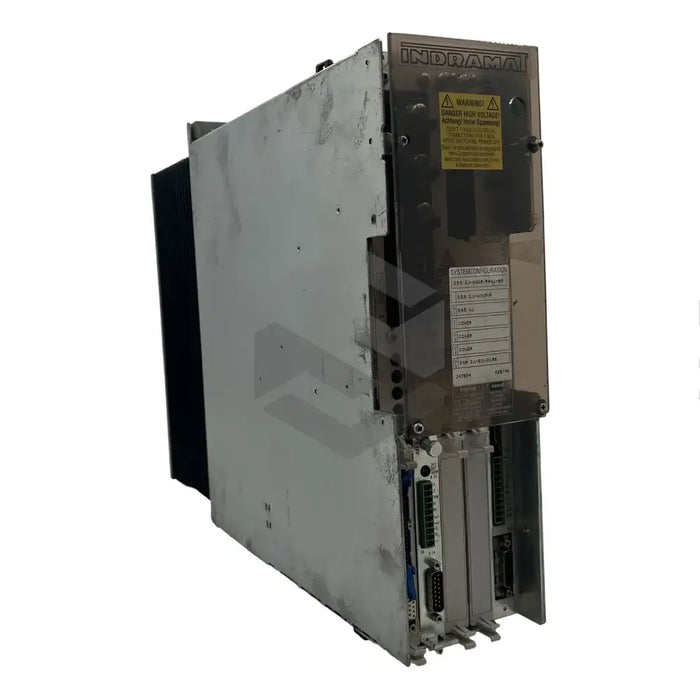

C image of DDS02.1-W050-RL20-01-FW | Main (Front Left)

DDS02.1-W050-RL20-01-FW

by Bosch Rexroth Indramat
$3,422.93 - $3,422.93
$3,422.93
$3,422.93 - $3,422.93
$3,422.93

Available, Shipping Varies

The DDS02.1-W050-RL20-01-FW, a product of Bosch Rexroth Indramat, is a customized drive controller which functions as a single-axis positioning module for a variety of synchronous and linear motors. It comprises a DLC02.1-FW module with capacity for up to 3000 program blocks, and allows for additional interface via an INTERBUS-S module in the U1 slot. It can be powered by a 24 VDC source through its L- and L+ terminals, with output through its A1, A2, and A3 terminals. This model also includes a fault reset key (S1) and a H1 status display that showcases errors or drive functions. Fitted with a DBS02.2-FW Interbus-S-slave interface in its U2 slot, it operates optimally between 0 and +45 degrees Celsius. Working at a nominal current of 50 A, it uses up 500 mA of power. Its firmware module, housing the software and drive parameters, is situated in the U5 slot. Suitable for use with industrial equipment like mounting systems, robots, and machine tools, its permissible ambient peak is +55 degrees Celsius with 20% derating.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DDS02.1-W050-RL20-01-FW

Product Type

Drive Controller

Operation

Single-Axis Positioning

Programming

Up to 3000 Program Blocks

Additional Interface

INTERBUS-S Module

Power Supply

24 VDC

Power Terminals

A1, A2, A3

Features

Fault Reset Key, H1 Status Display

Additional Interface

DBS02.2-FW Interbus-S-slave

Operating Temperature

0 to +45 degree Celsius

Current

50 A

Power Consumption

500 mA

Module Placement

Software and Drive Parameters in U5 Slot

Max Ambient Condition

+55 degree Celsius with 20% derating

Applications

Industrial Machinery, Mounting Systems, Robotics, Machine Tools
