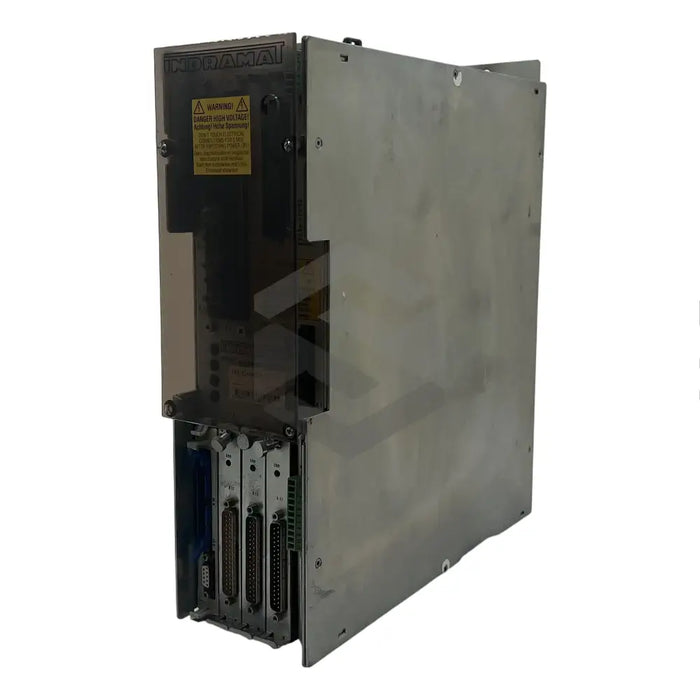

C image of DDS02.1-W100-DL03-00 | Main (Front Left)

DDS02.1-W100-DL03-00

by Bosch Rexroth Indramat
$2,063.71 - $5,460.09
$2,063.71
$2,063.71 - $5,460.09
$2,063.71

In Stock, Ships 1 - 3 Days

Produced by Bosch Rexroth Indramat, the DDS02.1-W100-DL03-00 is a drive featuring a single-axis positioning module which extends the drive controller's ability to operate as an independent positioning unit. With capacity for up to 3000 program blocks, each detailing a full motion sequence including designated outputs and monitored inputs, the drive is configurable with Analog and SERCOS modules. Its servo feedback facilitates proper control over speed, position, and torque of multiple types of motors. The DDS02.1-W100-DL03-00, part of the DDS series, possesses a convection cooling design, housed in an IP20 rated closure specifically built for 0-45 degrees Celsius and up to 1000 meters altitude. It can however, with lowered output, operate in temperatures up to 55 degrees Celsius and altitudes up to 5000 meters. Its maximum humidity tolerance during operation is 95%. Please note, firmware for the DDS02.1-W100-DL03-00 is not included and must be ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS02.1-W100-DL03-00

Product Type

Single-Axis Positioning Module

Programming Blocks

Up to 3000

Additional Modules

Analog and SERCOS

Servo Feedback

Controls motor speed, position and torque

Usability

Compatible with various linear and synchronous motors

Cooling System

Convection Cooling

Enclosure Rating

IP20

Ambient Operating Temperature

0 to 45 degrees Celsius

Operating Altitude

0 to 1000 meters

Storage Temperature

-30 to 85 degrees Celsius

Max Relative Humidity During Operation

95%

Max Absolute Humidity During Operarion

25 g/m3

Rated Output

100 Amps

Operation With Derated Output Condition

Up to 55 degrees Celsius and 5000 meters Altitude

Output Derating On Exceeding Temperature

20% at 55 degrees Celsius

Output Derating On Exceeding Altitude

35% at 5000 meters altitude

Firmware

To be ordered separately

Function ID

03

Function ID Version

00
