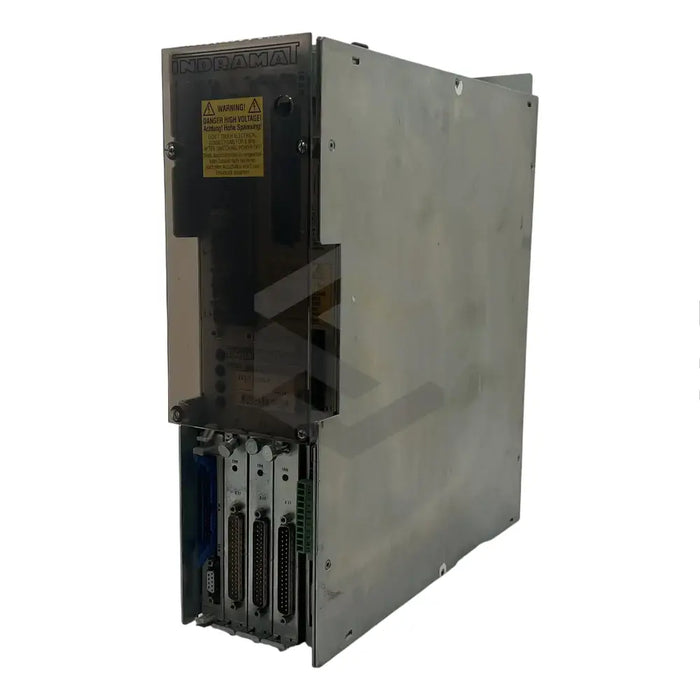

C image of DDS02.1-W100-DL03-01-FW | Main (Front Left)

DDS02.1-W100-DL03-01-FW

by Bosch Rexroth Indramat
$2,063.71 - $5,460.09
$2,063.71
$2,063.71 - $5,460.09
$2,063.71

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's DDS02.1-W100-DL03-01-FW is an advanced digital drive unit specifically designed for industrial applications, including textiles, robotics, and machine tools. This sophisticated drive delivers an optimal performance with a nominal current output of 100 Amps under appropriate ambient conditions, such as temperatures ranging from 0 to 45 degrees Celsius, altitudes from 0 to 1000 meters and up to 95% relative humidity. The output derates if operated outside these parameters, with operation not permitted beyond 55 degrees Celsius or above 5000 meters. This unit supports commanding communication for single-axis positioning and is also equipped with digital servo feedback for precise motor control, requiring regulated 24 Volts DC input and a nominal DC bus voltage of 300 Volts DC. The drive system, weighing about 7.5 kilograms, depends on internal air cooling, emphasizing on proper installation spacing for efficient airflow and ventilation. Note that the firmware for this system needs to be ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DDS02.1-W100-DL03-01-FW

Product Type

Advanced Digital Drive Unit

Applications

Textiles, Robotics, Machine Tools

Nominal Current Output

100 Amps

Optimal Ambient Temperature

0 to 45 degrees Celsius

Optimal Altitude

0 to 1000 meters

Optimal Humidity

Up to 95%

Maximum Derating Temp

55 degrees Celsius

Maximum Derating Altitude

5000 meters

Motor Control

Linear and Synchronous Motors

Communication

Single-Axis Positioning, SERCOS, Analog

Feedback

Digital Servo Feedback

DC Input Requirement

Regulated 24 Volts

DC Bus Voltage

300 Volts, +/- 15% Tolerance

Cooling Method

Air from Inside Control Cabinet

Weight

Approximately 7.5 kilograms

Firmware

Ordered Separately
