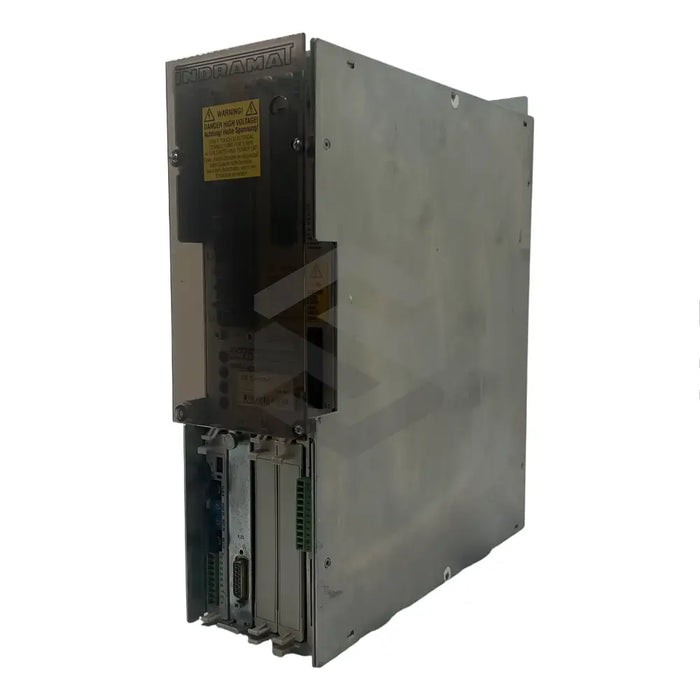

C image of DDS02.1-W100-DS04-03-FW | Main (Front Left)

DDS02.1-W100-DS04-03-FW

by Bosch Rexroth Indramat
$5,617.67 - $6,179.44
$5,617.67
$5,617.67 - $6,179.44
$5,617.67

In Stock, Ships 1 - 3 Days

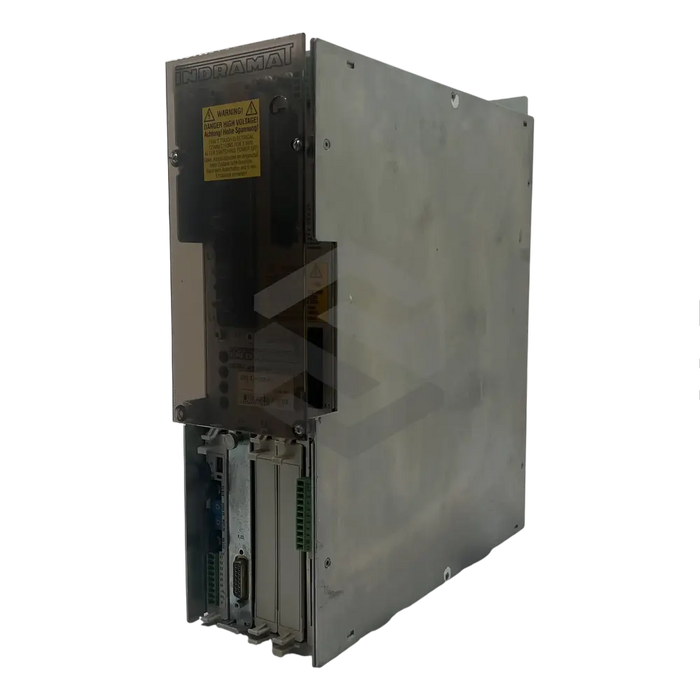

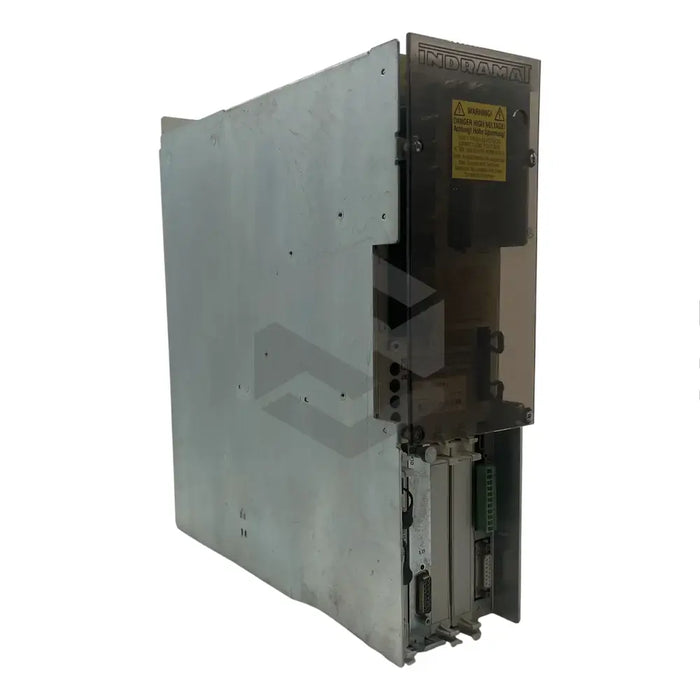

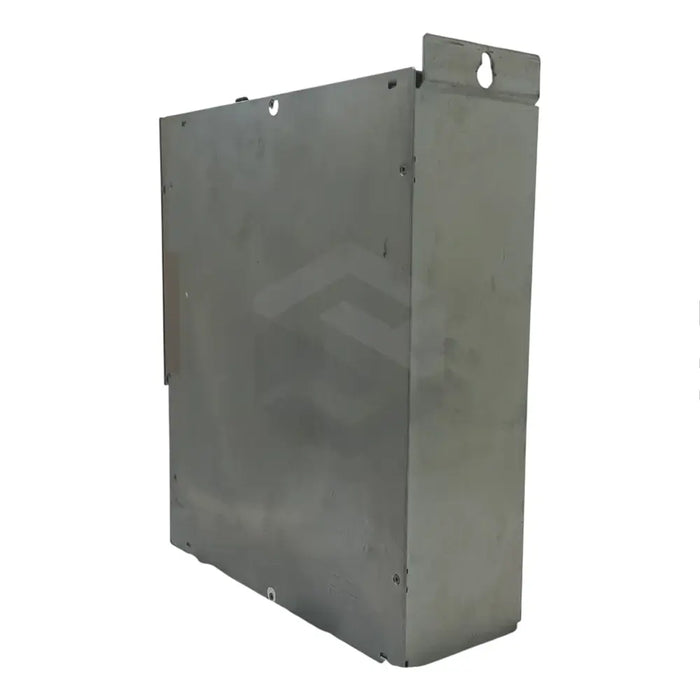

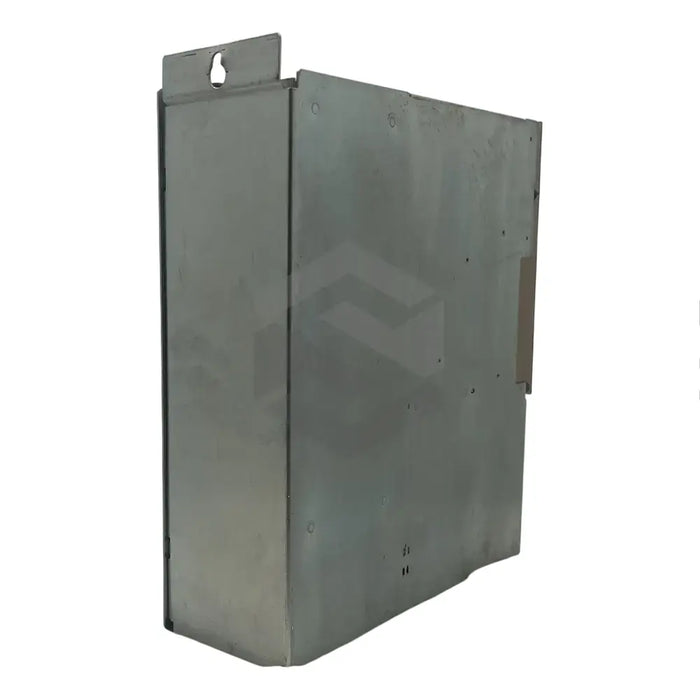

The DDS02.1-W100-DS04-03-FW, a DDS series digital servo drive, is created by Bosch Rexroth Indramat for industrial use. It outputs a rated current of 100 Amps under specific ambient conditions: temperatures from 0 to 45 degrees Celsius, maximum elevation of 1000 meters and relative humidity of utmost 95%. For operation above these conditions, load factors should be adjusted appropriately. The drive, alongside its supply units, is built for installation into a control cabinet or an enclosed housing adhering to IP10 protection standards. It has dimensions of 355 x 325 x 105 millimeters and requires a minimum space of 80 millimeters for effective cooling at the top and bottom. The SERCOS fitted command and communication module and the easily removable software module allow for convenient commissioning and minimal downtime. The drive system is only intended for use by trained technical personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

DDS

Model

DDS02.1-W100-DS04-03-FW

Product Type

Digital Servo Drive

Rated Current Output

100 Amps

Ambient Conditions

0 to 45 degrees Celsius, maximum 1000 meters elevation, maximum relative humidity of 95%

Derated Operation Conditions

Up to 55 degrees Celsius, up to 5000 meters elevation

Mounting

Control cabinet or closed housing that meets IP10 protection requirements

Mounting Direction

Vertical

Dimensions

355 x 325 x 105 millimeters

Cooling System

Cooling air from inside the cabinet, air inlet on the bottom side, outlet on the top side

Command and Communication Module

SERCOS

Software Module

Removable, contains drive firmware and operating parameters

Motor Feedback

Integrated digital servo feedback

Operator Requirements

Qualified and trained technical personnel
