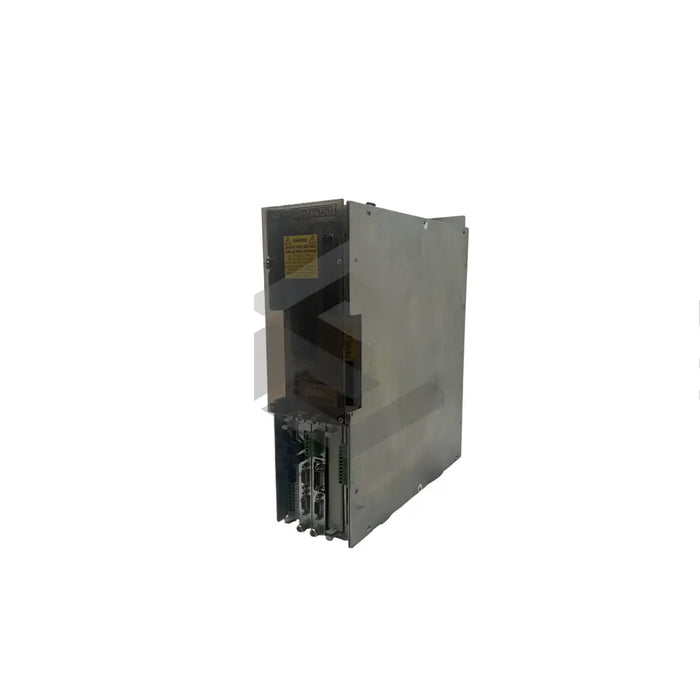

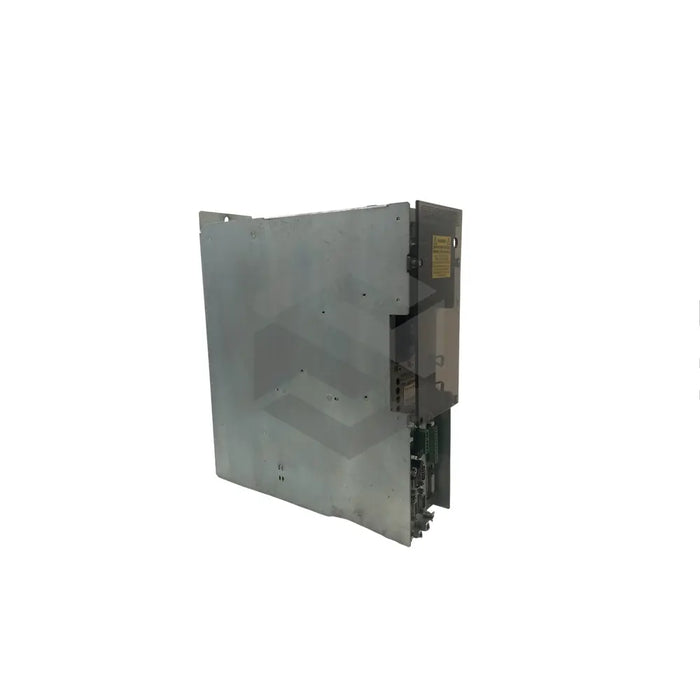

S image of DDS02.1-W100-DS40-02-FW

DDS02.1-W100-DS40-02-FW

by Bosch Rexroth Indramat
$2,355.73 - $5,456.85
$2,355.73
$2,355.73 - $5,456.85
$2,355.73

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat DDS02.1-W100-DS40-02-FW is a highly adaptable, pre-configured Servo Drive well-matched with MKD, LAR, and MDD type AC motors. Recognized for its rapid response, this 100A rated model is ideal for various applications, such as robotics, packaging machinery, and printing. The drive features a modular construction with three installed modules: DSS01.3-FW, DRF01.1, and DSM02.1-FW. The provided two-digit diagnostic display enables easy problem identification and troubleshooting. This model also includes an integral oscilloscope function, thereby eliminating the need for an external oscilloscope, and capable of capturing signals in real-time. With SERCOS interface, up to 2000 samples can be collected and transmitted, providing position and velocity updates every 250 µs. The spare module slots can be utilized for supplementary position feedback inputs, and it supports the transmission of both external and motor feedback data.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Drive

Model Number

DDS02.1-W100-DS40-02-FW

Controller Type

DIAX02 basic controller

Compatibility

MKD, LAR, and MDD type of AC motors

Drive Type

Rapid-response

Applications

Robotics, Packaging Machinery, Printing, Textile

Construction

Modular

Rating

100A

Configuration

DS40-02-FW

Pre-deployed Modules

DSS01.3-FW, DRF01.1, DSM02.1-FW

Command Module

DSS01.3 (SERCOS based commands)

Display

Two-digital diagnostic

Features

2 x outputs for analog monitoring of signals, Integrated oscilloscope function

Update Rate

250usec

Sample Capacity

2000 samples

Communication Interface

SERCOS

Feedback Inputs

Unoccupied module slots, Can be digital or analog.
