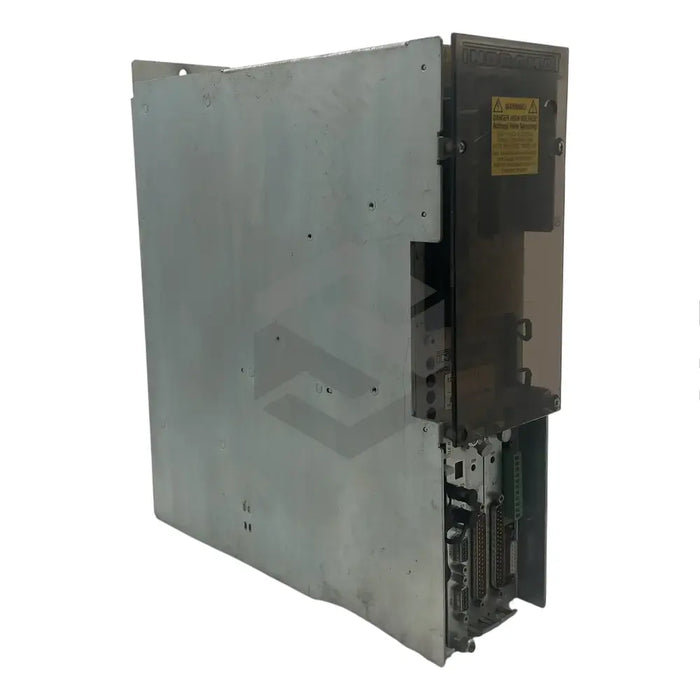

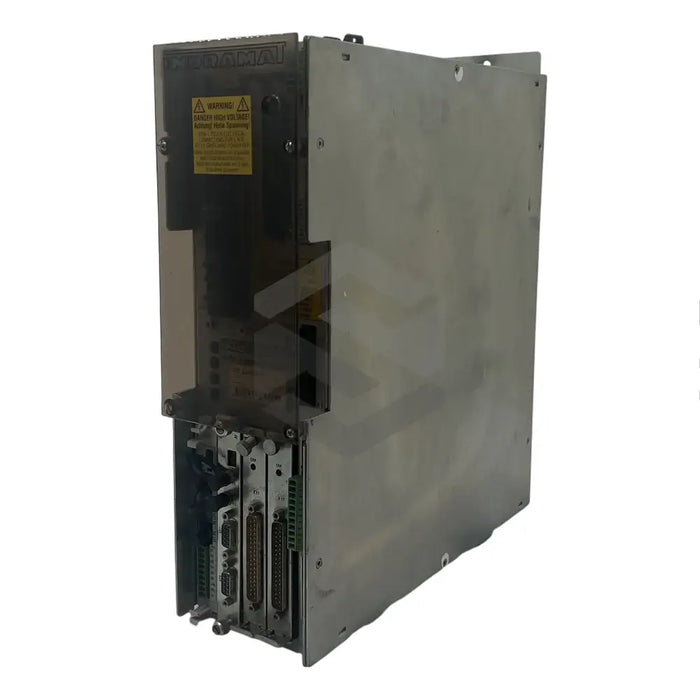

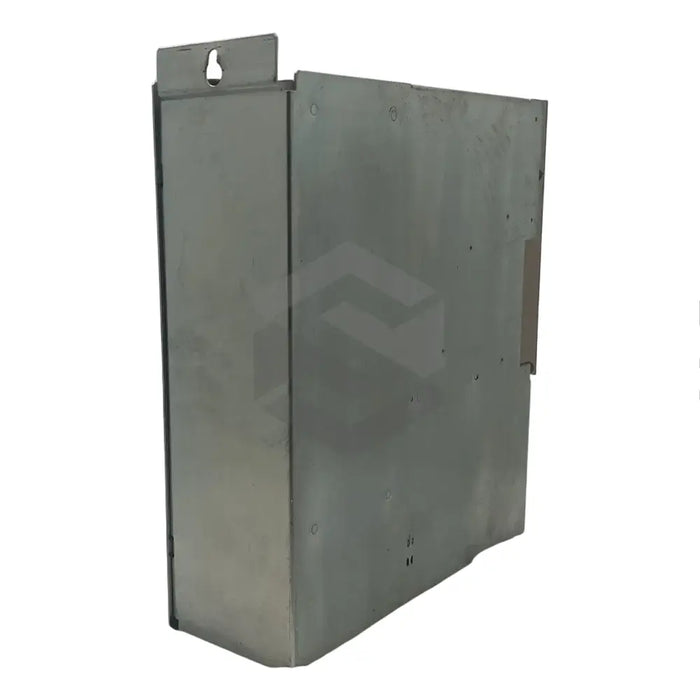

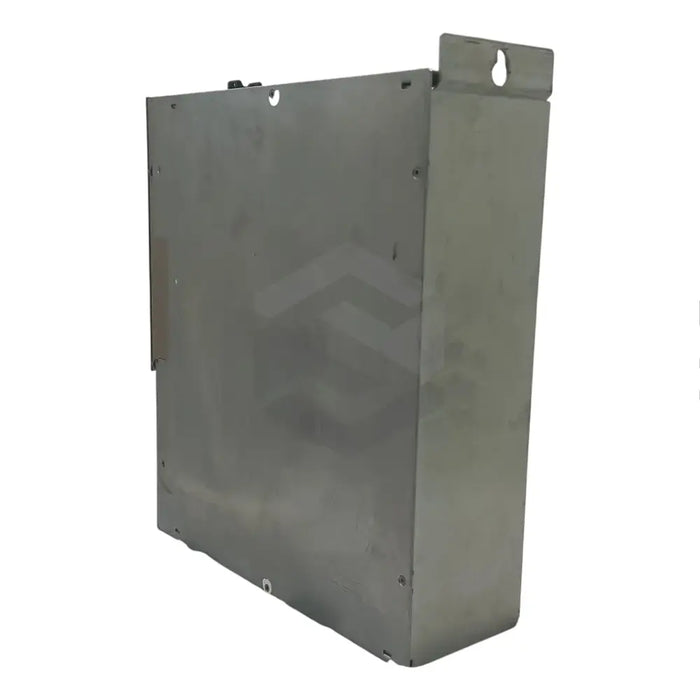

C image of DDS02.1-W100-DS45-00-FW | Main (Front Left)

DDS02.1-W100-DS45-00-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-W100-DS45-00-FW, produced by Bosch Rexroth Indramat, is a Version 1 drive controller from their DDS series. Popular across industries such as packaging, printing, textiles, and machine tools, these versatile controllers can be paired with digital servo motors like the MDD and MKD synchronous motors, as well as the LAF and LAR inductance linear motors. This particular model has a rated current of 100A and requires a DC bus voltage of 300V (± 15% tolerance). Its modular design supports customizable configuration. This model only operates with motors providing digital servo feedback and requires separately ordered firmware. It includes a SERCOS interface for fiber optic cable usage. Its operation is optimal at ambient temperatures ranging from 0°C to 45°C, relative air humidity not exceeding 95%, and installation heights of up to 1000m. The drive controller dissipates heat efficiently, but requires a sizeable control cabinet and air conditioning.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

DDS02 drive controller

Model

DDS02.1-W100-DS45-00-FW

Applications

printing and packaging machinery, machine tools, the textile industry, handling machines

Motor Compatibility

MDD and MKD synchronous motors, LAR and LAF inductance linear motors

Design

Version 1, modular

Rated Current

100 A

DC Bus Voltage

300V (± 15%)

Cooling System

Heat technology system (large control cabinet and air conditioning required)

Feedback System

Digital servo

Firmware

Supported (ordered separately)

Interface

SERCOS (fiber optic cable compatible)

Additional Features

Evaluating reference switches, travel range limit switches, sensor inputs

Operating Conditions

Temperature: 0o C - 45o C, Humidity: up to 95%

Maximum Installation Height

1000 m
