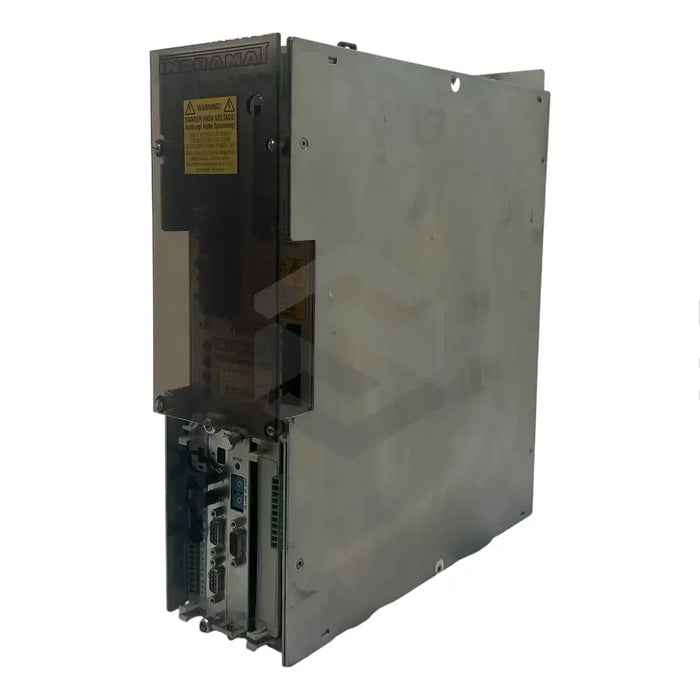

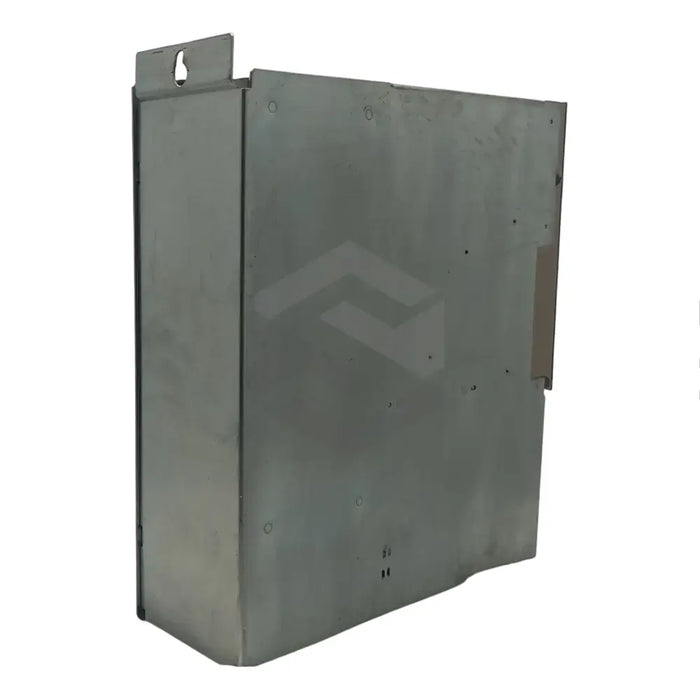

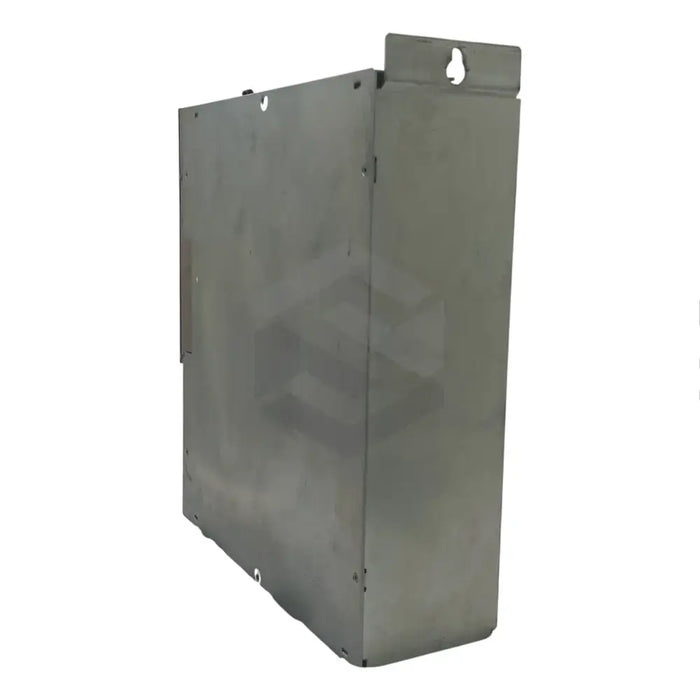

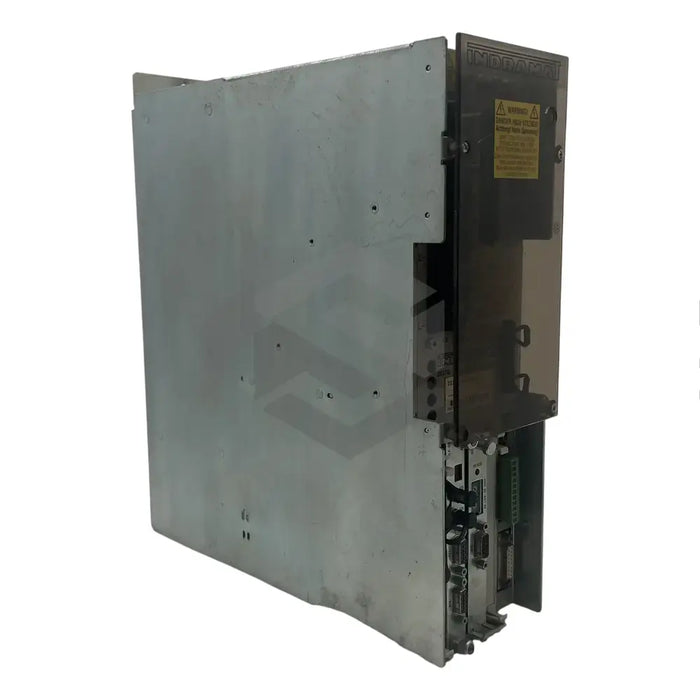

DDS02.1-W100-DS61-00-FW

Request a quote
The DDS02.1-W100-DS61-00-FW is a basic unit for DDS digital drive controllers, manufactured by Bosch Rexroth Indramat. These controllers can be adapted to a variety of applications due to their modular hardware and software, allowing the installation of up to three optional modules. The DDS02.1-W100-DS61-00-FW is suitable for controlling compatible motors such as those from the MDD, MKD, LAC product lines, and it is typically used in packaging machinery, robotics, and handling machines. The controller uses a SERCOS communication module that permits real-time serial communication over fiber optic cables at 2 / 4 Mbps data rates. The firmware for the controller must be ordered separately and it supports digital servo feedback, rated at 100 Amps. It operates with a 300 Volts DC bus rating, allowing up to ±15% variation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: DDS02.1-W100-DS61-00-FW Basic Unit for DDS Digital Drive Controllers
  • Hardware: Modular Design
  • Optional Modules: Up to three can be installed
  • Firmware: Can be ordered separately with different feature sets
  • Compatible Motors: MDD, MKD, LAC product lines
  • Applications: Packaging machinery, robotics and handling machines
  • Communication Module: SERCOS
  • Communication Speed: 2 / 4 Mbps
  • Cable Type: Fiber Optic
  • Topology: Ring Topology
  • Function ID: 61
  • Function ID Version: 00
  • Feedback: Digital Servo
  • Rated Output: 100 Amps
  • DC Bus Rating: 300 Volts DC (±15% variation)
  • Overload Factor: Available in controller selection list
  • Peak Current Settings: 100 Amps / 40 Amps and 60 Amps / 60 Amps
