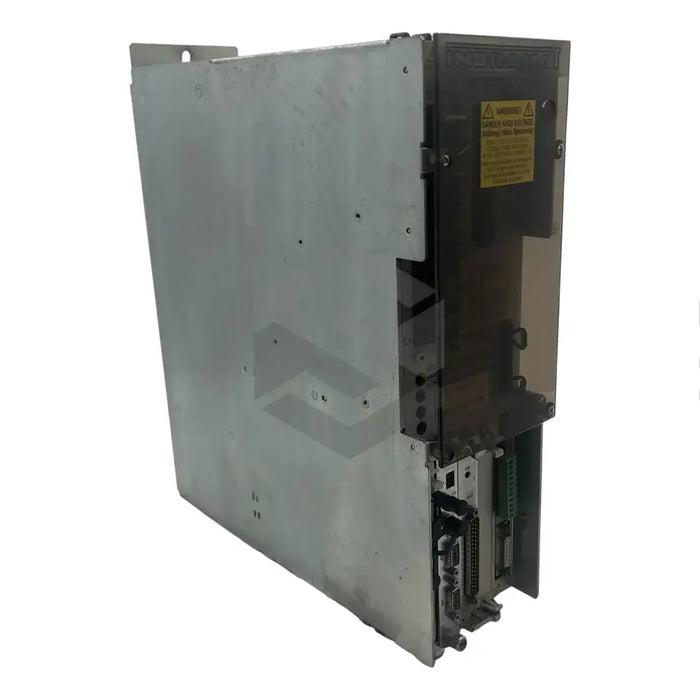

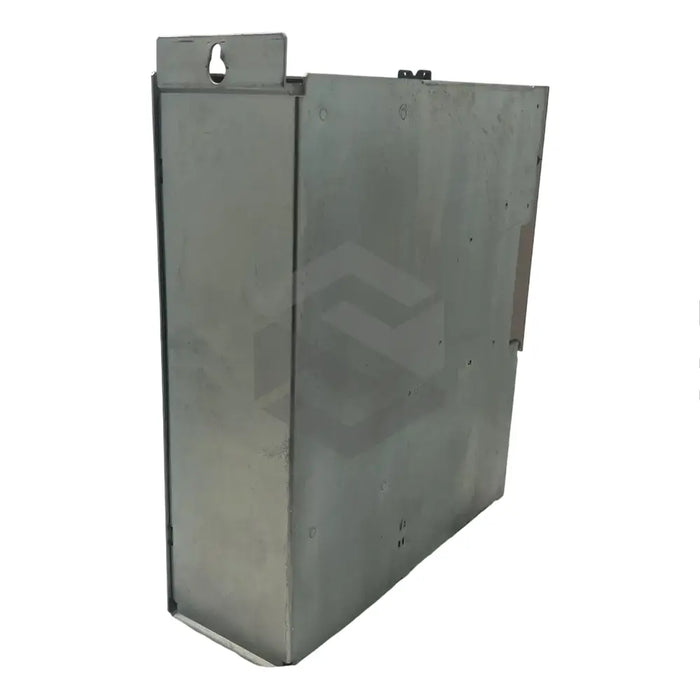

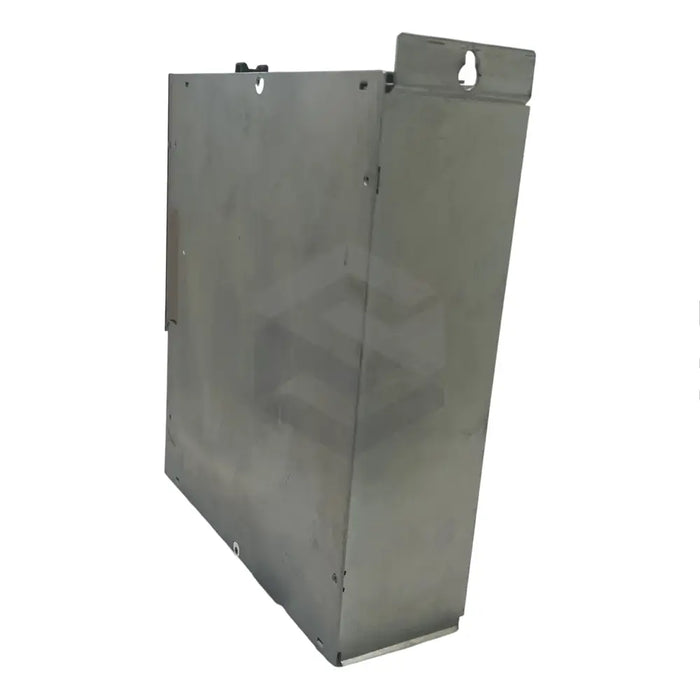

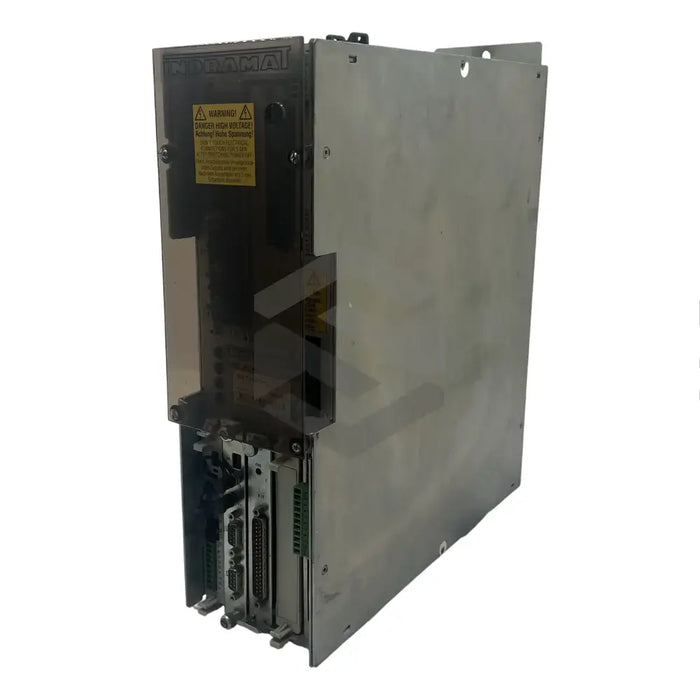

series image of DDS02.1-W100-DS68-00-FW

DDS02.1-W100-DS68-00-FW

by Bosch Rexroth Indramat
$1,200.00 - $1,200.00
$1,200.00
$1,200.00 - $1,200.00
$1,200.00
Available, Shipping Varies
Bosch Rexroth Indramat's DDS02.1-W100-DS68-00-FW is a digital drive controller, particularly ideal for industrial tasks such as manipulating printing machines, textile machines, assembly equipment, robots, and electronic transmissions. The controller is specifically designed for motor control, with a function ID of 68 and a version of 00. Drive firmware, which must be purchased separately, is positioned on a software module placed in slot U5 of the base unit. The controller is capable of outputting a nominal rating of 100 Amps under optimum ambient conditions, with a temperature range of 0-45 degrees Celsius and elevation of 0-1000 meters. Its cooling mechanism utilizes air from within its control cabinet, requiring sufficient cabinet size and potential air conditioning. Fitted with digital servo feedback, the controller's dimensions are 390x60x325 millimeters, requiring a minimum of 80 millimeters spacing on top and bottom when mounted.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Drive Controller
  • Industrial Applications: Printing machines, Textile machines, Assembly equipment, Robots, Electronic transmissions
  • Function ID: 68
  • Function ID Version: 00
  • Hardware: Ordered Separately
  • Firmware: Stored on U5 slot of the basic unit
  • Communication Module: SERCOS in U1 slot
  • Additional Module Slots: Slots U2 to U4
  • Optional Modules: Command card, Interbus S slave module, ARCNET coupler card, high resolution position interface, summing input interface, gearwheel encoder interface, incremental position interface
  • Nominal Output Rating: 100 Amps
  • Ambient Conditions: 0 to 45 degrees Celsius, 0 to 1000 meters altitude
  • Cooling Method: Air from inside control cabinet
  • Feedback: Digital Servo Feedback
  • Mounting Style: Vertical
  • Dimensions: 390 x 60 x 325 millimeters
  • Spacing: At least 80 millimeters on top and bottom sides
