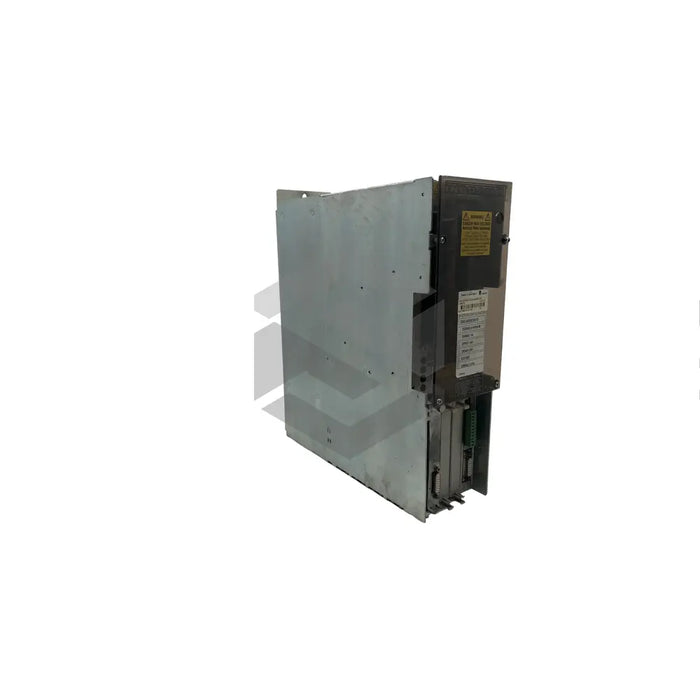

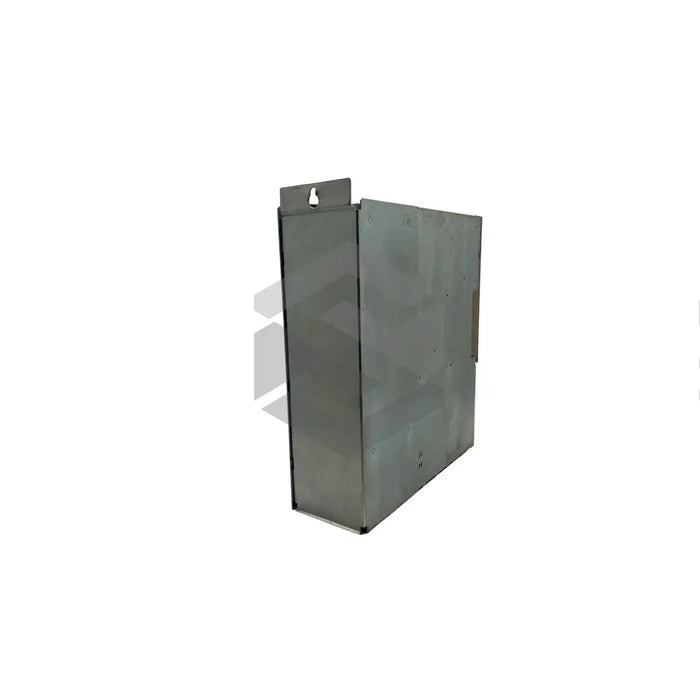

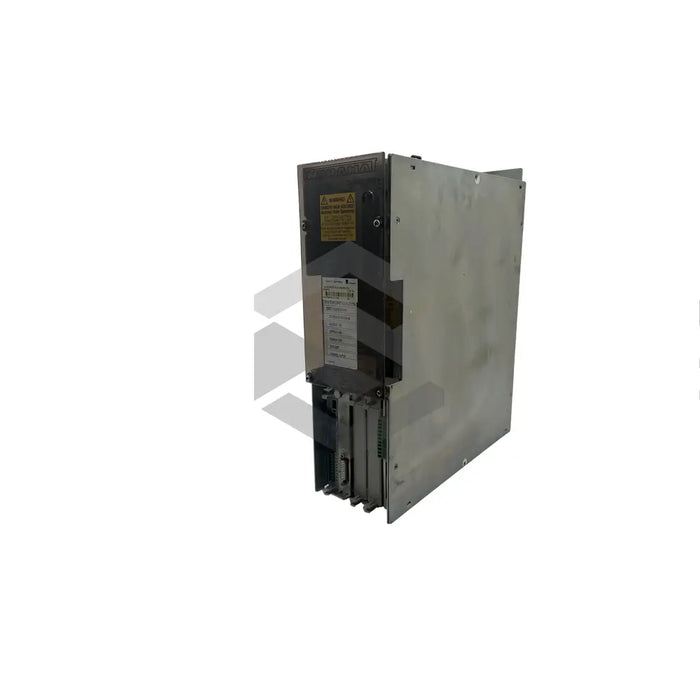

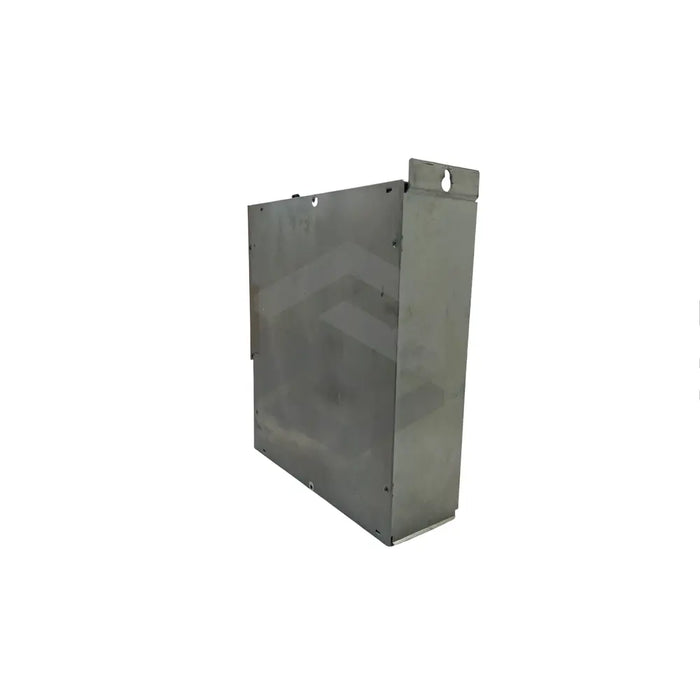

DDS02.1-W100-RS01-00
Bosch Rexroth Indramat’s DDS02.1-W100-RS01-00 is an axis drive controller belonging to the DDS Drive Controllers series. The unit conditions DC bus energy from a supply module and delivers controlled three-phase output to a matched servo motor for speed and position control in PLC-based or numerically controlled machinery. By handling closed-loop amplification inside the drive, it reduces the load on the central control processor and supports fast response to motion commands. In packaging, transfer, and handling systems, that control structure helps axes accelerate, hold speed, and settle at commanded positions with repeatable behavior. This layout suits multi-axis equipment where compact cabinet integration and coordinated servo operation are required.
The drive communicates with master motion systems through the SERCOS interface, so parameter data and cyclic setpoints share a single fiber-optic ring. It relies on internal air cooling, so cabinet airflow removes heat without a fan mounted on the module. Classified as a Digital AC Servo Drive Controller, the unit processes current, velocity, and position control digitally inside the device. The power stage provides a continuous output of 100 A, and rotor position enters through resolver feedback, which supports rugged inductive sensors in demanding environments.
The controller carries Function ID 01 with a fixed parameter set selected for standard application libraries. It belongs to Line 02, which places it within the second line of the DDS platform for matching system sections. The unit is Version 1, indicating the first revision of this controller type and providing a clear identification point within the series. These codes separate the module’s assigned function from its line placement while keeping the operating role focused on servo control.
