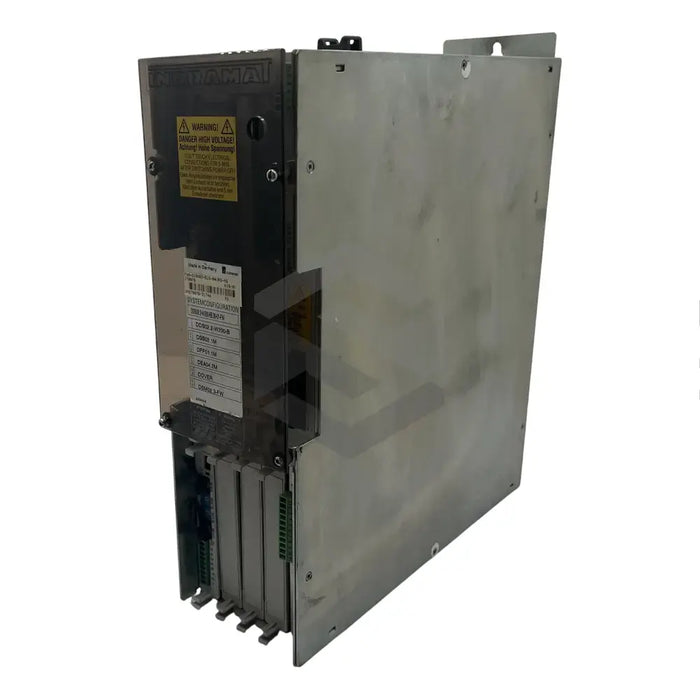

C image of DDS02.1-W100-RS01-01 | Main (Front Left)

DDS02.1-W100-RS01-01

by Bosch Rexroth Indramat
$2,355.73 - $5,456.85
$2,355.73
$2,355.73 - $5,456.85
$2,355.73

In Stock, Ships 1 - 3 Days

The DDS02.1-W100-RS01-01 is a drive controller from Bosch Rexroth Indramat's DDS series. It is designed to create a compact drive package with AC servo motors and main drives, using a single supply unit-engineered, thanks to the unique DDS modular concept. Such combinations enable the development of rapid-response drives suitable for machine tools, printing and paper processing machines, packaging machinery, and robotics. This product features a heat technology cooling system reducing the heat inside its control cabinet and requires minimal installation efforts. A SERCOS interface software module enables real-time communication with the control section via a fiber optic cable and supports various function inputs. The device has a rated current of 100A, operates at a DC bus voltage of 300V with a ±15% tolerance, and is best suited for motors using the Resolver feedback system. Additional firmware needs to be purchased separately. The device features a DIN 40 050-rated IP 10 control cabinet for protection against penetration of solid objects, however, it does not protect against water jets.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

DDS02.1-W100-RS01-01

Product Type

Drive controller

Heat Technology

Cooling mechanism in control cabinet

Required Element

Large control cabinet

Installation

Minimal mounting/installation efforts

Software Module

SERCOS interface

Communication Type

Real-time communication via fiber optic cable

Rated Current

100A

DC Bus Voltage

300V with a ±15% tolerance

Motor Compatibility

Only with motors using the Resolver motor feedback system

Firmware Support

Yes

Firmware Inclusion

No, to be ordered separately

Protection Rating

IP 10 according to DIN 40 050

Solid Object Penetration Resistance

Not damagable by objects with a diameter of 50mm or more

Water Resistance

Not protected against jets of water

Potential Applications

Machine tools, printing and paper processing machines, packaging machinery, robotics, and handling machines.
