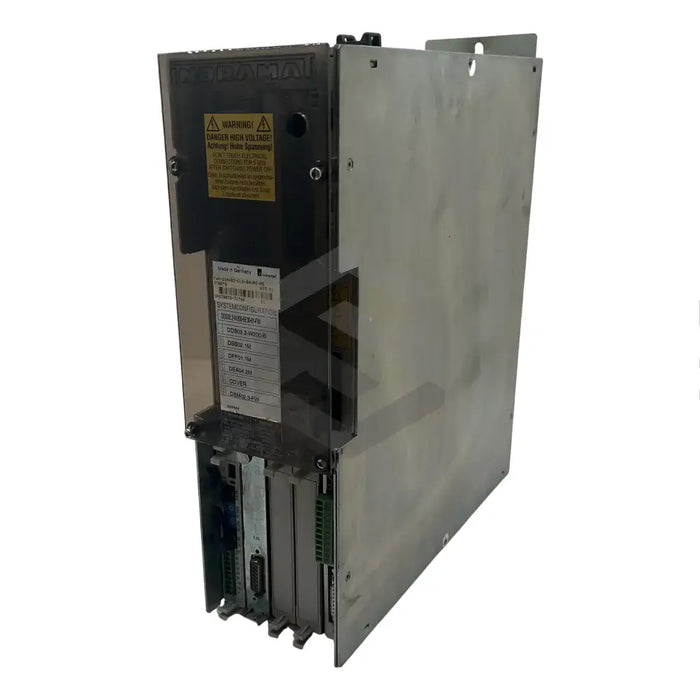

C image of DDS02.1-W100-RS04-03-FW | Main (Front Left)

DDS02.1-W100-RS04-03-FW

by Bosch Rexroth Indramat
$2,357.19 - $5,460.09
$2,357.19
$2,357.19 - $5,460.09
$2,357.19

In Stock, Ships 1 - 3 Days

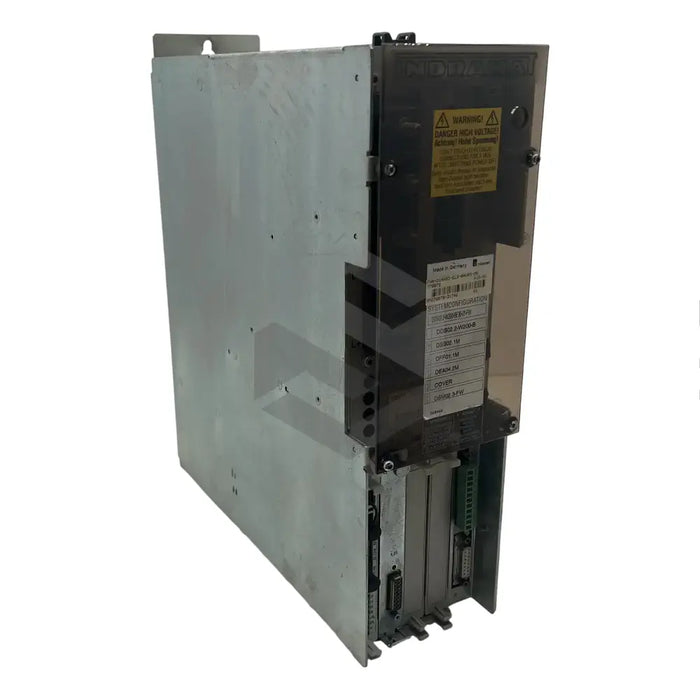

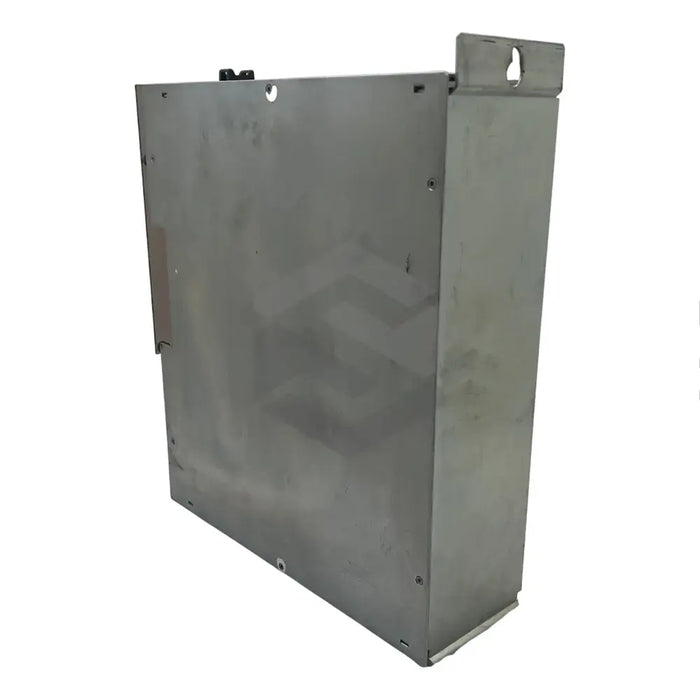

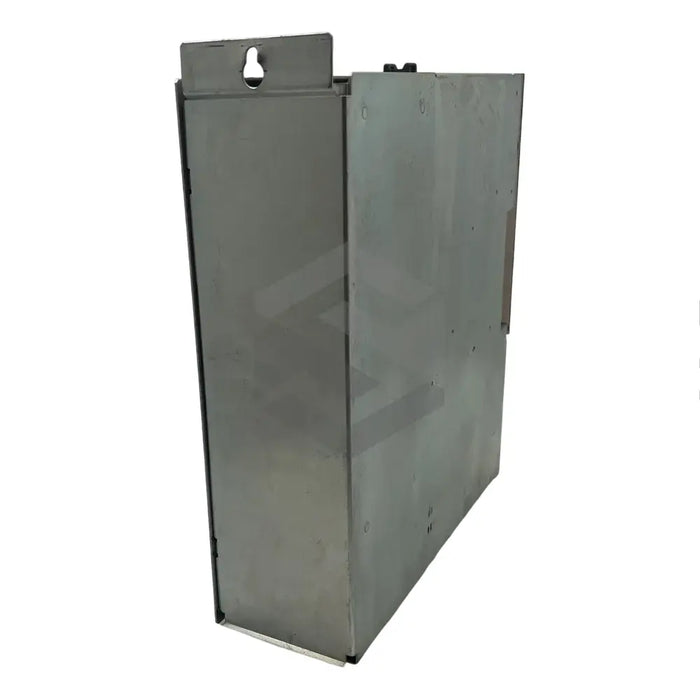

The DDS02.1-W100-RS04-03-FW, a product of Bosch Rexroth, is a DDS drive controller model. The controller's unique design enables the integration of AC servo and main drives under a single supply unit. Compatible with all Indramat supply units that require a 24V DC voltage, it works effectively under rapid-response operations when linked with MDD and MKD synchronous motors or LAR and LAF linear inductance motors. The controller also comprises a SERCOS communications module, which is connected using a fiber optic cable. This cable further provides a means to control the digital drive as well as evaluate reference switches and sensor inputs. The DDS02.1-W100-RS04-03-FW requires mountings in control cabinets, offering protection against solids larger than 50mm. It operates at a rated current of 100A and supports a DC bus voltage of 300V with a ±15% tolerance. The cooling mechanism is air-based and needs a spacious control cabinet. The operational ambient temperature ranges between 0oC and 45oC.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS02.1-W100-RS04-03-FW

Design

Modular

Power Supply

24V DC voltage

Motor Compatibility

MDD and MKD synchronous motors, LAF and LAR linear inductance motors

Use Cases

Machine tools, Printing and packaging machinery, Robotics

Communications Module

SERCOS

Connection

Fiber optic cable

Cooling Method

Heat technology

Motor Feedback

Resolver feedback

Rated Current

100A

Recommended DC Bus Voltage

300V with a ±15% tolerance

Mounting

Control cabinets

Protection Category

IP 10 according to DIN 40 050

Ambient Temperature

0oC and 45oC.
