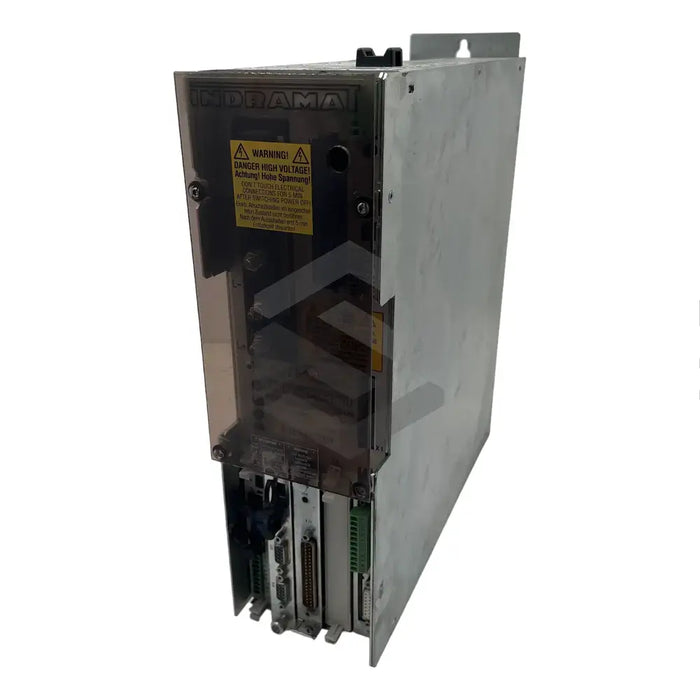

C image of DDS02.1-W150-DS24-03-FW | Main (Front Left)

DDS02.1-W150-DS24-03-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-W150-DS24-03-FW is a highly efficient digital drive controller crafted by industry giant Bosch Rexroth Indramat, renowned for their advanced automation applications and tools. This device, part of the DDS series, employs an air-cooling system and is designed for installation in ventilated cabinet setups. The controller requires a 3-phase AC 380 - 460 V power supply, offering a current rating of 150A. With its digital servo feedback system, it delivers superior operational resolution and flexibility. It features an analog interface for improved communication. Connection points on the controller include X5 for DC link circuit, X1 for control voltage bus, X3 for Analog I/O devices, and X4 for motor feedback. An optional module for alarms and fault messages at H1 is included and a separate connection point (X6) is provided for motor temperature monitoring, motor holding brake, and a 24V external power supply module.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital drive controller

Series

DDS

Model

DDS02.1-W150-DS24-03-FW

Version

1

Cooling Method

Air type with forced ventilation system

Installation Zone

Cabinet interior

Current Rating

150A

Power Supply

3-phase AC 380 - 460 V

Feedback System

Digital servo

Interface

Analog

DC Link Circuit Connection (X5)

Present

Control Voltage Bus Connection (X1)

Present

Analog Input/Output Connection (X3)

Present

Motor Feedback Connection (X4)

Present

Optional Module Connection (H1)

Status display, alarm, fault messages

Motor Connection (X6)

Motor temperature monitoring module, motor holding brake, 24V external power supply module

Shipping

Worldwide by Servo Supplier
