DDS02.1-W200-DL20-01-FW

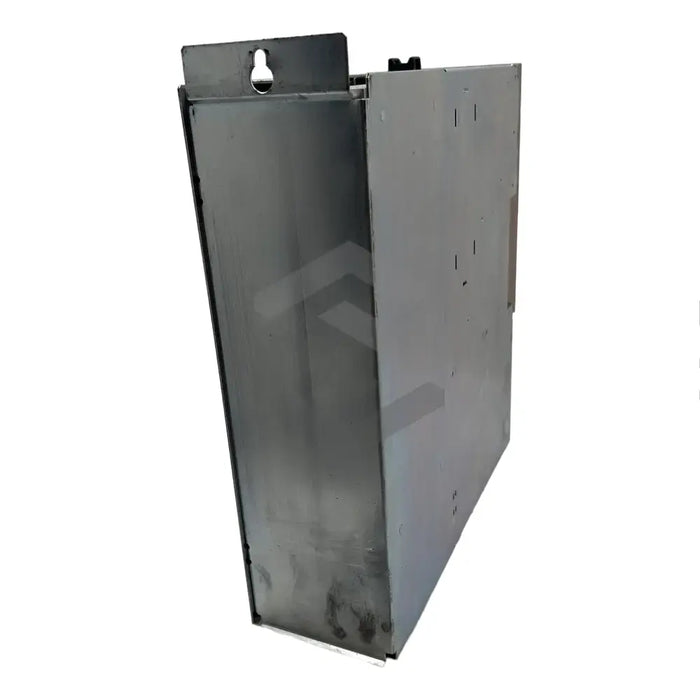

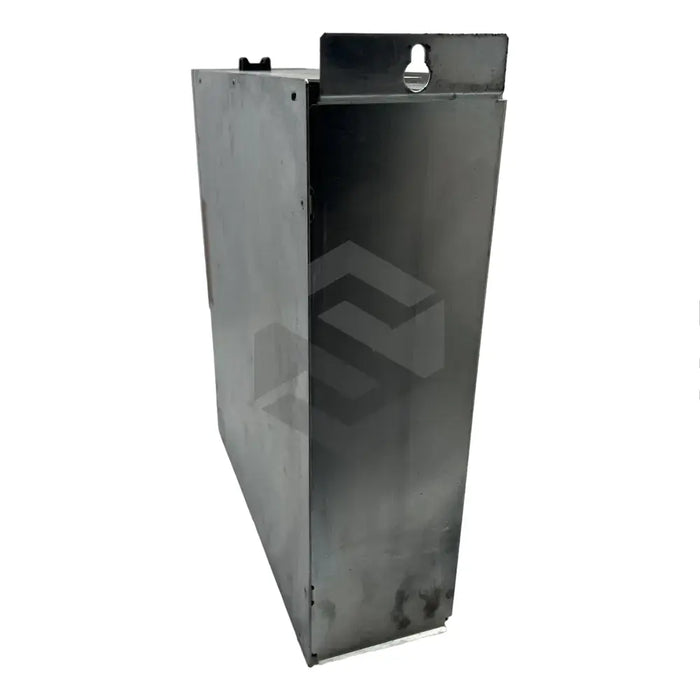

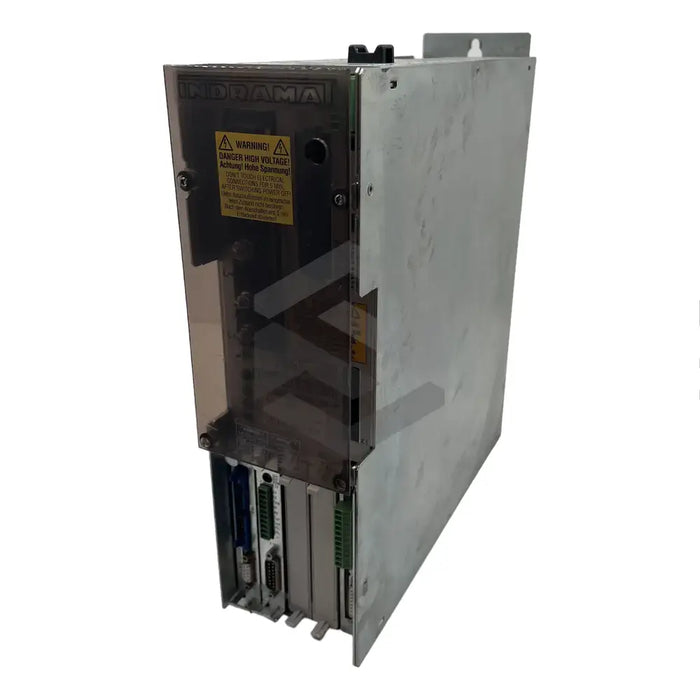

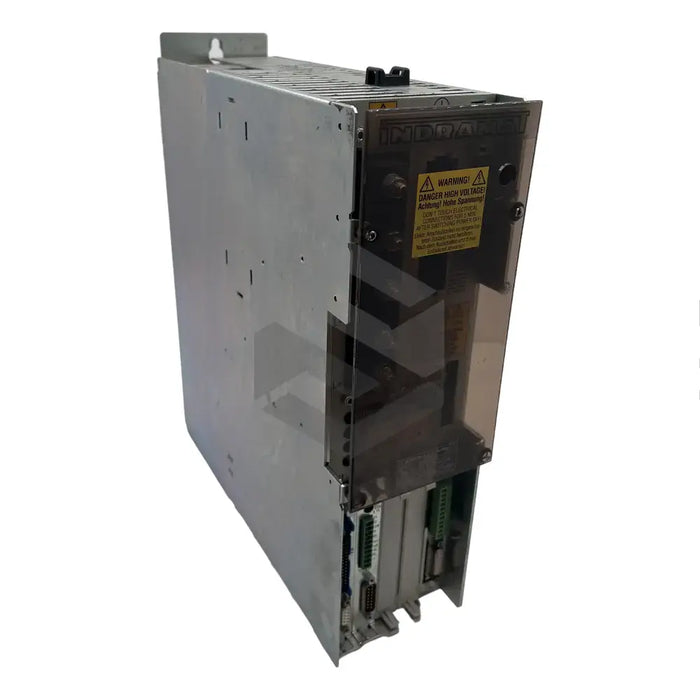

The DDS02.1-W200-DL20-01-FW is a meticulously engineered, modular industrial drive controller developed by Rexroth Indramat. The device demonstrates precision control of electrical motors in industrial settings, functioning optimally in systems such as metal forming, food production, and paper converting machines. To safely shield internal components from large solid materials, the controller features an IP20 protection class housing. Additional housing offering at least IP56 protection is suggested to safeguard against liquid and small solides. The product is devoid of hazardous components including asbestos, mercury, silicon, and chlorinated hydrocarbons.
Two distinct connecting cables link this industrial controller to the motor: a power cable and a motor feedback cable. To avoid electrical interference, separate, standard-compliant wiring of these cables is essential. The controller maintains proper internal temperatures using forced ventilation, necessitating a minimum clearance of 120 millimeters for adequate air circulation. It features slots labeled U1 to U5 for hosting configuration modules such as the software and command communication modules. The device operates at an input current of approximately 65 amperes, capable of reaching a maximum of 200 amperes.
