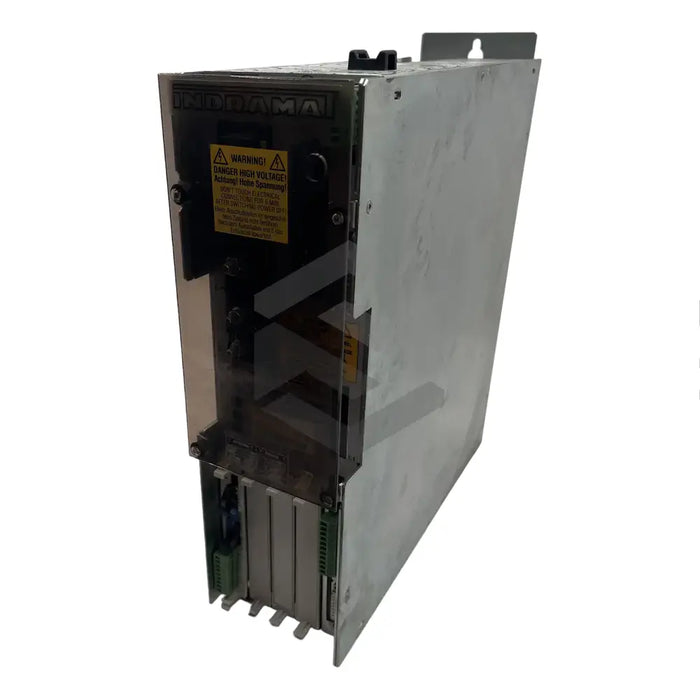

product Main (Front Left) image of DDS02.1-W200-DS01-01/S003

DDS02.1-W200-DS01-01/S003

by Bosch Rexroth Indramat
$4,106.40 - $4,106.40
$4,106.40
$4,106.40 - $4,106.40
$4,106.40
Available, Shipping Varies
The DDS02.1-W200-DS01-01/S003 is a drive controller crafted by Bosch Rexroth Indramat, designed for placement in a control cabinet. It operates at a maximum temperature of 55°C and includes an alphanumeric display for error diagnosis and issue resolution. The controller, embossed with a series 2 code, includes a memory reset button and two outputs for oscilloscope connection. The device operates in a closed-loop mode and requires an active power source for functional diagnostics. It utilizes a 320VDC bus voltage and a SERCOS interface for command communication. The controller accommodates additional plugin cards for enhanced feedback input and assigns unique addresses for proper identification. Data is stored in block format for efficient processing. The product also features a type designation on its rating plate and parameters for mote matching.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product ID: DDS02.1-W200-DS01-01/S003
  • Operating Temperature: 55°C
  • Display: Alphanumeric
  • Series Code: 2
  • Placement: Control Cabinet
  • Memory Reset Button: Present at Top
  • Outputs: Two, Connectable to Oscilloscope
  • Operating Mode: Closed-Loop
  • DC Bus Voltage: 320VDC +/-10%
  • Interface: SERCOS
  • Additional Plug-in Cards: Supported in Second Position
  • Address Range: 1 to 99
  • Data Format: Block
  • Product State: Configured
  • Module Composition: Command Communications Module, Software Module, Additional Plug-in Modules
  • Software Module Slot: U5
  • DC Link Connection: X5 Points
  • Motor Power Connection: X5 Points
  • Rating Plate: Present featuring Type Designation
  • Parameter Matching: Matched to associated motor using various parameters
  • Shipping: Global.
