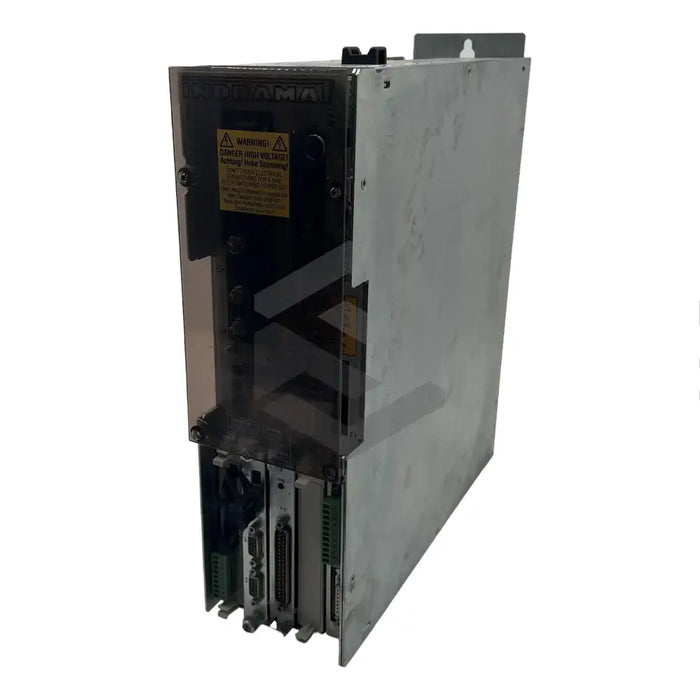

C image of DDS02.1-W200-DS24-03-FW | Main (Front Left)

DDS02.1-W200-DS24-03-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-W200-DS24-03-FW is a drive controller from Bosch Rexroth Indramat's DDS series. This device, which is compatible with various Bosch motors such as MDD, MKD, LAR, and LAF, includes modular hardware and customizable software. It offers a rated output of 200 Amps, and its performance may decrease if the ambient temperature exceeds 45 degrees Celsius or if it's used at over 1000 metres altitude. The controller, designed for vertical installation, measures 355 x 105 x 325 millimeters and is cooled by convection. For adequate heat dissipation, Bosch recommends a clearance of 80mm on the top/bottom, 40mm on sides, and 22.5mm at the rear. The device, which weighs 7.5kgs, supports digital servo feedback and employs SERCOS for command communication. The attached software module can be relocated if necessary. The DDS02.1-W200-DS24-03-FW is suitable for industrial applications such as textiles machinery and packaging equipment. Professional installation of the controller and related equipment is advised.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DDS02.1-W200-DS24-03-FW

Product Type

DDS series drive controller

Compatibility

MDD, MKD, LAR and LAF motor lines by Bosch

Structure

Modular hardware and software

Rated Output

200 Amps

Derating Conditions

Ambient temperature >45 degrees Celsius or altitude >1000 meters

Mounting Style

Vertical

Dimensions

355 x 105 x 325 millimeters

Cooling Method

Convection

Recommended Spacing

80 millimeters top/bottom, 40 millimeters left/right, 22.5 millimeters rear

Weight

Approximately 7.5 kilograms

Servo Feedback

Digital

Communication Module

SERCOS

Data Rate

2 / 4 Mbps

Network Topology

Ring

Firmware

Located on the software module

Applications

Textiles, machine tools, packaging machinery and handling machines

Installation Requirement

Professional installation required
