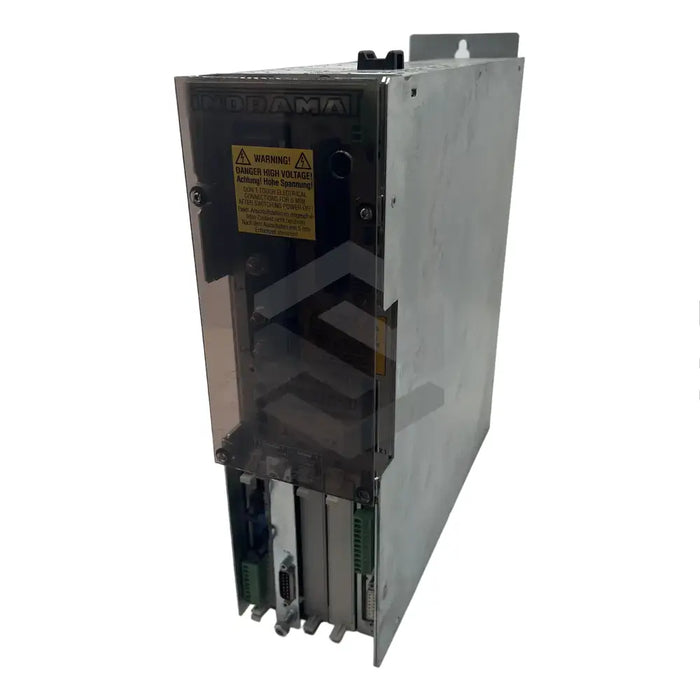

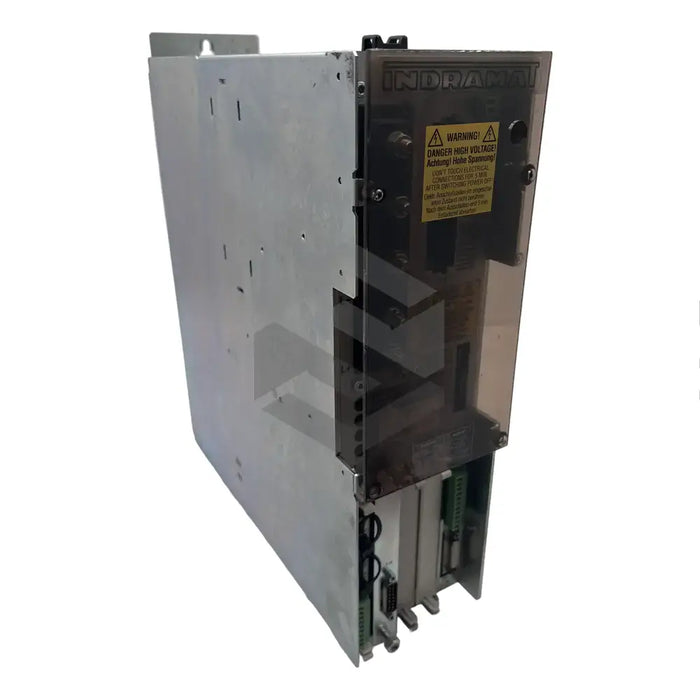

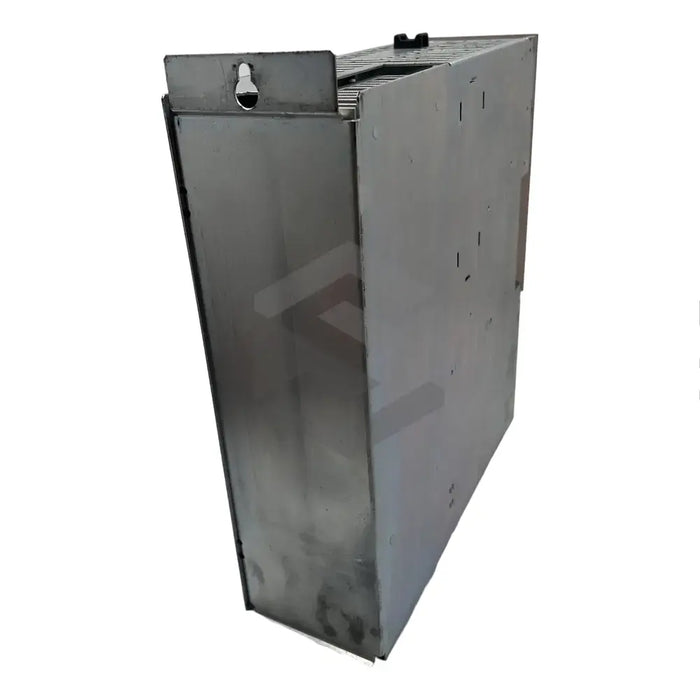

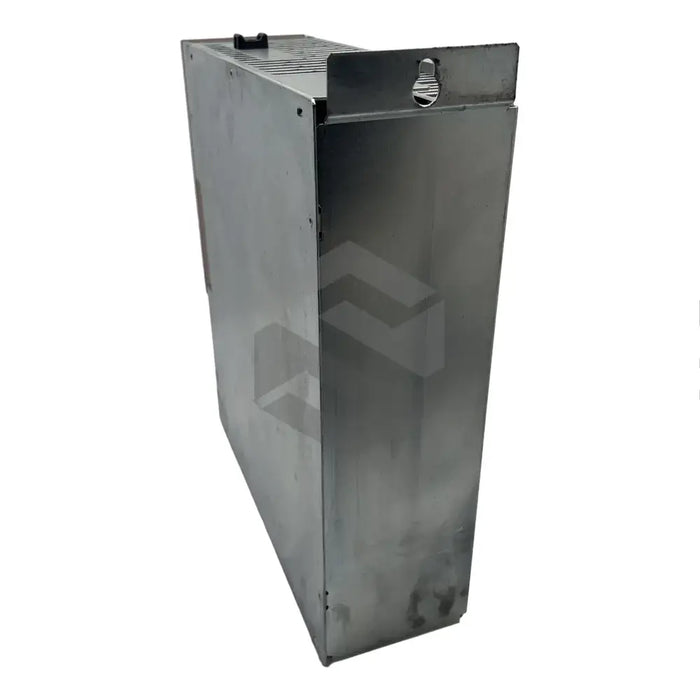

DDS02.1-W200-DS37-01-FW

Original price $7,164.00 - Original price $7,164.00
Original price
$7,164.00
$7,164.00 - $7,164.00
Current price $7,164.00
In Stock, Ships 3 - 5 Days
Request a quote
The DDS02.1-W200-DS37-01-FW, developed by Bosch Rexroth Indramat, is an air-cooled drive controller with integrated heat technology to disperse heat inside an enclosure, potentially requiring a larger cabinet and air conditioning to maintain the ambient temperature. It operates optimally between 0 and 45 degrees Celsius, with a maximum permissible ambient temperature of 55 degrees Celsius. It can be stored and transported within a temperature range of -30 to 85 degrees Celsius. This controller has a rated output of 200 Amps and is compatible with a 24 Volts DC regulated power supply. The drive features incorporated digital servo feedback and a SERCOS command communication module for operating digital AC servo motors. The controller operates best at an elevation of 1000 meters with rated data and up to 5000 meters with derated data. Its IP20 protection category means it isn't safeguarded against water penetration, necessitating a suitable cabinet for installation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model: DDS02.1-W200-DS37-01-FW
  • Cooling System: Air
  • Heat Technology: Inside Cabinet Dissipation
  • Operating Temperature Range: 0 to 45 degrees Celsius
  • Maximum Operating Temperature: 55 degrees Celsius
  • Storage and Transport Temperature: -30 to 85 degrees Celsius
  • Max Installation Elevation with Rated Data: 1000 meters
  • Max Installation Elevation with Derated Data: 5000 meters
  • Max Permissible Relative Humidity: 95%
  • Protection Category: IP20
  • Output Rate: 200 Amps
  • Regulated Power Supply: 24 Volts DC
  • Feedback System: Integrated Digital Servo
  • Communication Module: SERCOS
  • Communication Media: Fiber Optics
  • SERCOS Data Rates: 2 Mbps and 4 Mbps
  • Applications: CNC machine tool axes, electronic transmissions, grinding machines, robots, handling systems and assembly equipment.
