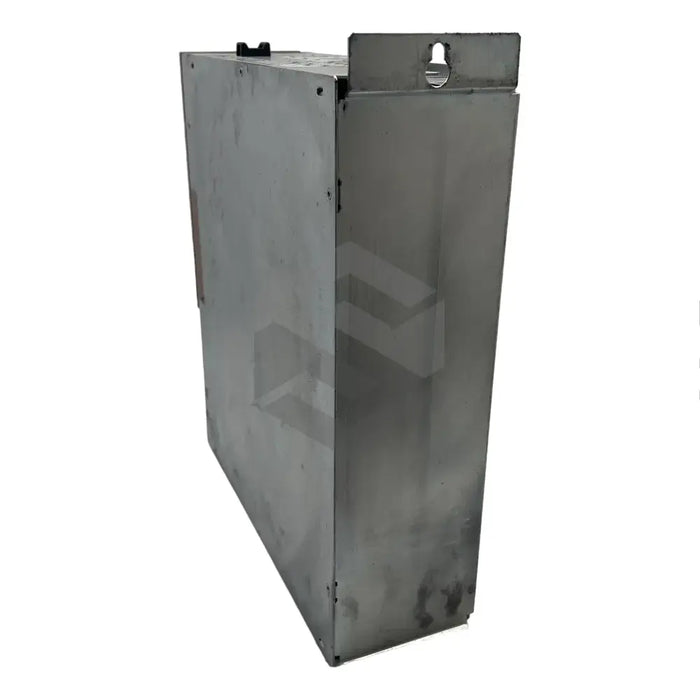

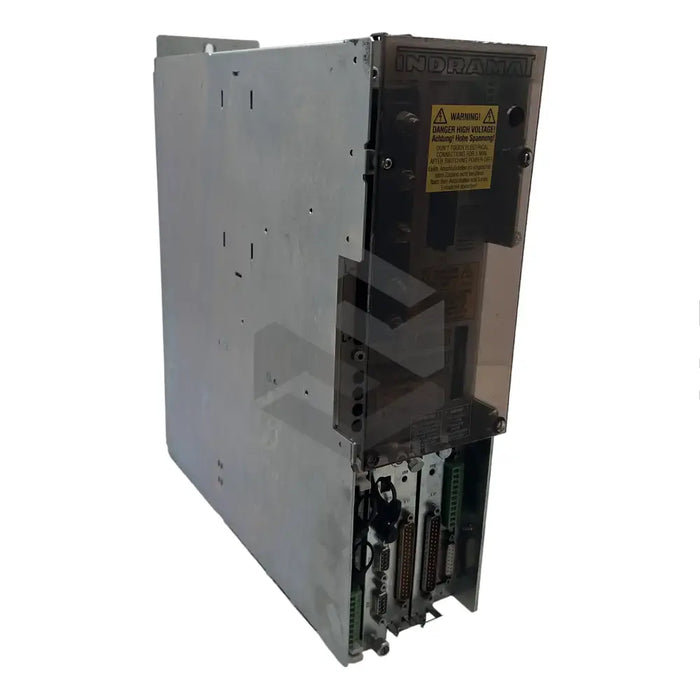

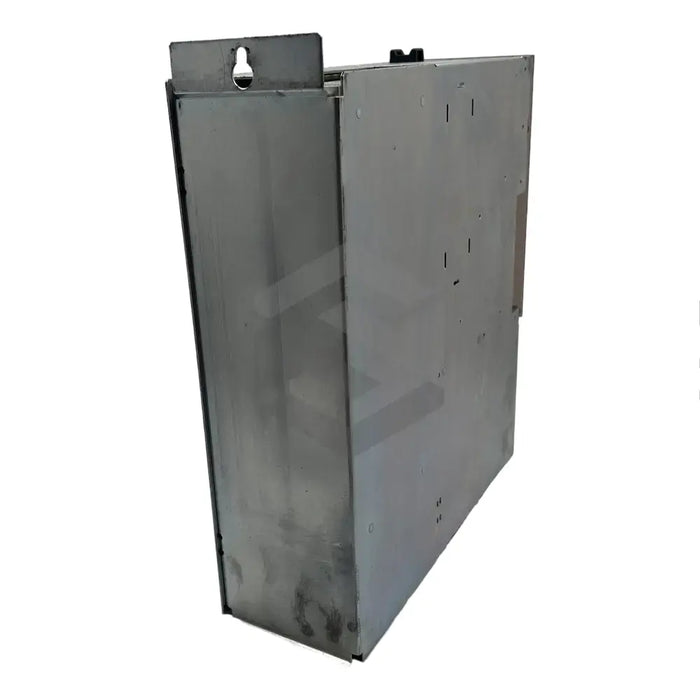

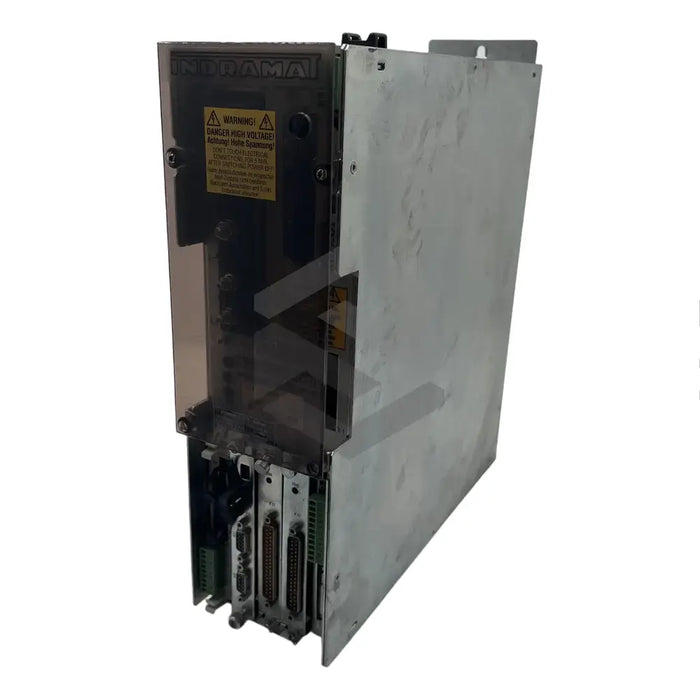

C image of DDS02.1-W200-DS45-01-FW | Main (Front Left)

DDS02.1-W200-DS45-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-W200-DS45-01-FW is a drive controller created by Bosch Rexroth Indramat. This product, featuring a modular design, flexibly combines with AC servo and main drives, resulting in a compact package using a singular supply unit. Its effectiveness is demonstrated when paired with MDD, MKD, and LAR AC motors — ideal for machine tools, textiles, robotics, printing and packaging machinery, and handling machines. Key components include the basic drive controller unit, plugin modules, and software modules. It uses Digital Servo Feedback for motor feedback and communicates via a SERCOS interface controlled with fiber optic cables. At a rated current of 200 A, it should be connected to a regulated DC 24 V Indramat supply unit. Within the supply unit, the software module contains firmware and drive parameters that can be replicated across other units. This drive controller is designed for mounting in control cabinets or enclosed housing, offering protection against solid objects over 50mm in diameter. Heat dissipation is ensured within the control cabinet.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

DDS Drive Controller

Module Design

Flexible combination with AC servo and main drives

Ideal Uses

Machine tools, textile, printing and packaging machinery, robotics, and handling machines

Composition

Basic unit of the drive controller, plugin modules, software modules, and firmware

Motor Feedback

Digital Servo Feedback

Communication Interface

SERCOS interface controlled with fiber optic cables

Rated Current

200 A

Power Supply

Regulated DC 24 V voltage from an Indramat supply unit

Software Module

Contains firmware and drive parameters, can be used interchangeably with another unit

Firmware

Defines functional features of the drive controller, must be ordered separately

Mounting Type

Control cabinet or closed housing

Protection Class

IP 10 according to DIN 40 050, protected against solid objects over 50 mm in diameter, not water or hand-resistant

Heating System

Heat technology, heat is dissipated within the control cabinet
