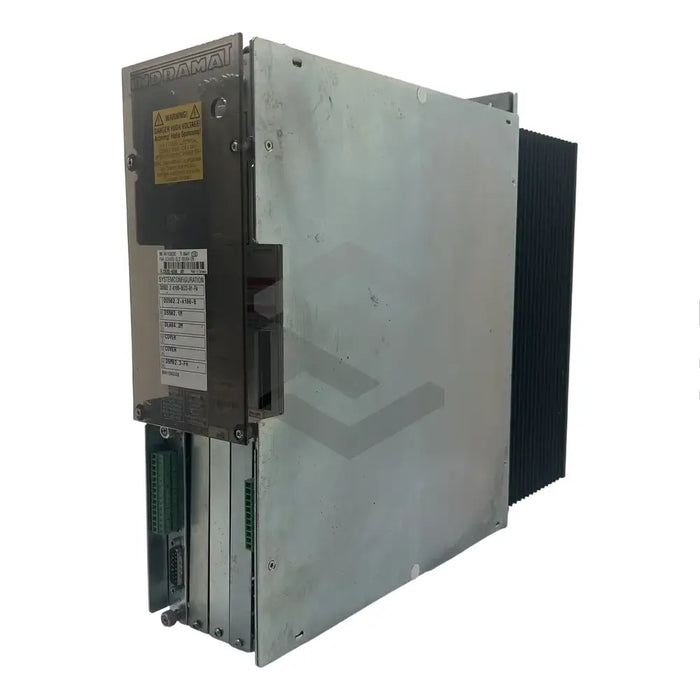

C image of DDS02.2-A100-BA01-01-FW | Main (Front Left)

DDS02.2-A100-BA01-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth Indramat's industrial control system product, the DDS02.2-A100-BA01-01-FW Drive Controller, integrates equably with synchronous, servo, and spindle motors. Designed to operate under 1000 meters altitude and less than 25 g/m3 humidity, this device incorporates an analog interface communication module and motor feedback. Though its IP20-rated housing offers protection from dust particles, the device should be installed in an enclosed cabinet due to its non-fluid resisting nature. It operates on a 24V DC voltage from either AC servo or main motor power and carries a bus voltage of 300 V DC. Emitting 97 watts at 90 A constant current, the drive controller maintains EMC compliance to minimize radio frequency interference. With the ability to operate at a peak current of 100 A and a steady current of 80 A, it can easily control servo motor speed and position. Suitable for machine tools, textiles, robotics, and handling applications, it can withstand temperatures up to +45°C and humidity levels of 95%.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model Number

DDS02.2-A100-BA01-01-FW

Maximal Installation Height

1000 meters

Absolute Humidity at Installation Zone

Under 25 g/m3

Communication Mode

Analog Interface

Motor Feedback

Included

Dust Protection

IP 20-rated Housing

Electricity Loss at 90A Constant Current

97 watts

EMC Compliant

Yes

Design Flexibility

Allow interchangeable integration of AC servo and main drives

Bus Voltage

300 V DC

Input Voltage

24 V DC

Peak Current

100 A

Steady Current

80 A

Resistant Temperature

Up to +45°C

Relative Humidity Resistance

Up to 95%

Usage Application

For MDD and LAR alternating current motors

Industry Usage

Machine tools, textiles, robotics and handling equipment.
