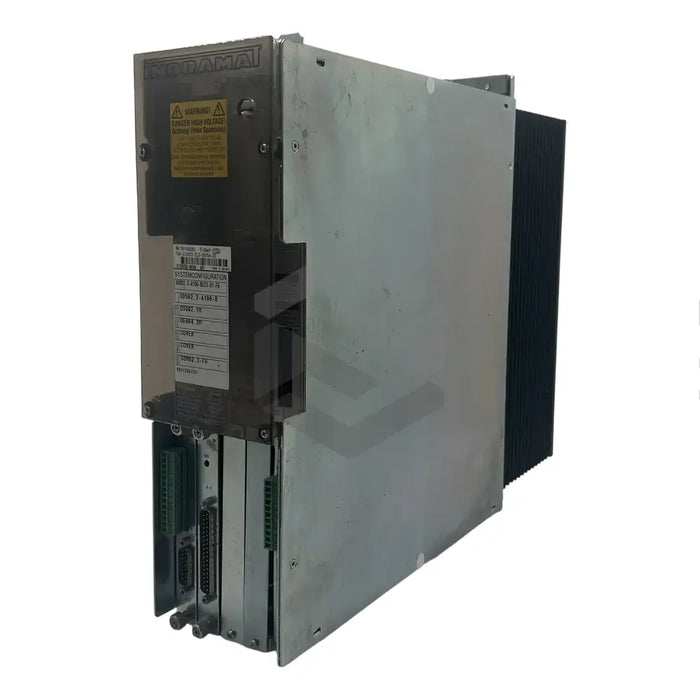

C image of DDS02.2-A200-BA03-01-FW | Main (Front Left)

DDS02.2-A200-BA03-01-FW

by Bosch Rexroth Indramat
$8,441.96 - $8,441.96
$8,441.96
$8,441.96 - $8,441.96
$8,441.96

In Stock, Ships 1 - 3 Days

The DDS02.2-A200-BA03-01-FW, manufactured by Bosch Rexroth Indramat, is a model from the Bosch DDS series designed specifically for motor control in commercial scenarios. As a digital drive controller, it has been crafted for cold technology, using a heat sink to dissipate the heat generated during operations. Its 200 Amps output is adaptable per various requirements, and the model supports multiple command communication modules including SERCOS, analog, and Interbus. Feedback options include digital servo and resolver feedback, and its maximum continuous current is 105 Amps when its peak current is 160 Amps. This model's design does not require additional fans or blowers as it relies on natural convection. Installation flexibility is facilitated by optional heat sink placement and a DC bus voltage of 300 Volts DC. The basic unit consumes 150 milliamps at +15 and -15 Volts DC, and 500 milliamps at 24 Volts DC.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS02.2-A200-BA03-01-FW

Product Type

Digital Drive Controller

Series

2

Version

2

Controller Function ID

03

Function ID Version

01

Rated Output

200 Amps

Application

Motor Control

Archictecture

Modular

Cooling Technology

Cold Technology with Heat Sink

Heat Dissipation

20% Inside the Cabinet (if Heat sink is outside)

Communication Module

Analog

Motor Feedback Options

Digital Servo Feedback and Resolver Feedback

DC Bus Voltage

300 Volts DC

Peak Current

200 Amps (85 Amps Continuous)

Alternative Peak Current

160 Amps (105 Amps Continuous)

Current Consumption

150 milliamps at +15 Volts DC, 150 milliamps at -15 Volts DC and 500 milliamps at 24 Volts DC.
