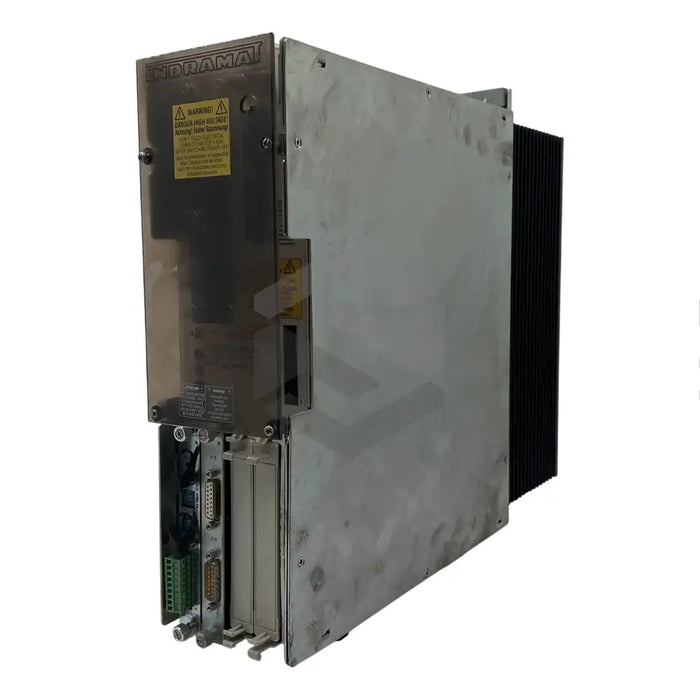

C image of DDS02.2-A200-BE09-01-FW | Main (Front Left)

DDS02.2-A200-BE09-01-FW

by Bosch Rexroth Indramat
$8,441.96 - $8,441.96
$8,441.96
$8,441.96 - $8,441.96
$8,441.96

In Stock, Ships 1 - 3 Days

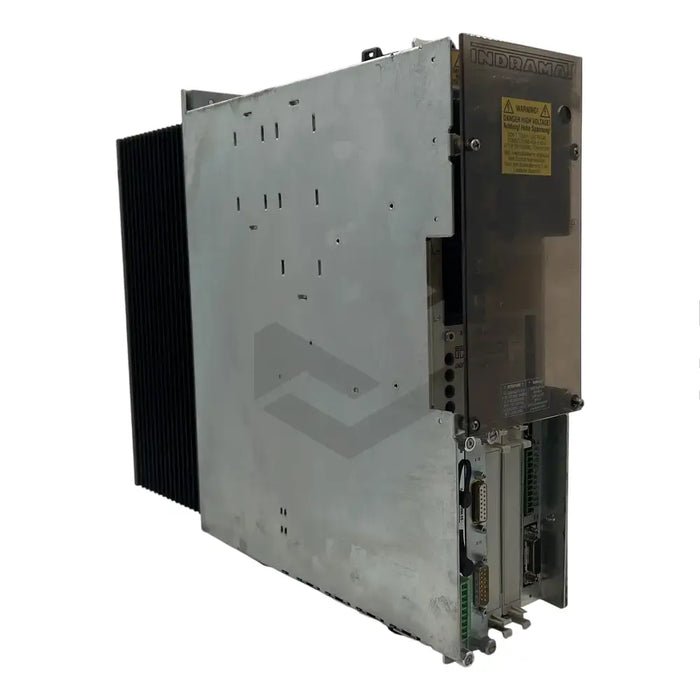

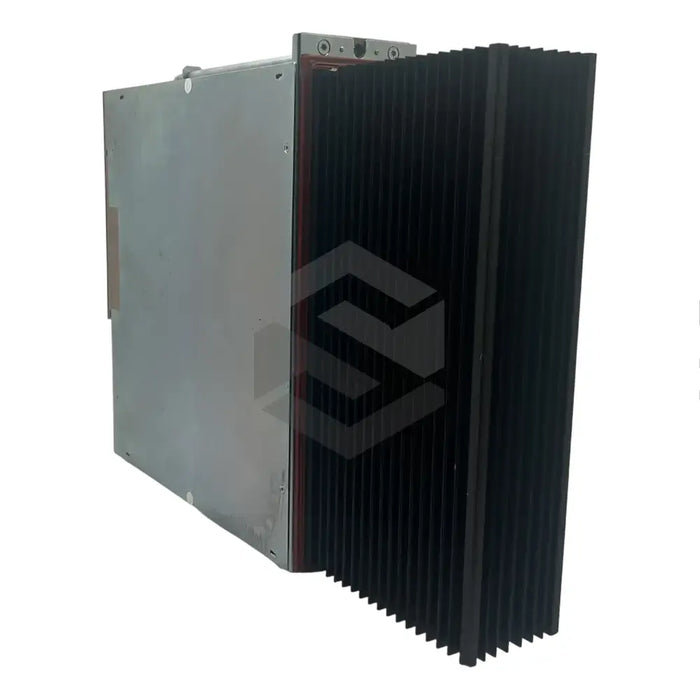

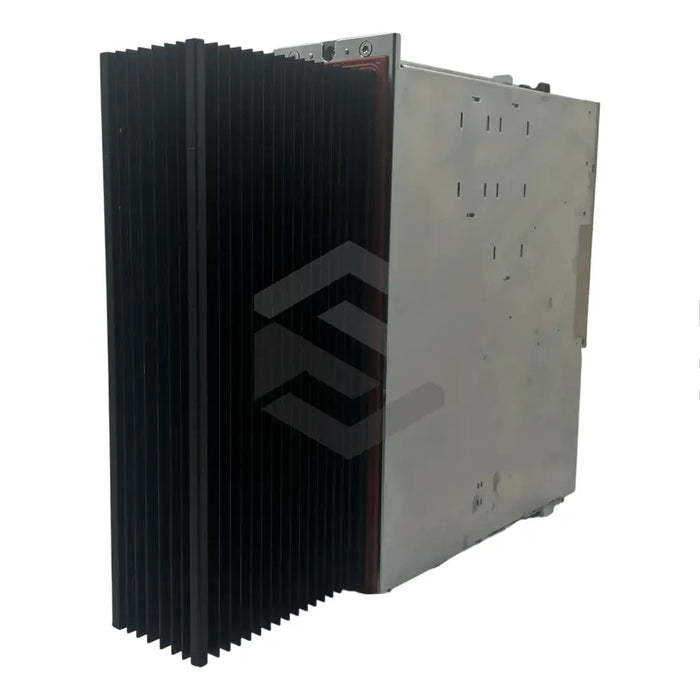

The DDS02.2-A200-BE09-01-FW is a modular drive controller crafted by Bosch Rexroth Indramat. The controller features various slots for required and additional modules, including command communication and software modules. It leverages the SERCOS standard for real-time communication between control devices, using fiber optic technology and supporting 2 Mbps and 4 Mbps data rates. The device has the ability to cool via natural convection and includes an external heat sink, which reduces in-cabinet heat dissipation and allows for smaller cabinet installations. With rated data, the permissive ambient temperature goes up to 45°C, whereas with derated data it increases to 55°C. The controller's firmware must be separately purchased. The controller's rated output is 200 Amps and it possesses an IP20 housing that does not guard against moisture. Installation and operation should only be carried out by qualified technical personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

DDS02.2-A200-BE09-01-FW Modular Drive Controller

Basic Unit Configuration

Slots for Designated and Optional Modules

Designated Slots

U1 (Command Communication Module), U5 (Software Module)

Optional Slots

U2 to U4

Installed Command Communication Module

SERCOS

Communication

Real-time Serial via Fiber Optic Technology

Supported Data Rates

2 Mbps and 4 Mbps

Network Topology

Ring

Motor Feedback Options

Resolver Feedback, Digital Servo Feedback

Cooling

Natural Convection with Heat Sink

Heat Sink Location

Mounted Outside Control Cabinet

Heat Dissipation Inside Cabinet

20% of total

Permitted Ambient Temperature (Rated Data)

0 to 45°C

Permitted Ambient Temperature (Derated Data)

55°C

Firmware

Ordered Separately

Output

200 Amps

Protection Level

IP20 (as per EN 605209), No protection against moisture ingress

User Requirement

Trained and Qualified Technical Personnel.
