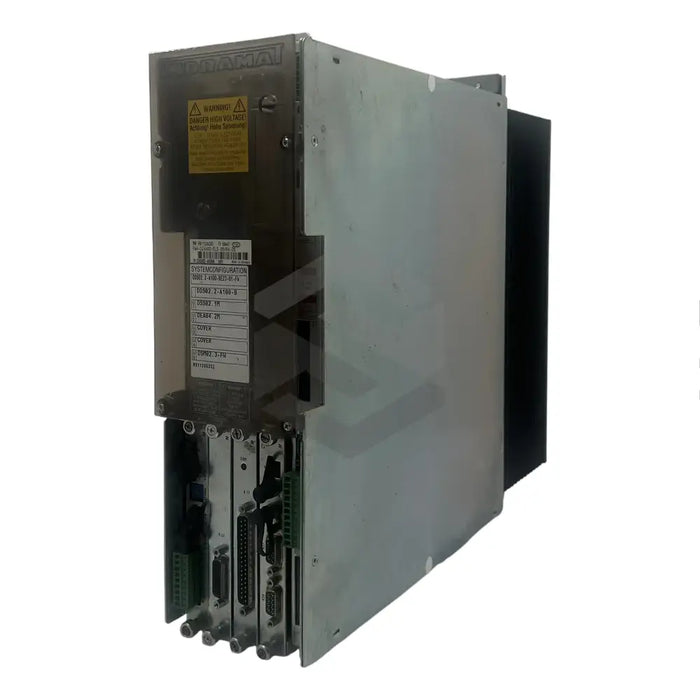

C image of DDS02.2-A200-BE77-00-FW | Main (Front Left)

DDS02.2-A200-BE77-00-FW

by Bosch Rexroth Indramat
$8,441.96 - $8,441.96
$8,441.96
$8,441.96 - $8,441.96
$8,441.96

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat DDS02.2-A200-BE77-00-FW is an air-cooled DDS drive controller, rated at 200 Amps. Equipped with an external heat sink, it efficiently dissipates up to 80% of generated heat outside its installation cabinet while leaving just 20% of the heat to dissipate internally. Contained in an IP20 rated enclosure, it requires mounting inside a cabinet for added protection against dust and moisture. It's operational in a temperature range from 0 to 45 degrees Celsius and at altitudes below 1000 meters, with derating applicable in higher conditions. This controller supports two motor feedback types, digital servo and resolver, with various communication modules available including an installed SERCOS interface. Its firmware resides on a removable software module, enabling quick drive commissioning. Powered by 24 Volts DC, it requires a regulated DC supply. Installation and handling should be conducted by qualified personnel only.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

DDS02.2-A200-BE77-00-FW

Cooling Method

Air-cooled

Rated Amps

200 Amps

Heat Dissipation

80% outside, 20% inside

Enclosure Rating

IP20

Ambient Temp Range

0 to 45 degrees Celsius

Derating Temp

45 to 55 degrees Celsius

Max Operating Temp

55 degrees Celsius

Altitude Derating

Above 1000 meters

Max Operating Altitude

5000 meters

Motor Feedback Supported

Digital Servo Feedback, resolver feedback

Command Communication Modules Available

Analog interface, Interbus interface, SERCOS interface, single-axis positioning control

Installed Communication Interface

SERCOS

Firmware Storage

Software module on slot U5

DC Power Requirement

24 Volts DC

Installation Advice

To be handled and installed by qualified personnel only.
