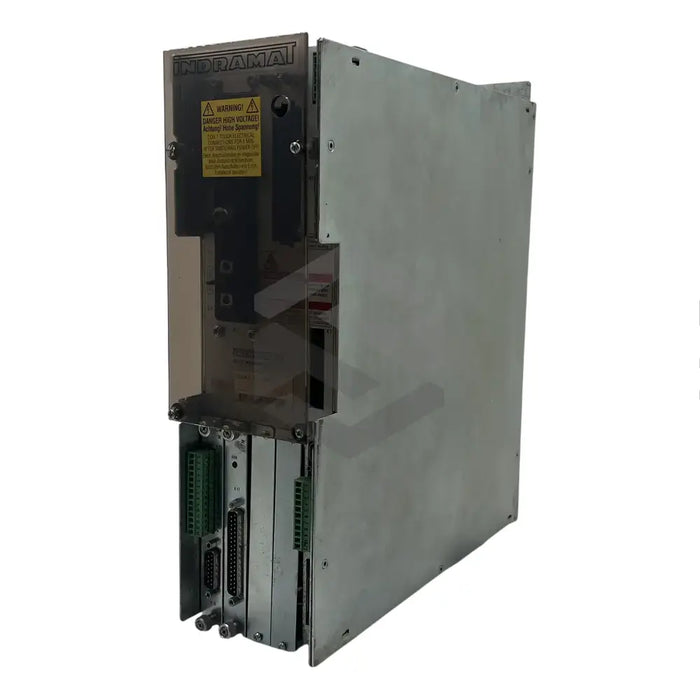

C image of DDS02.2-W015-BA03-01-FW | Main (Front Left)

DDS02.2-W015-BA03-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth's DDS02.2-W015-BA03-01-FW is a drive controller explicitly designed to pair with the company's motor. It integrates via a motor power cable and motor feedback cable, relying exclusively on a 24VDC regulated power supply. The controller is intended for commissioning post careful perusal of the corresponding documentation, ensuring a permanent earth wire connection, as it may have risky exposed live parts. Operating in an ambient temperature span of 0°C-45°C, it must be installed within a control cabinet and provides a line code 2 functionality, with firmware supplied separately. With a weight of 7.5kg, the controller is safeguarded against external solid objects larger than 50mm. Following installation, a minimum clearance of 80mm is needed above and beneath the device in the control cabinet. Compatible with several controllers, it possesses a front panel H1 LED display and an S1 fault reset button and requires separate signal and supply line routings. The product offers worldwide dispatch and one-year backup support.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DDS02.2-W015-BA03-01-FW

Cable Connection Type

Motor power cable and motor feedback cable

Power Supply Requirement

24VDC regulated power supply

Voltage Warning

Caution for parts with voltages of more than 50V

Installation Directive

Check permanent connection of the earth wire as per the connection diagram

Protection Provided

Protection against indirect contact and penetration of external solid objects with diameters of more than 50mm

Line Code

2

Operating Temperature

0°C to 45°C with rated data

Placement Requirement

Inside a control cabinet

Weight

Approximately 7.5kg

Firmware Availability

Separate subitem required

Energy Loss Factor

Based on the continuous current of the motor in standstill mode

Shipping Availability

Worldwide with one-year backup support

Mounting Clearance

80mm above and below inside the control cabinet

Supply Association

Possible to associate several controllers with a single power supply unit

LED display and Fault Reset Button

H1 LED display and S1 fault reset button present

Phase Requirement

Three-phase device

Signal and Supply Line Routing

Separate routes required

High Voltage Test Preparation

Removal of unit connections required

Connection to Adjacent Unit

Established by means of DC bus rails.
