S image of DDS02.2-W015-BE06-01-FW

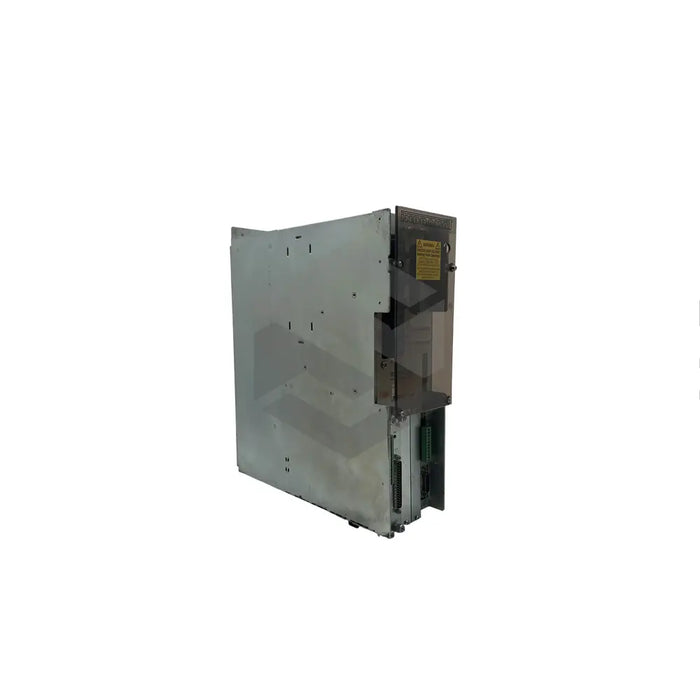

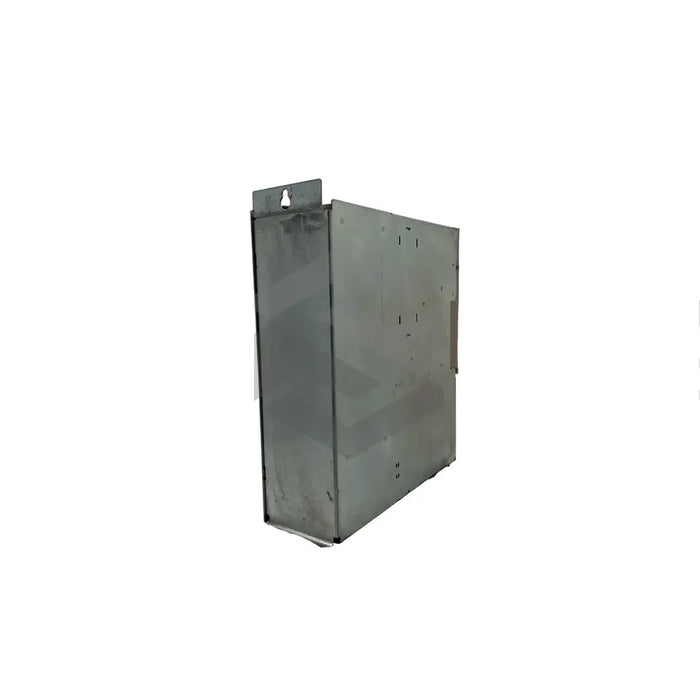

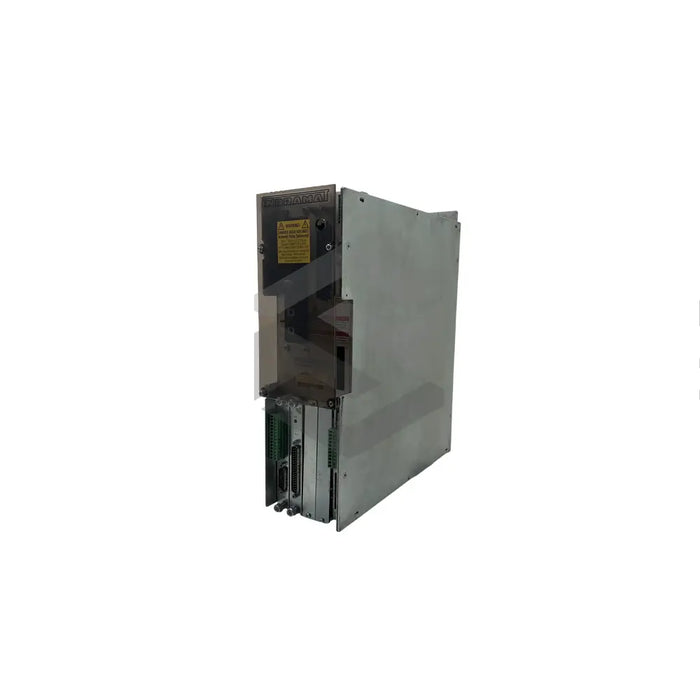

DDS02.2-W015-BE06-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.2-W015-BE06-01-FW drive controller, created by Bosch Rexroth Indramat, employs an RS 232 interface at its X3 port for PC or VT-100 terminal connectivity. This unit should primarily use the company's own motor power cables for the AC motor connection, which have a maximum extension of 75m. Equipped with two analog diagnostic outputs, this device can produce internal drive variables for preliminary testing such as device commissioning. The device should never directly connect to a contact coil and can operate best at temperatures up to 55°C. Equipped with digital and resolver feedback systems, this unit functions optimally with two control inputs for relay coils rated at 1.5W power and 20-30VDC voltage. To facilitate secure transportation, shock-absorbing supports are used. This controller employs an E-DDS 2 electrical connector kit and has IP20 protection according to EN 60529 standards. The product is designed to control the holding brake of the associated motor.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS02.2-W015-BE06-01-FW

Interface Type

RS 232

PC or VT-100 Terminal Connection

X3 connecting point

Power Cable Length

75m

Number of Analog Diagnostic Outputs

Two

Temperature Range

Up to 55°C

Control Inputs for Relay Coils

Two (1.5W power rating, 20VDC to 30VDC voltage rating)

Positioning

Right or Left of the Motor

Motor Type

Digital Servo Feedback and Resolver Feedback

Current Consumption

150mA at +/-15VDC

Communication Interface

SERCOS

Degree of Protection

IP 20 as per EN 60529 standards

Transportation

Shock-absorbing Supports

Connection Accessory Kit

E-DDS 2

Feedback Connection

X4 connecting point

Connected Motor Monitoring

Thermistor Connection

Holding Brake Control

Yes
