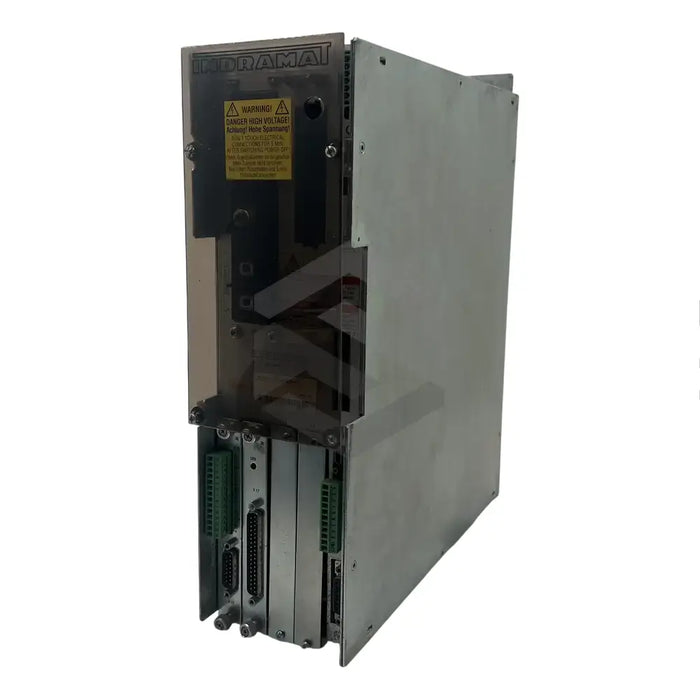

C image of DDS02.2-W015-BE23-01-FW | Main (Front Left)

DDS02.2-W015-BE23-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.2-W015-BE23-01-FW, manufactured by Bosch Rexroth Indramat, is a digital servodrive featuring a modular design and utilizing the DIAX03 firmware. This product must be connected to an AC motor via a proprietary power cable, which incorporates both a protective conductor connection and a motor power connection. The device can be connected either through a terminal box or directly via a connector, with a maximum cable length of 75 meters. Its operational status is determined by the closing of the ready-to-operate Bb contact and motor feedback is facilitated through the X4 connector. Diagnostic warnings and errors are displayed using coded messages. Cooled by air circulation within the control cabinet, this unit also uses a SERCOS interface for command communications, and control is synchronized via a single-phase loop. Installation requires a sizeable control cabinet, with a potential need for air conditioning. The product is suitable for installations at elevations of up to 1,000 meters.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS02.2-W015-BE23-01-FW

Firmware

DIAX03

Design

Modular

Motor Power Cable

1 protective conductor connection, 3 motor power connection lines

Maximum Cable Length

75m

Startup Indicator

Ready-to-operate Bb contact closure

Motor Feedback Connection

X4 connector

Error Diagnosis Indicator

Letter F followed by a three-digit number

Warning Diagnosis Indicator

Letter E followed by a three-digit number

Current Rating

15A

Cooling Mechanism

Internal, air circulation inside control cabinet

Command Communications

SERCOS interface including sensor inputs, travel range limit switches, reference switches

Installation Requirements

Large control cabinet, potential need for air conditioning

Mounting Requirements

Minimum

Control Synchronization

Single-phase control loop

Maximum Installation Elevation

1,000m with rated data

Energy Loss

Depends on the maximum continuous current of the connected motor at standstill.
