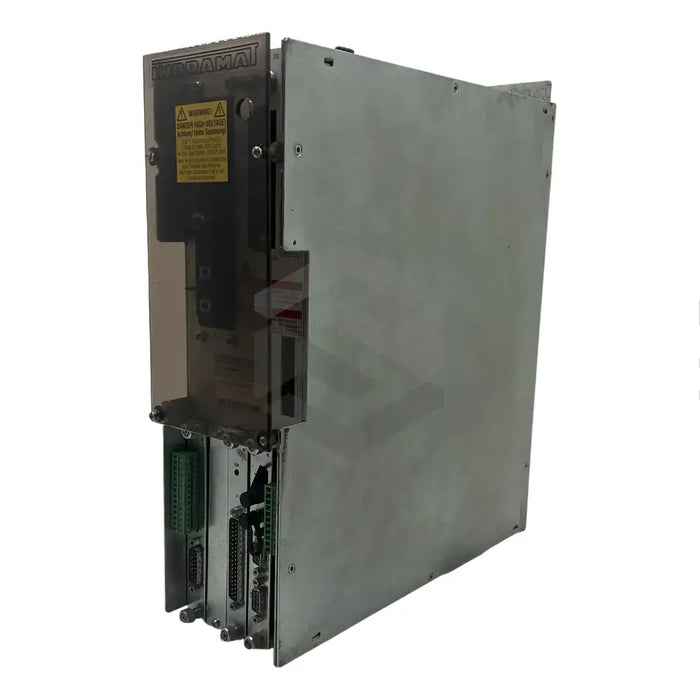

C image of DDS02.2-W015-BE24-01-FW | Main (Front Left)

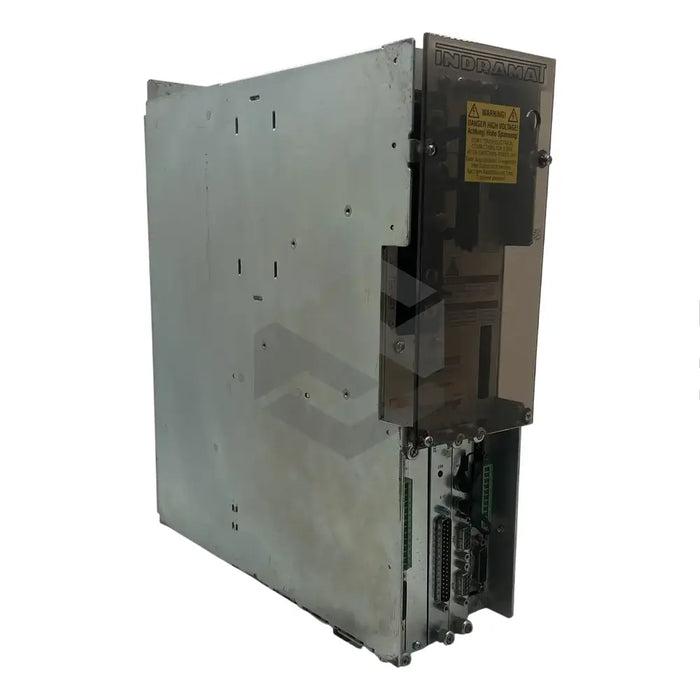

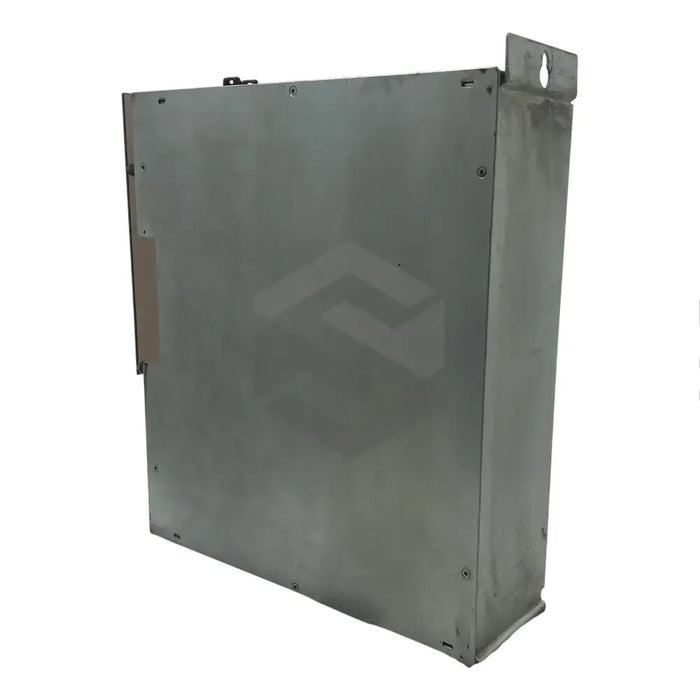

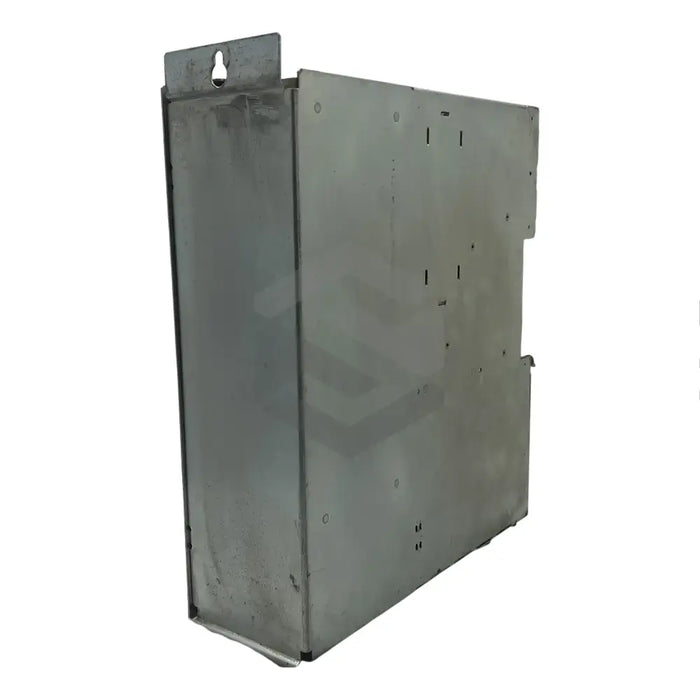

DDS02.2-W015-BE24-01-FW

by Bosch Rexroth Indramat
$4,879.23 - $4,879.23
$4,879.23
$4,879.23 - $4,879.23
$4,879.23

In Stock, Ships 1 - 3 Days

Introducing the DDS02.2-W015-BE24-01-FW drive controller, a high-tech product designed and manufactured by Bosch Rexroth Indramat. This device comes with a SERCOS interface command communication module and operates with a peak current of 1s A and a continuous current of 15 A. Enhanced with a rapid response control system, it also features an external heat-dissipation control cabinet. This model, equipped to handle a constant current of 15 A, dissipates 110 Watts in a control cabinet setting. It is adaptable with modules that can be placed in one of its five slots, U1-U5, based on the functional requirements. Designed to synchronize with Rexroth power supplies, it is cautioned against use with unsanctioned TVM power supplies. This 7.5 kilograms model functions optimally within a temperature range of 0 to 45 degrees Celsius and a maximum relative humidity of 95 percent. It comes with digital and resolver servo feedback and functions up to 1000 meters above sea level. Note, its operating software and firmware must be acquired separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controllers, Drive Converters, Inverters, Control Sections, Brake Choppers

Model

DDS02.2-W015-BE24-01-FW

Command Communication Module

SERCOS Interface

Peak Current

1s A

Continuous Current

15 A

Control System

Rapid Action

Cooling

Control Cabinet (externally)

Power Loss

110 Watts at 15 A

Additional Modules Slots

5 (U1–U5)

Weight

7.5 kilograms

Operating Temperature

0 to +45 degrees Celsius

Maximum Relative Humidity

95%

Maximum Operational Altitude

1000 meters above sea level

Servo Feedback

Digital and Resolver

Software and Firmware

Need to be acquired separately.
