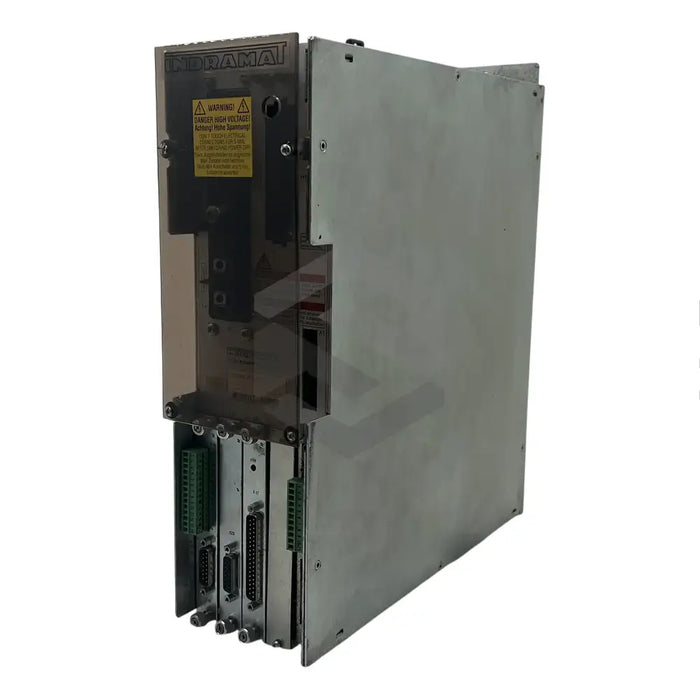

C image of DDS02.2-W015-BE33-01-FW | Main (Front Left)

DDS02.2-W015-BE33-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.2-W015-BE33-01-FW is a DDS series drive controller from Bosch Rexroth Indramat, aimed for motor control in industrial settings. The system can be run by multiple controllers using a single 24V DC output power supply. With a modular design, it can satisfy a variety of needs through five slots for software, communication, and optional modules. The SERCOS real-time communication fiber optic module is installed in the product. Additionally, this drive controller supports motor feedback through digital servo and resolver techniques. With a rated output of 15 Amps, this only applies under conditions specified in the product documents. The unit has an integrated heat technology that allows air to enter from the bottom and exit from the top. Attaining dimensions of 355 x 105 x 325 mm, Bosch recommends 80mm spacing at the top and bottom and 40 mm in front for optimum ventilation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

DDS Series Drive Controller

Power Supply

Regulated 24 Volts DC output

Architecture

Modular

Slots for Modules

5

Software Module

Removable

Command Communication Module

SERCOS

Topology

Ring

Motor Feedback Methods

Digital Servo Feedback and Resolver Feedback

Rated Output

15 Amps

Heat Technology

Dissipates heat inside the control cabinet

Air Inlet

Bottom side of the controller

Air Outlet

Top side of the controller

Dimensions

355 x 105 x 325 millimeters

Recommended Spacing

80 millimeters top and bottom, 40 millimeters in front
