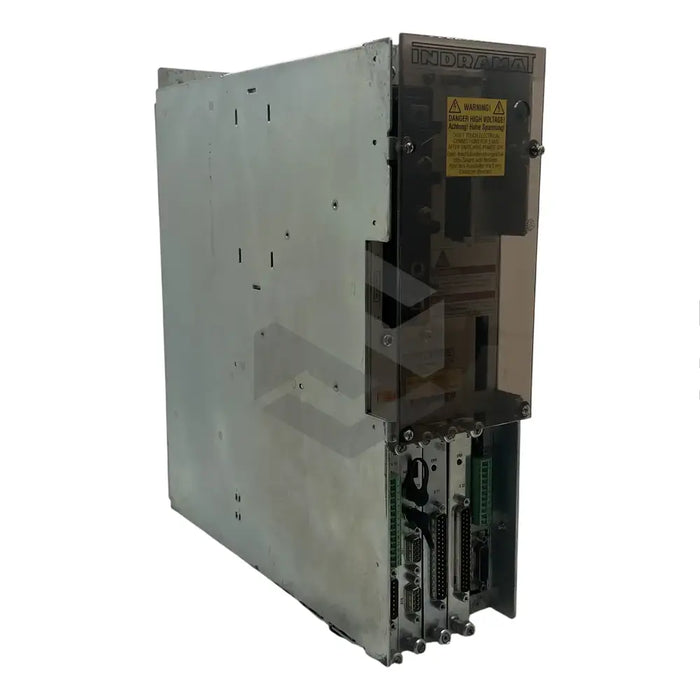

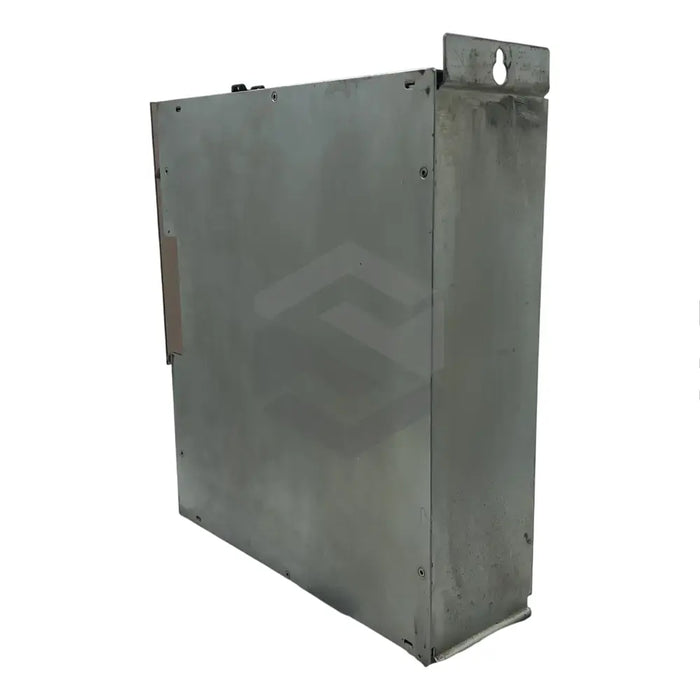

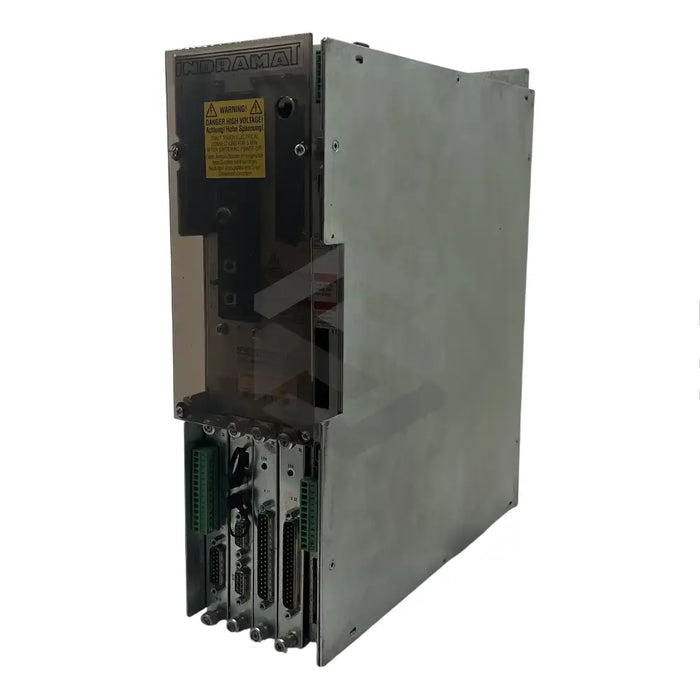

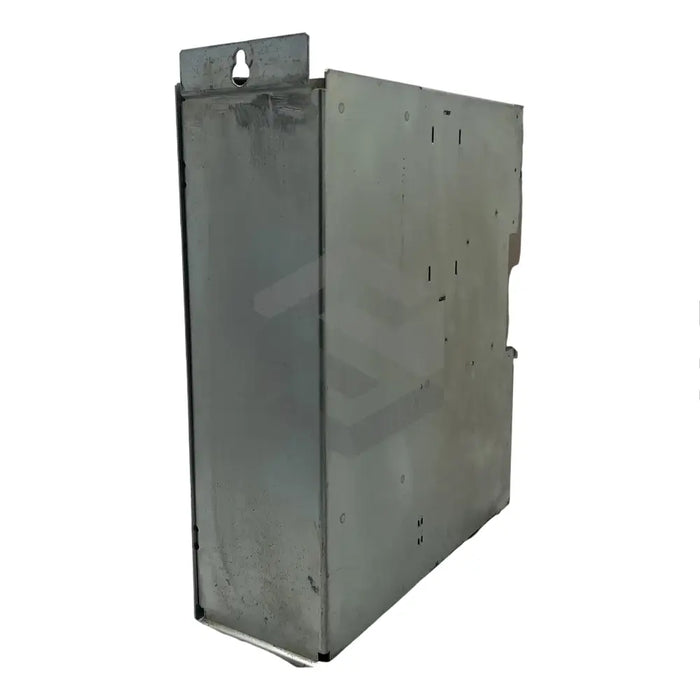

C image of DDS02.2-W015-BE95-01-FW | Main (Front Left)

DDS02.2-W015-BE95-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth Indramat's DDS02.2-W015-BE95-01-FW is an industrially robust motion control device. This 7.5kg drive controller features a 15 amp peak current, 300 volt DC bus voltage, and interfaces with a single-axis position control module. The controller utilizes an internal forced-air cooling system to regulate temperature, with ideal operability parameters within 0 to +45 degrees Celsius and 95% humidity. The DDS02.2-W015-BE95-01-FW is compatible with MDD, LAR, and MKD AC motors, useful in a diverse range of machinery from robotics to packing equipment. The controller is both EMC compliant and features IP20 protection certification. It also incorporates five customizable module slots labeled U1-U5 for varying usage requirements. Optimal performance is maintained at installation heights below 1000 meters above sea level, with the device’s continuous operating current at 15 A, and allowable ambient air humidity at or below 25 g/m3.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

DDS02.2-W015-BE95-01-FW Drive Controller

Weight

7.5 kilos

Peak Current

15 Amps

DC Bus Voltage

300 Volts

Temperature Adjustment

Forced Air

Power Supply Requirement

24 V (Direct Current)

Operation Parameters

0 to +45 degrees Celsius, 95 percent humidity

Maximum Installation Height

1000 meters

Power Output

Decreases beyond 1000 meters

Use with Motors

MDD, LAR, MKD AC motors

Beneficial Uses

Machine tools, Textile, Printing and Packing equipment, Robotics and Handling devices

EMC Compliance

Yes

Protection Certification

IP20

Module Slots

Five (U1 - U5)

Continuous Current

15 A

Maximum Allowed Air Humidity

Less than or equal to 25 g/m3.
