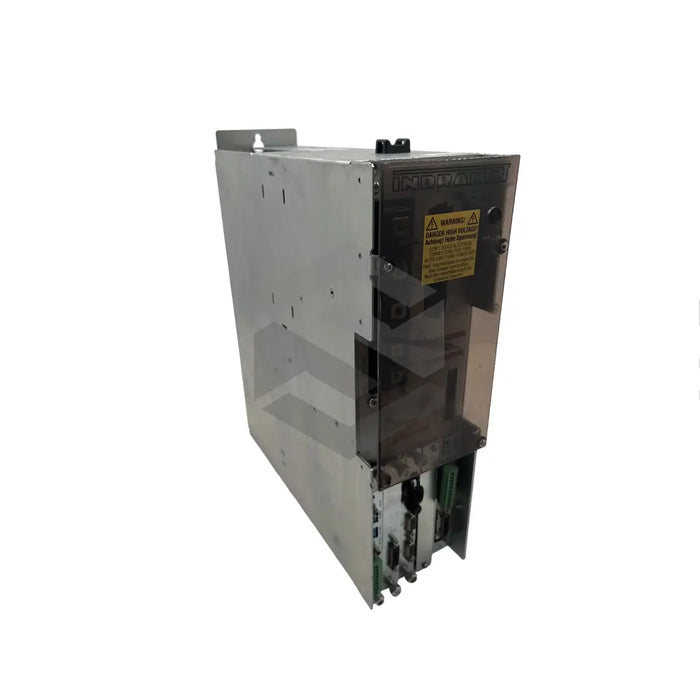

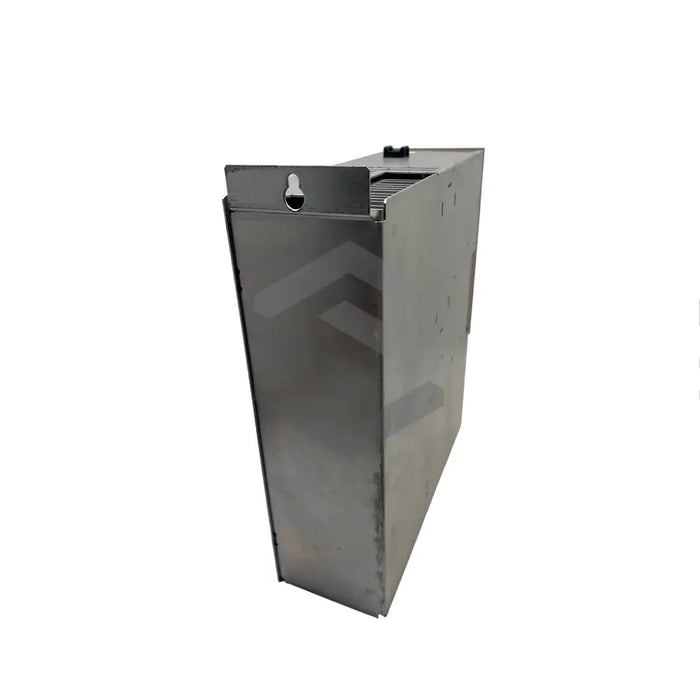

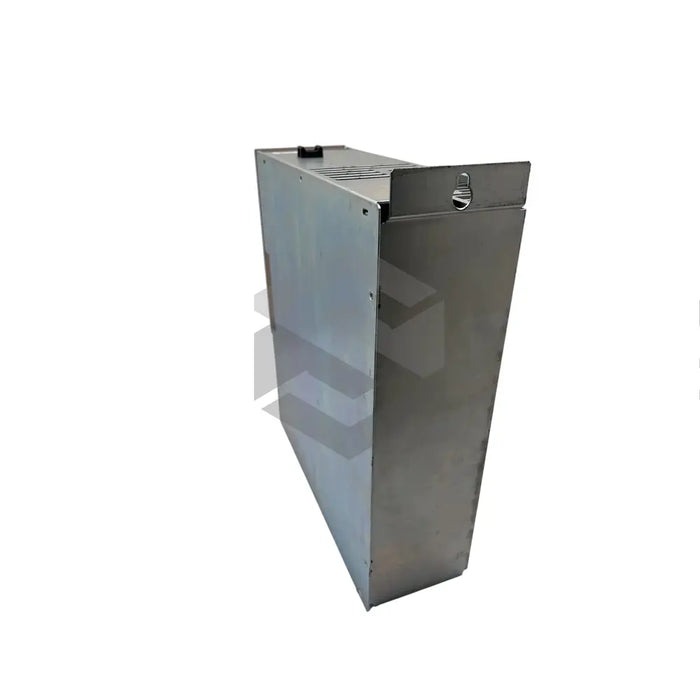

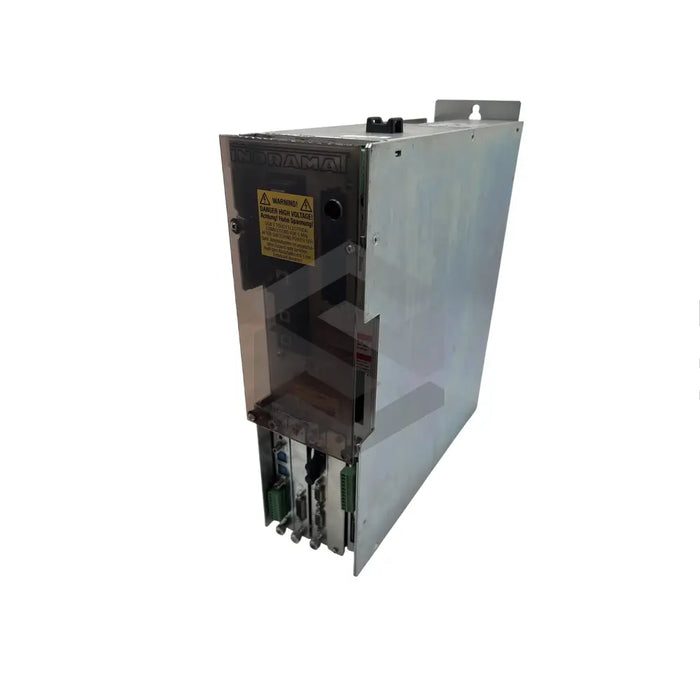

S image of DDS02.2-W015-BT20-01-FW

DDS02.2-W015-BT20-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.2-W015-BT20-01-FW, a drive controller from Bosch Rexroth Indramat, is designed to operate with synchronous, inductance linear, synchronous linear, and inductance AC motors. Ideal for robotics applications, the controller requires a regulated 24VDC power supply. It must be securely installed, transported, and stored, with particular attention given to the earth wire connection. Safety measures, including a waiting period after switching off and an emergency stop circuit, should be implemented to ensure accident-free operation. The device conforms to DIN 50178 protection standards against indirect contact and operates optimally within an ambient temperature range of 0°C – 45°C. With a weight of 7.5kg, the controller limits the penetration of solid objects larger than 50mm, and must be installed vertically with appropriate clearance. Connection features include plugin clamps and DC bus conductor rails for adjacent rail coupling. The unit comes with a one-year global backup support service.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DDS02.2-W015-BT20-01-FW

Application

Works with synchronous, inductance linear, synchronous linear and inductance AC motors, Suitable for robotics-related applications

Connection

Uses a power cable and a feedback cable

Power Supply

Regulated 24VDC voltage

Assembly and Installation

Requires proper assembly, installation, transportation, storage and regular checks on earth wire

Discharging Capacitors

Should be worked on only few minutes after switch off

Safety Standards

Protected against indirect contact as per DIN 50178

Emergency Feature

Power connection isolated through an emergency stop circuit for protection against unintentional startups

Commercial Use

Intended to be installed only in commercial machinery

Operating Temperature

Operates at an ambient temperature of 0°C to 45°C

Weight

Approximately 7.5kg

Protection

Against penetration of solid objects of diameter more than 50mm

Energy Loss

Based on the continuous current of the connected motor in standstill mode

Installation Orientation

Vertical

Clearance Distance

At least 80mm above and below inside the control cabinet

Connection Features

Uses plugin clamps for signal lines, Can be connected to adjacent rail using DC bus conductor rails

Shipping

Able to dispatch to worldwide destinations.
