S image of DDS02.2-W015-BT27-01-FW

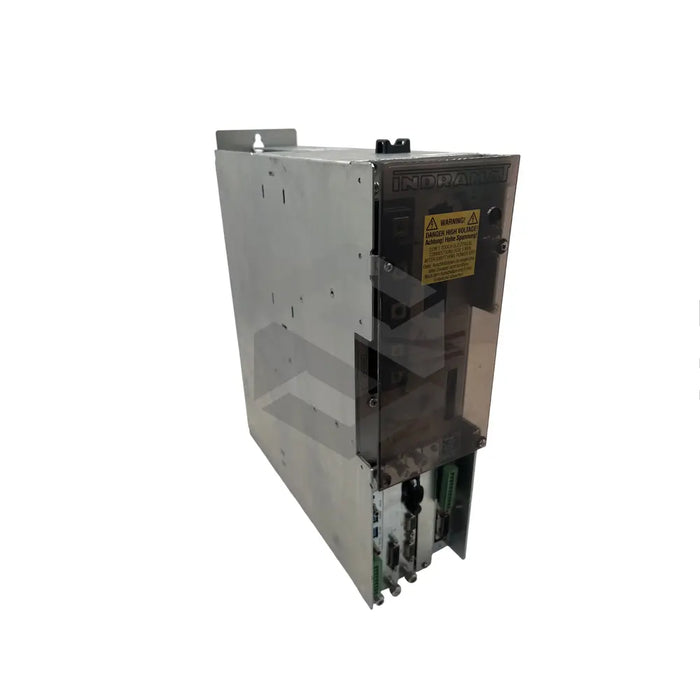

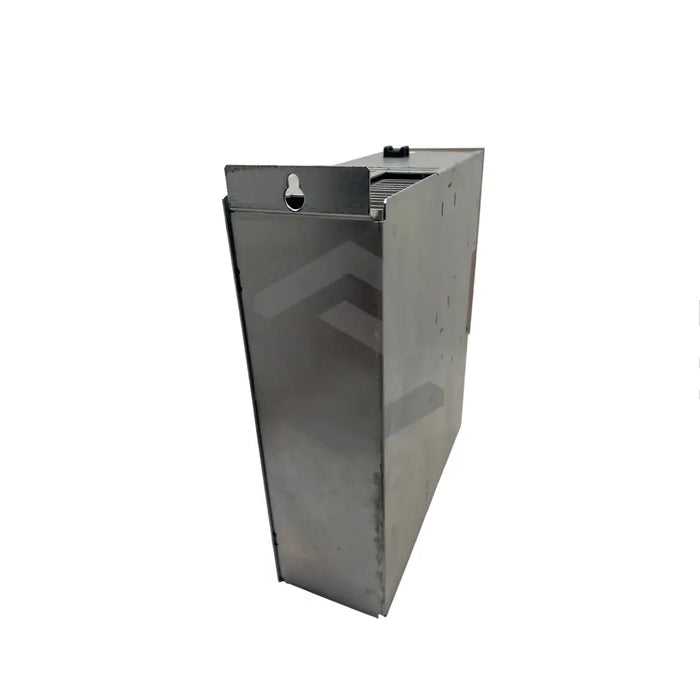

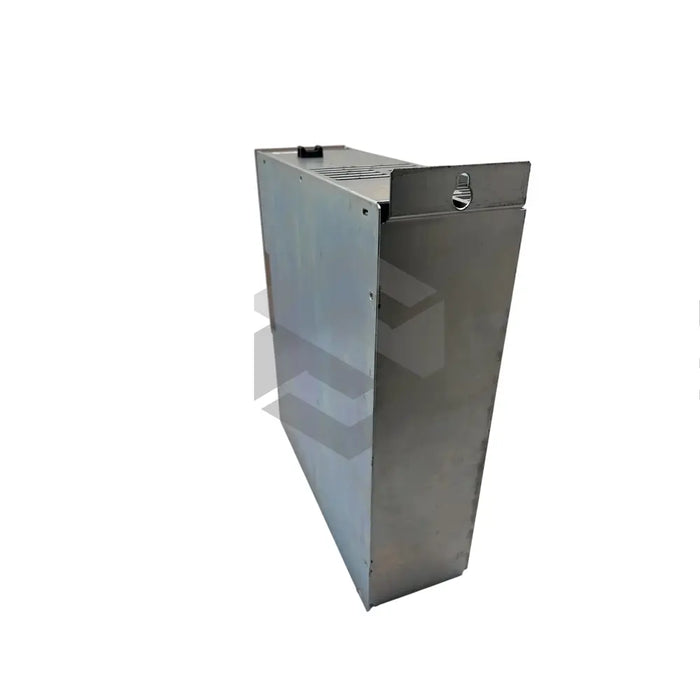

DDS02.2-W015-BT27-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth DDS02.2-W015-BT27-01-FW is a 2-version code drive controller, engineered with safety regulations in mind. It is only functional with manufacturer-approved spare parts, and requires continuous grounding for all electrical components. The controller comes with a motor that provides both digital servo and resolver feedback. Heat technology is employed for cooling, although additional air conditioning may be required. The firmware and drive parameters are stored using a software module. For quicker identification of replacements upon failure, a type plate with the type code is included. The product draws 500mA at 24VDC, and can operate up to temperatures of 55°C, having no water penetration protection. Placement is best near the power supply to maximize output and current rating. Connections are made via A1, A2 and A3 terminals using M6 screws with 5Nm tightening torque. The device permits shielded lines for analog signals and features an RS 232 interface for PC or VT-100 terminal connections.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

DDS02.2-W015-BT27-01-FW Drive Controller

Version Code

2

Safety Regulation Compliance

Mandatory

Spare Parts

Only Manufacturer Approved

Earth Wire Connection

Mandatory for all Electrical Components

E-Stop Switch

Must be Operational Before Starting

Motor Feedback

Digital Servo and Resolver

Cooling Technology

Heat Dissipation within Cabinet

Air Conditioning Requirement

Possible

Software Module

for Firmware and Drive Parameters Storage

Type Plate

Present for Part Identification

Mounting

Faceplate and Rating Plate Removal During Process

Current Consumption

500mA at 24VDC

Maximum Operating Temperature

55°C with Derated Data

Water Penetration Protection

None

Positioning Guideline

Close to Power Supply for Highest Output Drive

Terminals

A1, A2, A3

M6 screw Torque

5Nm

Analog Signals Line

Must be Shielded

Interface

RS 232 at X3 Connection Point for PC or VT-100 Connection
