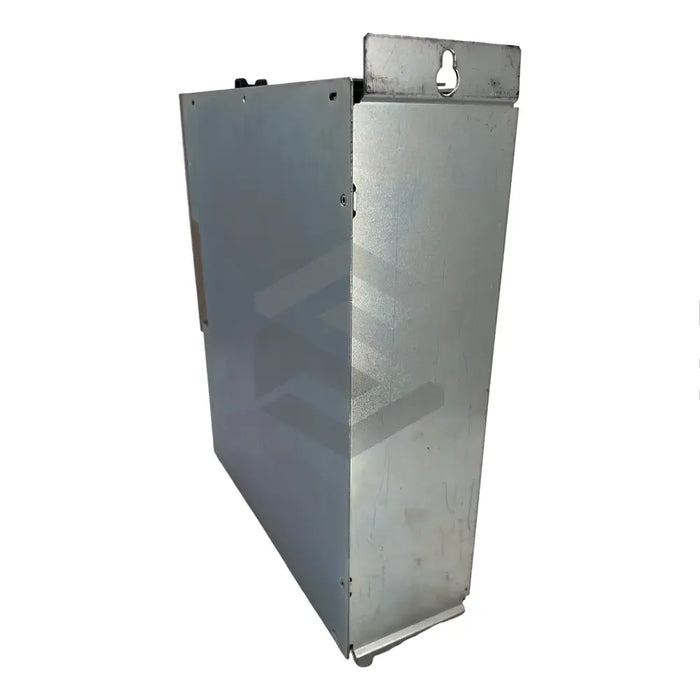

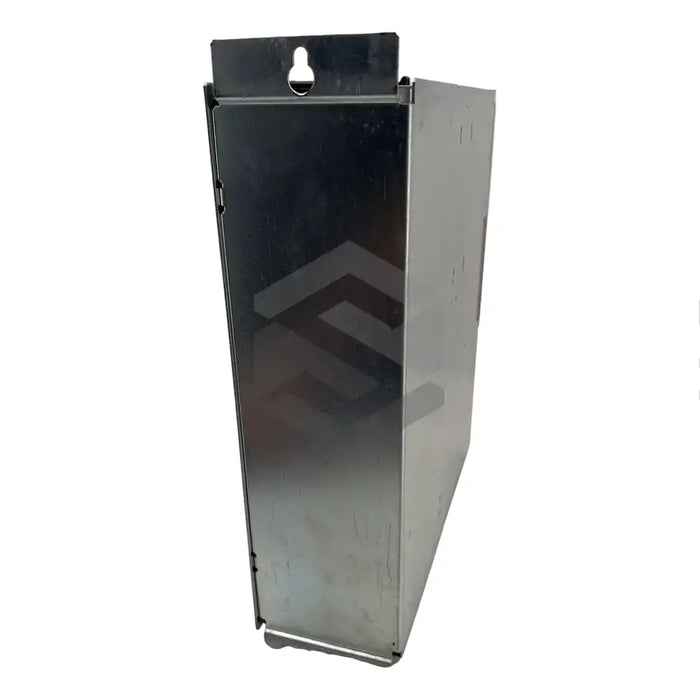

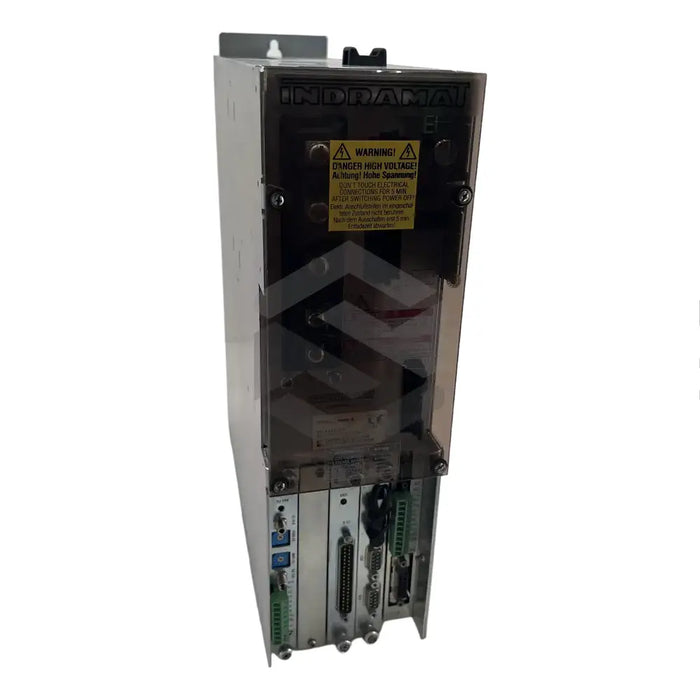

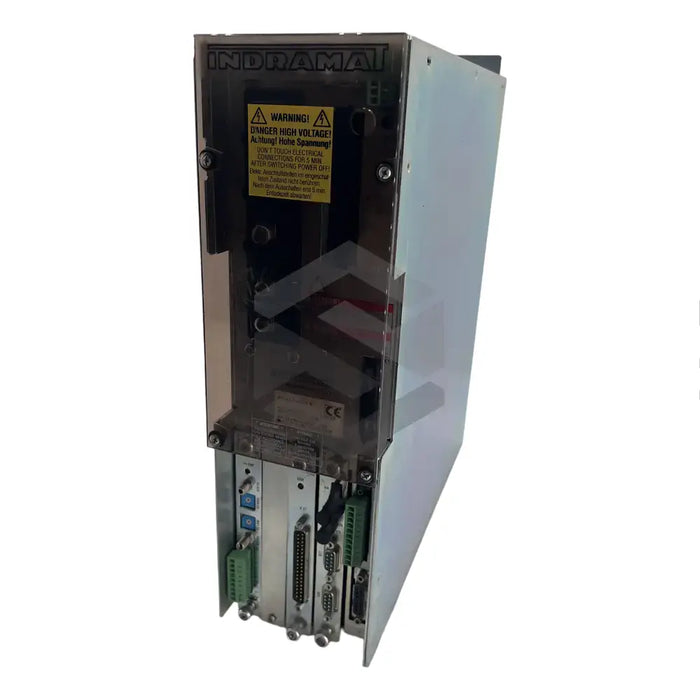

DDS02.2-W050-BE24-02-FW

Request a quote
Bosch Rexroth Indramat's DDS02.2-W050-BE24-02-FW is a drive controller unit, part of the versatile DDS series. This specific model combines with AC servo and main drives to create compact drive packages operating on a single supply unit. Ideal for use in textile, robotics, and handling machines, the drive controller functions as a high-response drive when paired with AC servo motors. It operates via heat technology cooling within the control cabinet that also houses a supply unit requiring a larger, air conditioned space. The drive controller model can connect to any Indramat supply unit operating on a regulated DC 24V voltage. The SERCOS input module aids in reference switch evaluation, limiting switch travel range, and sensor inputs. With a rated current of 50A and a DC bus voltage of 300V, it can connect to motors with digital servo feedback and resolver feedback while operating in maximum ambient temperatures of 45oC and installation heights of up to 1000m.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Product Line: DDS Series
  • Product Model: DDS02.2-W050-BE24-02-FW
  • Product Version: Version 2
  • Cooling Mechanism: Heat Technology
  • Supply Unit: Regulated DC 24V voltage
  • Plug-in Module: SERCOS
  • Inputs: Reference Switches, Travel Range Limit Switches, Sensor Inputs
  • Communication Method: Fiber Optic Cable
  • Rated Current: 50A
  • DC Bus Voltage: 300V ±15%
  • Feedback Options: Digital Servo, Resolver Feedback
  • Max Ambient Temperature: 45C
  • Max Installation Height: 1000m
  • Heat Dissipation Method: Within Control Cabinet
  • Control Cabinet Requirement: Large With Air Conditioning
  • Application: Textile Machines, Robotics, Handling Machines
