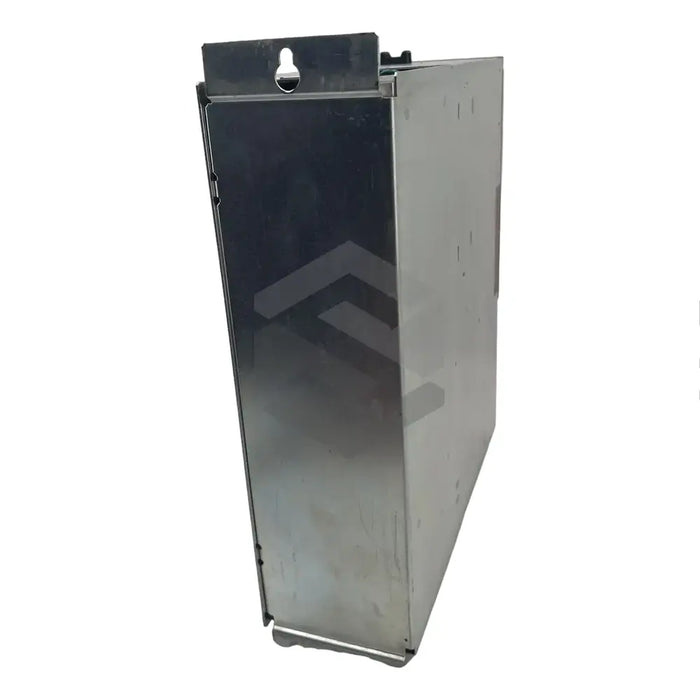

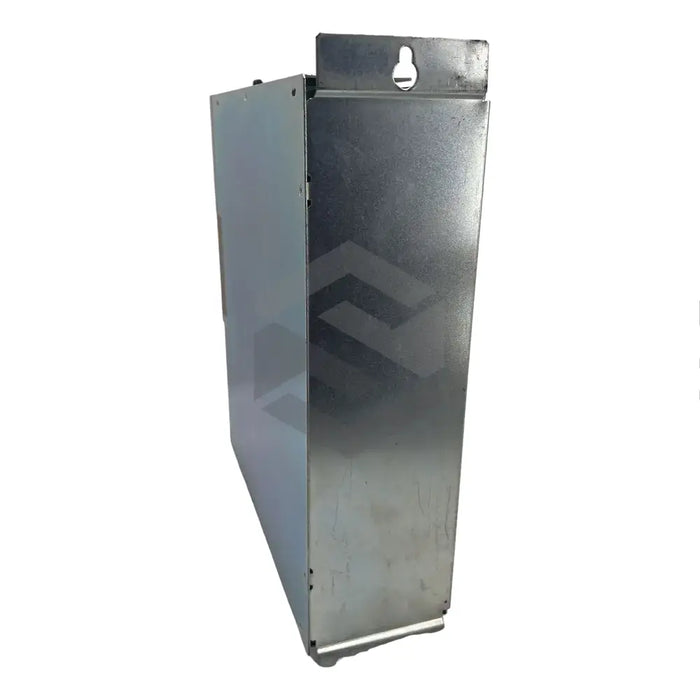

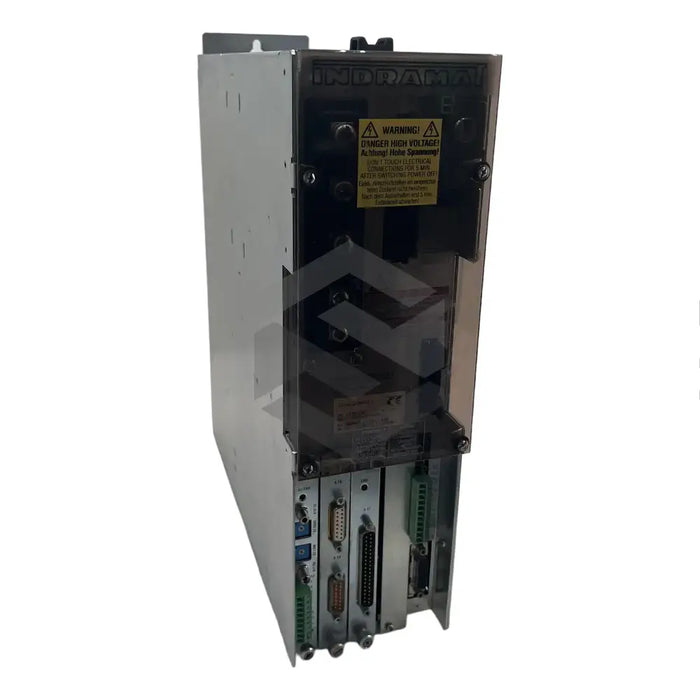

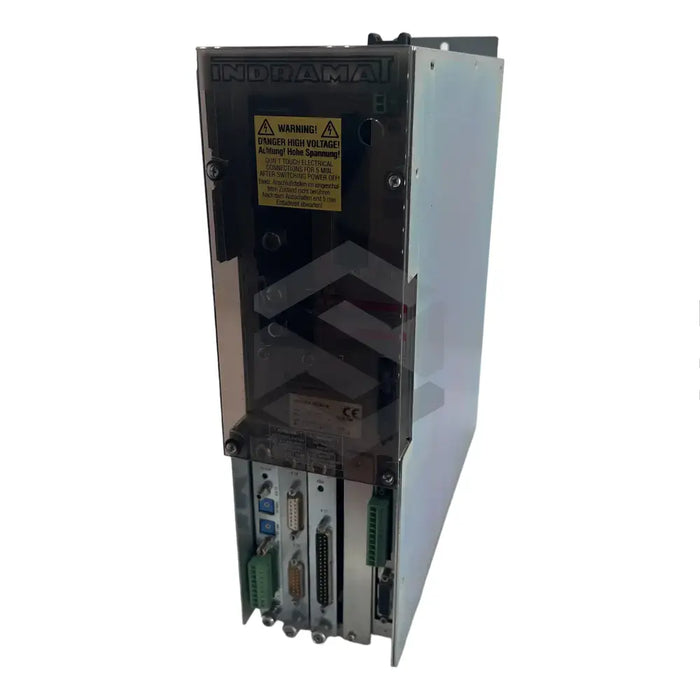

product Main (Front Left) image of DDS02.2-W050-BE30-01-FW

DDS02.2-W050-BE30-01-FW

by Bosch Rexroth Indramat
$5,866.09 - $5,866.09
$5,866.09
$5,866.09 - $5,866.09
$5,866.09
Available, Shipping Varies
The DDS02.2-W050-BE30-01-FW by Bosch Rexroth Indramat forms part of their cost-effective and efficient motion control range, optimising industrial processes. A professionally installed drive controller, it operates on a 24V DC and effectively controls the location and speed of a servo motor. It tolerates temperatures up to +45°C and an atmosphere with up to 95% relative humidity, while its storage area should have less than 25 g/m3 absolute humidity. The controller cooperates with digital and resolver servo feedback connection and also includes a SERCOS communication interface. The model, which weighs 7.5 kgs, runs on a 300-volt direct current bus voltage and uses 150 milliamps from a -15-volt direct current source. Its rated compliance ensures optimized operation, and it is suitable for a range of applications, including machine tools, textiles, robotics, and material handling equipment.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: DDS02.2-W050-BE30-01-FW
  • Product Line: Drive Controllers
  • Weight: 7.5 kilograms
  • Operational Temperature: up to +45°C
  • Relative Humidity: up to 95%
  • Absolute Humidity: less than 25 g/m3
  • Elevation: up to 1000 MSL
  • Input Voltage: 24 V DC
  • Applications: Machine tools, Textiles, Robotics, Material handling equipment
  • Servo Feedback: Digital and Resolver
  • Communication Module: SERCOS Interface
  • Bus Voltage: 300 volts DC
  • Power Consumption: -15 volts DC at 150 milliamps
  • IP Rating: IP20
  • EMC Compliance: Yes
  • Peak Current Rating: 50 A
  • Continuous Current Rating: 50 A
