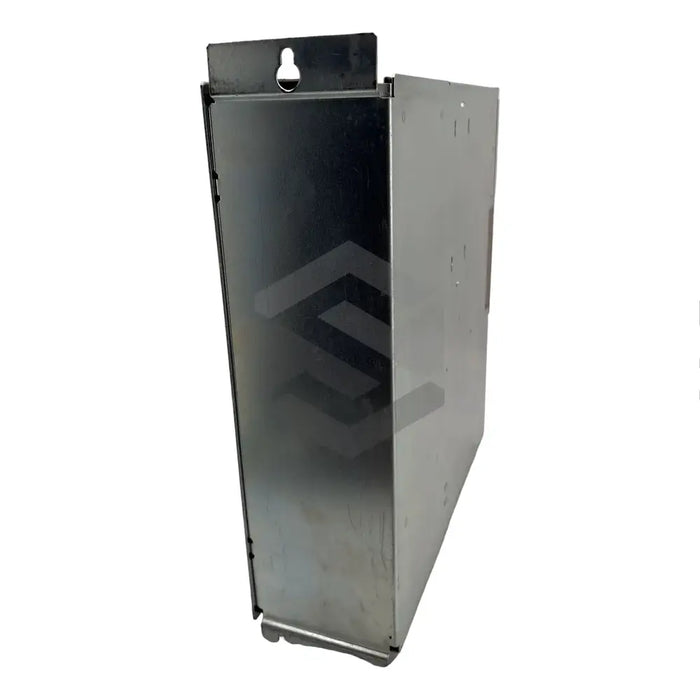

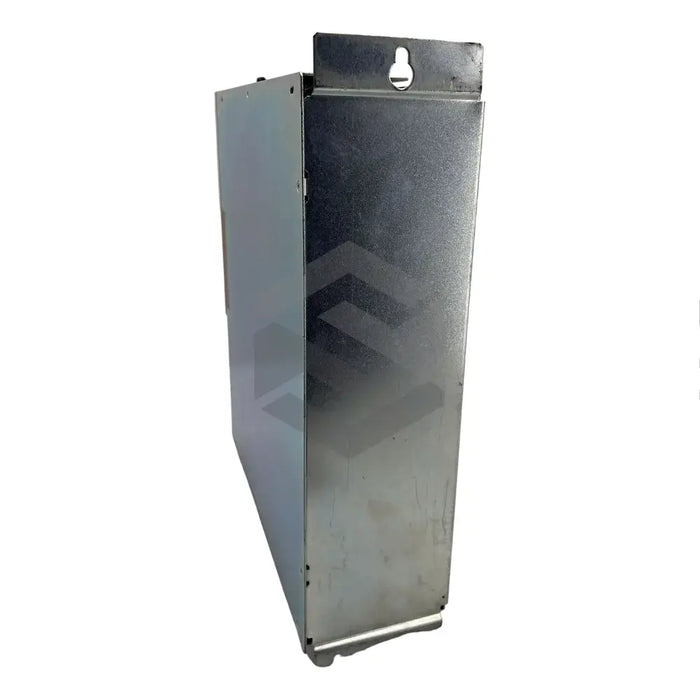

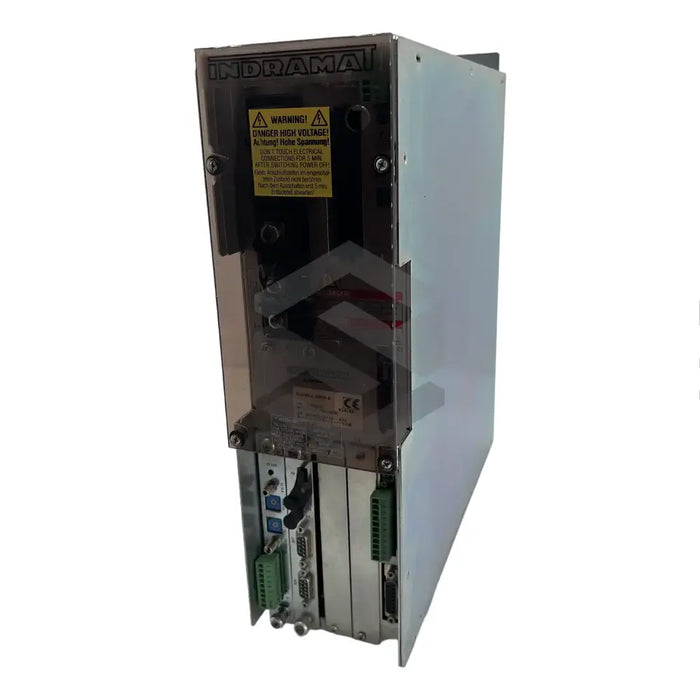

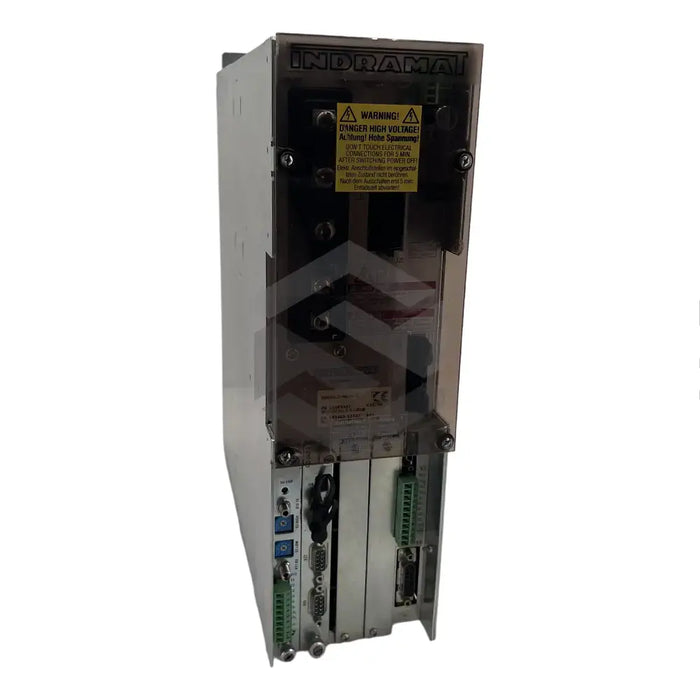

C image of DDS02.2-W050-BE41-02-FW | Main (Front Left)

DDS02.2-W050-BE41-02-FW

by Bosch Rexroth Indramat
$8,063.29 - $8,063.29
$8,063.29
$8,063.29 - $8,063.29
$8,063.29

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat DDS02.2-W050-BE41-02-FW is a drive controller designed with a SERCOS interface for command communication through a fiber optic cable. It includes a ready-to-operate Bb contact and is compatible with SERCOS controls. For storage and transportation, ensure the unit remains dry and is kept in a dust-free, shock-free environment. The controller can utilize a feedback cable up to 75m in length and its start lockout could be activated by applying 20-30VDC voltage between the AS+ and AS- input terminals. The product's optimal performance is achieved at a maximum elevation of 1,000m. With a maximum allowed absolute humidity of 25g/m3, the device's L+, L- and PE terminals should be tightened with M5 screws using a torque of 3Nm. Always disconnect the controller from the power source before performing maintenance tasks on its electrical components, and wait at least five minutes to ensure capacitors are discharged. The product is backed by a one-year support.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DDS02.2-W050-BE41-02-FW

Interface

SERCOS

Communication Cable

Fiber Optic

Installation Requirement

Large Control Cabinet

Transport Condition

Dry State

Storage Conditions

Dry, Shock-Free, Dust-Free Environment

Ready to Operate State Signal

Bb Contact Closed

Feedback Cable Maximum Length

75m

Start Lockout Activation

20VDC to 30VDC Voltage Between AS+ and AS- Input Terminals

Operational Directive Adherence

National EMC Directives

Pre-Work Safety Measure

Disconnect from Voltage Source/Mains if Over 50V Voltage

Post-Off Waiting Period

5 Minutes for Capacitors to Discharge Completely

Maximum Installation Elevation

1000m above sea level

Relay Coil Power Rating (Control Inputs)

1.5W

Maximum Allowed Absolute Humidity

25g/m3

Terminal Tightening Torque (L+, L-, PE)

M5 Screws with 3Nm Tightening Torque
