S image of DDS02.2-W050-BE98-01-FW

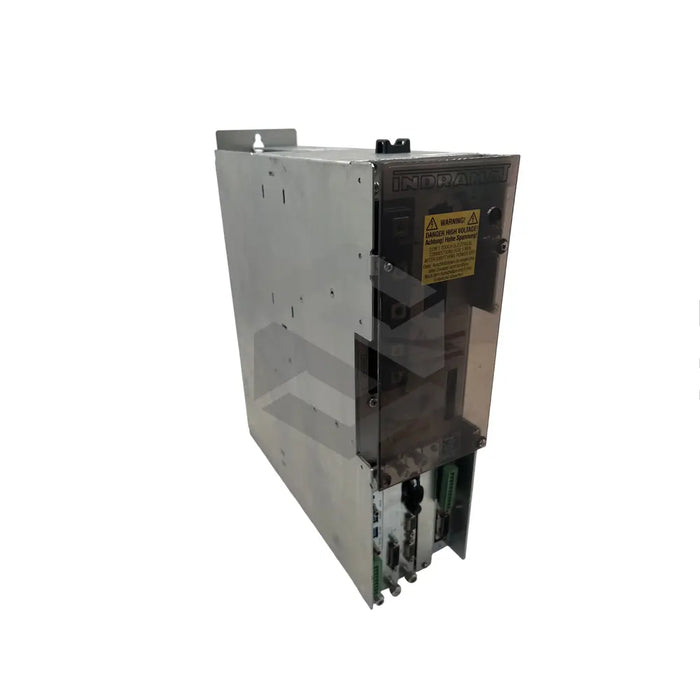

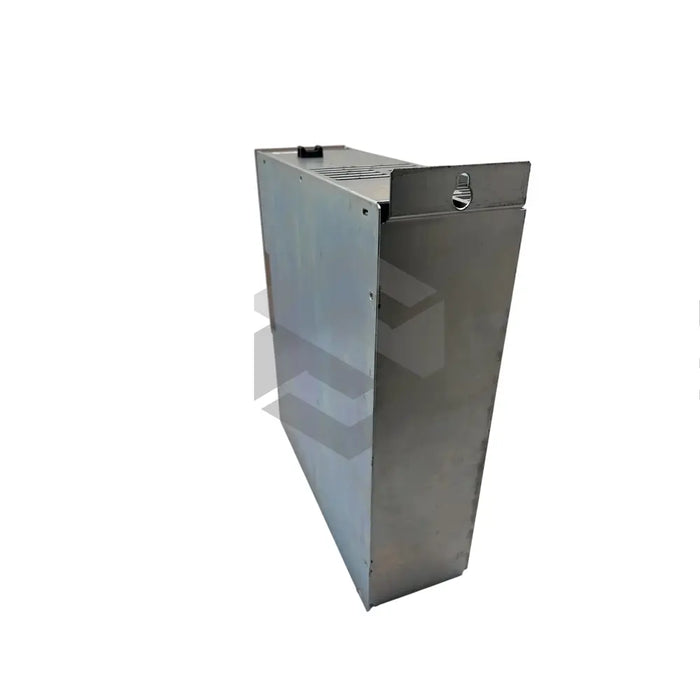

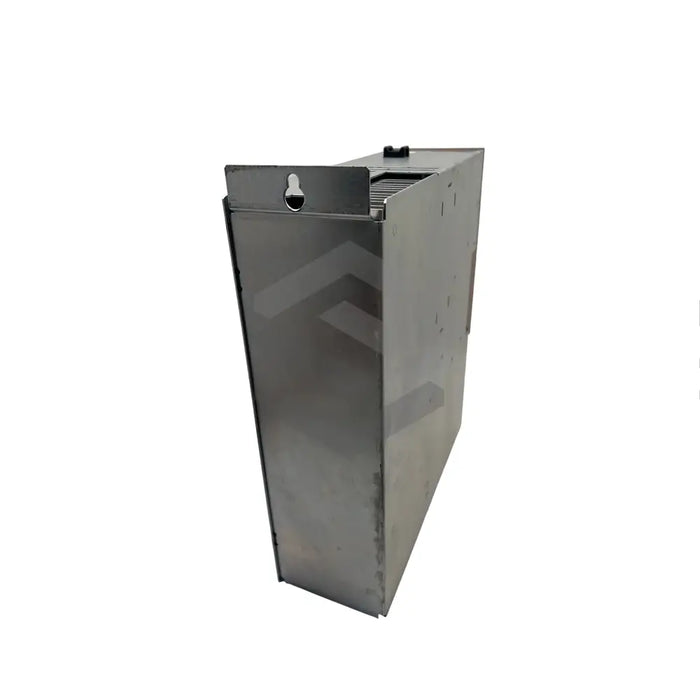

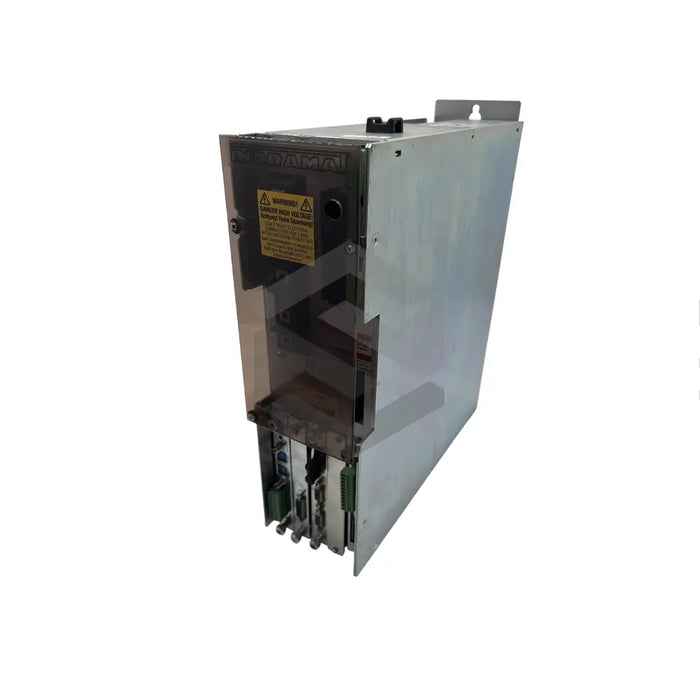

DDS02.2-W050-BE98-01-FW

by Bosch Rexroth Indramat
$7,151.72 - $7,151.72
$7,151.72
$7,151.72 - $7,151.72
$7,151.72

In Stock, Ships 1 - 3 Days

Produced by Bosch Rexroth Indramat, the DDS02.2-W050-BE98-01-FW is a trusty and cost-effective industrial automation device. It is distinctive for its feature of releasing the majority of energy immediately outside the control cabinet. This versatile model can be adapted to various driving situations and includes software for drive instructions, parameters, and other necessary firmware. It features an IP20 rated DDS02.2 drive controller, allowable peak and continuous current of 50 amps, and operates on 300-volt DC bus voltage with a 15% tolerance. For accuracy in speed and position adjustments of a connected servo motor, it provides digital and revolver motor feedback. This EMC-certified model prevents excess radio frequencies while not suitable for explosive environments. It utilizes air cooling to prevent overheating and must be operated by a qualified technician. The model, with a SERCOS interface, should be used at temperatures between 0 to +45 degrees Celsius and a maximum absolute humidity of 25 g/m3. The firmware needs to be bought separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive controllers

Model Number

DDS02.2-W050-BE98-01-FW

Energy Discharge

Outside the control cabinet

Rated IP

20

Continuous Current Limit

50 amps

Peak Current Limit

50 amps

Software Features

Drive instructions; Drive parameters; Firmware

Weight

7.5 kilograms

Bus Voltage

300-volt direct current; +/-15% tolerance

Feedback Type

Digital and revolver motor feedback

Certifications

EMC

Usage Restrictions

Non-explosive environments; Must be operated by a qualified technician

Interface Type

SERCOS

Operating Temperature

0 to +45 degrees Celsius

Maximum Absolute Humidity

25 g/m3

Cooling Method

Air control cabinet using air as a coolant

Firmware

Not included; Must be purchased separately.
