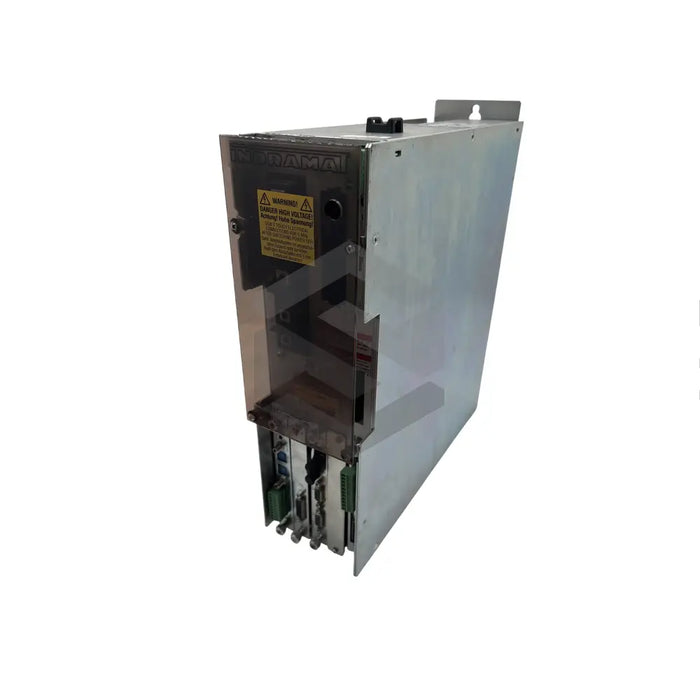

S image of DDS02.2-W100-BE05-03-FW

DDS02.2-W100-BE05-03-FW

by Bosch Rexroth Indramat
$8,035.41 - $8,035.41
$8,035.41
$8,035.41 - $8,035.41
$8,035.41

In Stock, Ships 1 - 3 Days

The DDS02.2-W100-BE05-03-FW, a drive controller produced by Bosch Rexroth Indramat, utilizes a SERCOS interface for command communication. Featuring a DC bus voltage of 300V +/-15% and a current consumption of 500mA at 24VDC, it operates between 0°C and 45°C. This 7.5kg unit, which is not water-resistant, should be positioned near the power source when linked to multiple controllers using a single power supply. Significant clearance - at least 80mm - is needed above and below the controller in the control cabinet. Coming in at a total length of 355mm, the controller works with various AC motors from the same manufacturer and requires adequate cooling time post-shutdown for full capacitor discharge. Use caution to avoid hardware damage or dangerous movement due to software errors. Primarily suited for robotics, it should not operate near radio or high-frequency equipment, and careful handling is essential for successful installation and function.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DDS02.2-W100-BE05-03-FW

Interface

SERCOS

DC Bus Voltage

300V +/-15%

Current Consumption

500mA at 24VDC

Operating Temperature

0°C to 45°C

Weight

7.5kg

Waterproof

No

Placement

Near power supply when used with multiple controllers

Clearance Distance

80mm above and below in control cabinet

Length

355mm

Routing

Separate signal and supply lines

Ready-to-operate Indicator

Bb contact in closed state

Transportation

Should not be tipped or dropped

Motor Compatibility

AC motors of the same manufacturer

Terminal Connections

L+, L-, and PE terminals connected using M5 screws with 3Nm torque

Cooling Time

Requires sufficient time for capacitors to discharge after being switched off

Movement

May move dangerously due to software errors or defective components in connected motor

Suitable Use

Robotics

Operation Recommendations

Avoid proximity to radio, remote-control and high-frequency equipment

Handling Recommendations

Use suitable lifting and mounting equipment.
