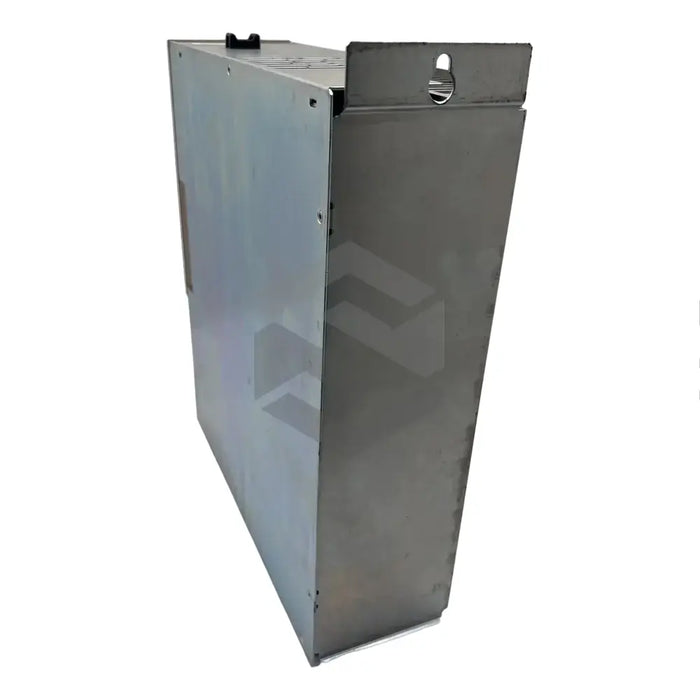

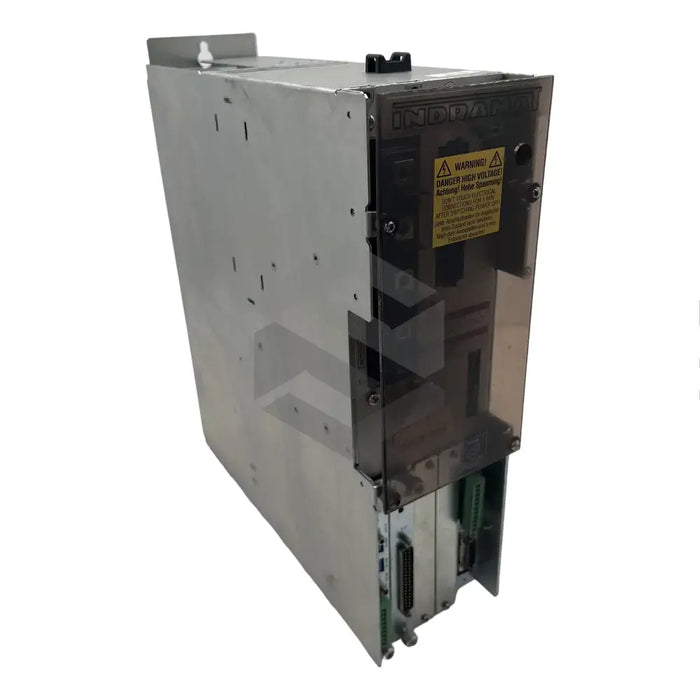

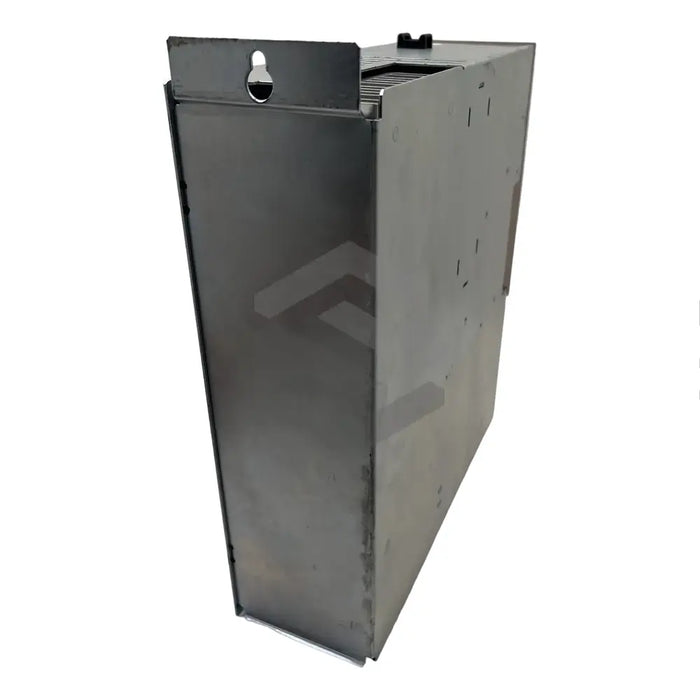

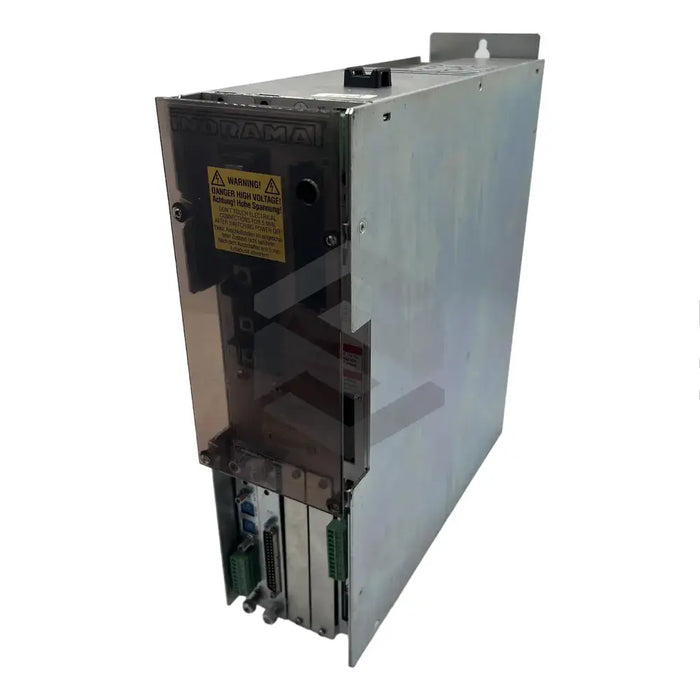

C image of DDS02.2-W100-BE23-01-FW | Main (Front Left)

DDS02.2-W100-BE23-01-FW

by Bosch Rexroth Indramat
$8,030.77 - $8,030.77
$8,030.77
$8,030.77 - $8,030.77
$8,030.77

In Stock, Ships 1 - 3 Days

The DDS02.2-W100-BE23-01-FW, produced by Bosch Rexroth Indramat, is a configurable drive with a modular concept for convenient combination with AC and main servos. This cost-effective package allows efficient operation between 0-45 degrees Celsius and is capable of storage from -30 to 85 degrees Celsius. Its environmental considerations involve maximum 95% relative humidity, 25g/m3 absolute humidity, and installation elevation up to 1000 meters above sea level. The protection category is IP 20. It can complement AC motors, suitable for applications such as industrial robotics and packaging machines. The drive has a SERCOS interface, digital servo, resolver motor feedback, and a 100A rated current. The cooling method is heat technology within the control cabinet, and it needs to be placed in an IP 10 rated terminal box. It is recommended to position the unit with the highest output adjacent to the supply unit.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS02.2-W100-BE23-01-FW

Modular Concept

Flexible combination with AC and Main Servo

Temperature Range for Operation

0 to 45 degrees

Storage Temperature Range

-30 to 85 degrees

Relative Humidity

95% permissible

Absolute Humidity

25g/m3

Installation Elevation

1000 meters above sea level

Protection Category

IP 20

Compatible Motors

MDD, MKD, LSF, LAR, among others

Supply Connection

DC 24V regulated voltage or TVM and KDV supply units

Rated Current

100A

Interface

SERCOS interface

Motor Feedback

Digital servo and resolver

Cooling Method

Heat technology within the control cabinet

Mounting Method

Mounting in terminal box meeting IP 10 protection category
