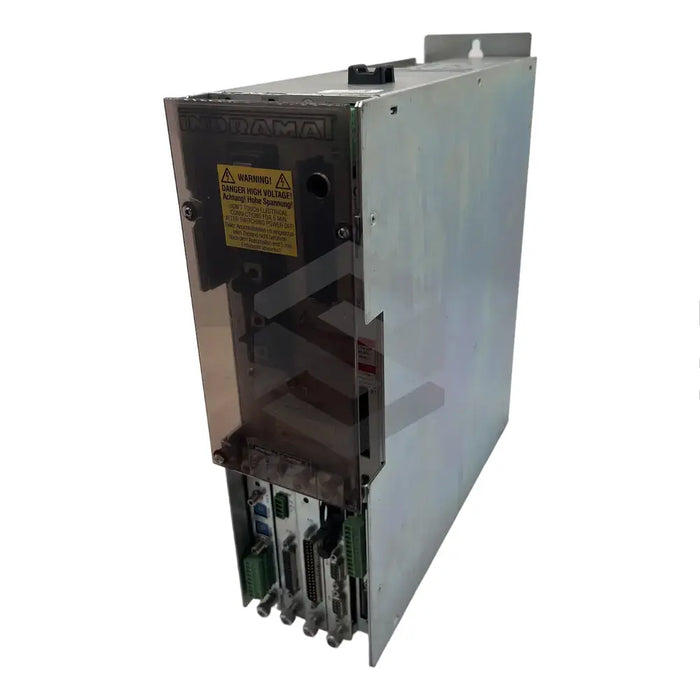

C image of DDS02.2-W100-BE75-02-FW | Main (Front Left)

DDS02.2-W100-BE75-02-FW

by Bosch Rexroth Indramat
$8,035.41 - $8,035.41
$8,035.41
$8,035.41 - $8,035.41
$8,035.41

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's DDS02.2-W100-BE75-02-FW is a highly versatile drive controller that employs both digital and resolver servo feedback. The device integrates a SERCOS interface communication card placed in the U1 slot and a firmware module in the U5 slot. Weighing around 7.5 kilos, the device operates on a direct current bus voltage of 300 volts and requires installation as per manufacturer's guidelines. The DDS02.2 allows the integration with an AC servo and main drive, providing a compact drive unit powered by a single supply unit. With a peak current of 100 A and suitability for locations up to 1000 meters above sea level, the controller exhibits IP20 protection certification offering dust resistance. It dissipates a significant portion of heat externally and operates at a continuous current of 60 A. The device can be powered with a continuous DC 24 V commercial supply, and the maximum operating temperature with rated data reduced is +55°C. The operational conditions should be clean and free of turbulence and dirt.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

DDS02.2-W100-BE75-02-FW

Feedback

Digital and Resolver Servo

Communication Card Slot

SERCOS Interface in U1 slot

Firmware Module Slot

Installed in U5 slot

Weight

7.5 Kilos

Bus Voltage

300-volt direct current

Installation Requirement

As per manufacturer's instructions

Modularity

Can be paired with AC servo and main drive

Functionality

Runs on a single power supply unit

Peak Current

100 A

Placement Altitude

Up to 1000 meters above sea level

Protection Certification

IP20

Heat Dissipation

Dissipates a considerable percentage of heat outside

Continuous Current

60 A

Mounting

In a control cabinet with appropriate protection rate

Power Supply

Compatible with DC 24 V voltage

Maximum Operating Temperature

+55 degrees Celsius with a reduction in rated data

Operation Requirement

Clean, turbulence-free, and dirt-free environment.
